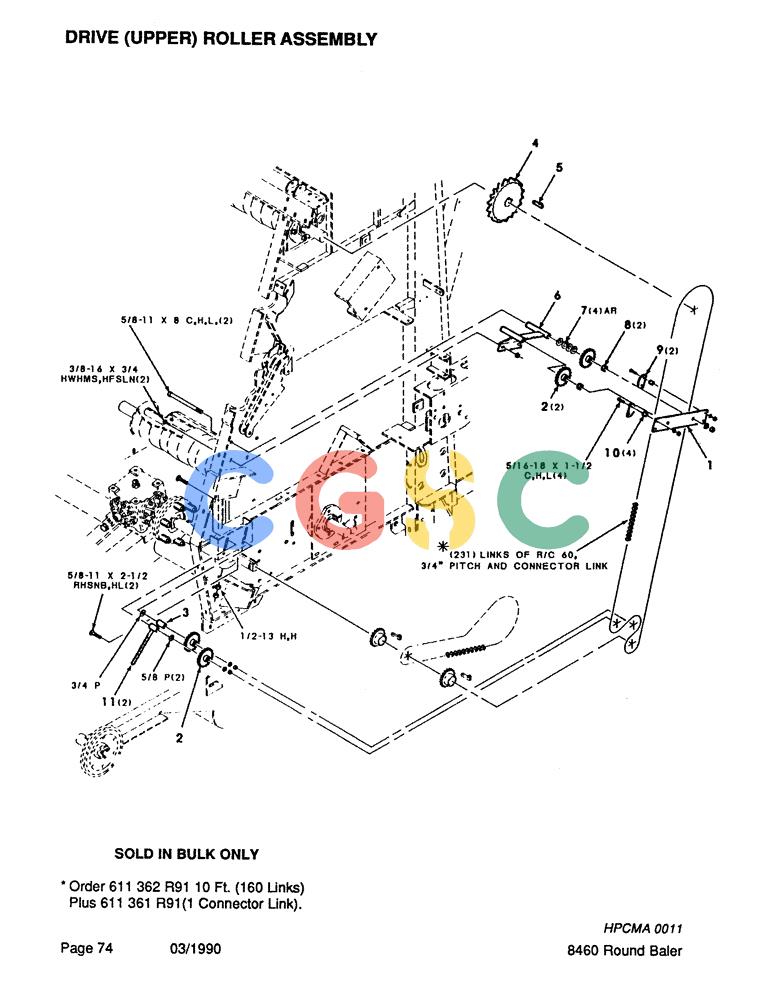

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (074) - DRIVE, UPPER, ROLLER ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700116044
|
[1] |
SUPPORT
|
HFI
- tie, sprocket
|
| 2. |
541857R92
|
[4] |
SPROCKET,15T
|
IH
- idler, 60-P, 15 tooth
|
| 3. |
6229256
|
[1] |
SPACER
|
IH
|
| 4. |
6867659
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 60-P, 40-tooth
|
| 5. |
861088
|
[1] |
BUCKET TOOTH KEY
|
IH
1/2 x 1/2 x 2 gib key
|
| 6. |
700116054
|
[1] |
SUPPORT
|
HFI
- idler
|
| 7. |
52175
|
[4] |
BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L
|
CAS
5/8 x 18 GAUGE MACHINERY BUSHING
|
| 8. |
6529705
|
[2] |
BUSHING
|
CAS
SPACER
|
| 9. |
700116041
|
[2] |
GUIDE
|
HFI
- chain
|
| 10. |
6827794
|
[4] |
SPACER
|
CAS
|
| 11. |
700119665
|
[1] |
BOLT
|
IH
DRAWBOLT
|
| . . |
7701717
|
[4] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
|
CAS
5/16-18 x 1-1/2 C Superseded by part number: 88275
|
| . . |
873836
|
[2] |
BOLT
|
CAS
5/8-11 x 8 C Superseded by part number: 280743
|
| . . |
7870181
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5
|
CAS
5/8-11 x 2-1/2 RHSNB Superseded by part number: 280742
|
| . . |
7883374
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
