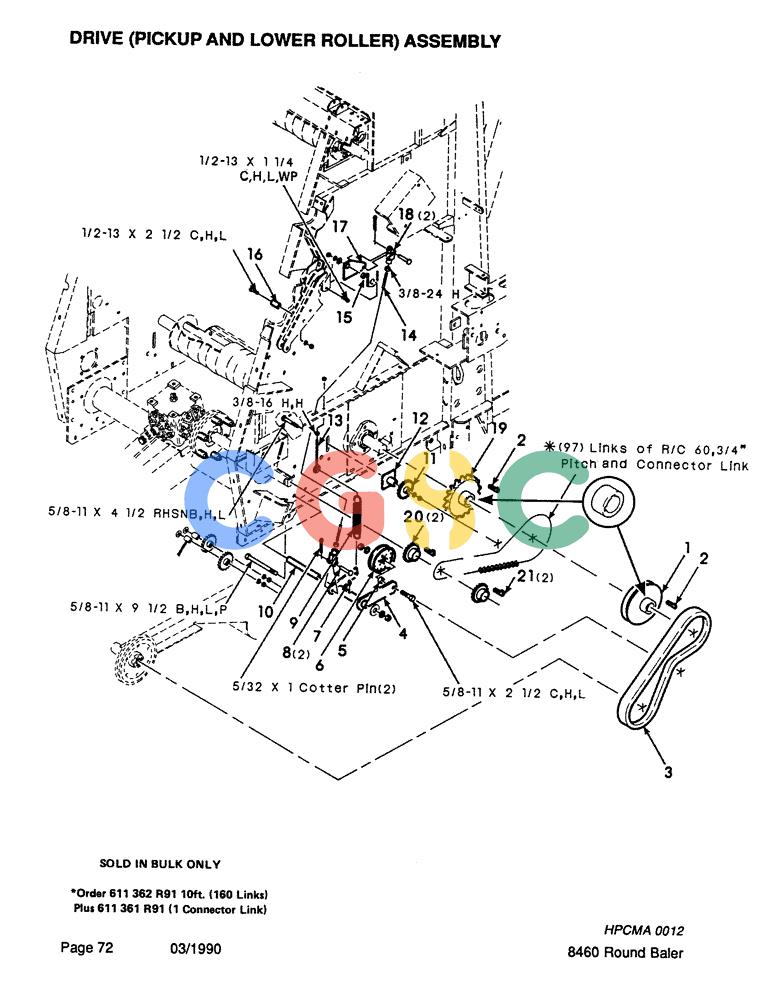

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (072) - DRIVE, PICKUP AND LOWER ROLLER, ASSEMBLY Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (072) - DRIVE, PICKUP AND LOWER ROLLER, ASSEMBLY Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 691 次

Pos.	Part No	Qty	Parts name	Comments
1.	700116042	[1]	SHEAVE	CAS - drive
2.	861088	[2]	BUCKET TOOTH KEY	IH 1/2 x 1/2 x 2 GIB KEY
3.	57596	[1]	BELT	L V-BELT
4.	700116045	[1]	LEVER	HFI - idler
5.	254409	[1]	SPACER	HFI
6.	662958R91	[1]	PULLEY	IH IDLER - flat
7.	77032	[1]	FITTING	CAS 1/4-28 ZERK Superseded by part number: 88775
8.	427-8150	[2]	CLEVIS PIN,1/2" x 1 1/2"	CAS 1/2 x 1-1/2 CLEVIS PIN
9.	858167	[1]	SPRING	L - tension
10.	700116050	[1]	PIVOT ASSY.,25.4 mm OD, 204 mm Length	HFI SPACER
11.	541857R92	[1]	SPROCKET,15T	IH - idler, 60-P, 15-tooth
12.	700116039	[1]	SUPPORT	CAS - idler
13.	51200285	[1]	SCREW	CAS DRAWBOLT
14.	700116052	[1]	ROD,THREADED	IH ROD - link
15.	6582696	[1]	SPACER	CAS BUSHING
16.	6234710	[1]	SPACER	CAS
17.	700116051	[1]	PLATE	HFI - rocker
18.	766691	[2]	SPARE PART	NNA Superseded by part number: 51200163, 51200163, NLS
19.	6867659	[1]	SPROCKET ASSY.	CAS SPROCKET - 60-P, 40-tooth
20.	7850720	[2]	PINION	L SPROCKET - 60-P, 14-tooth
21.	61572	[2]	BUCKET TOOTH KEY	IH 3/8 x 3/8 x 1-3/4 GIB KEY
. .	7701188	[1]	BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5	CAS 1/2-13 x 1-1/4 C Superseded by part number: 87670
. .	413-840	[1]	BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5	CAS 1/2-13 x 2-1/2 C Superseded by part number: 87972
. .	7701659	[1]	BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5	CAS 5/8-11 x 2-1/2 C Superseded by part number: 280233
. .	7773484	[1]	BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5	CAS 5/8-11 x 9-1/2 B Superseded by part number: 413-10152
. .	7870249	[1]	CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5	CAS 5/8-11 x 4-1/2 RHSNB Superseded by part number: 9602207
