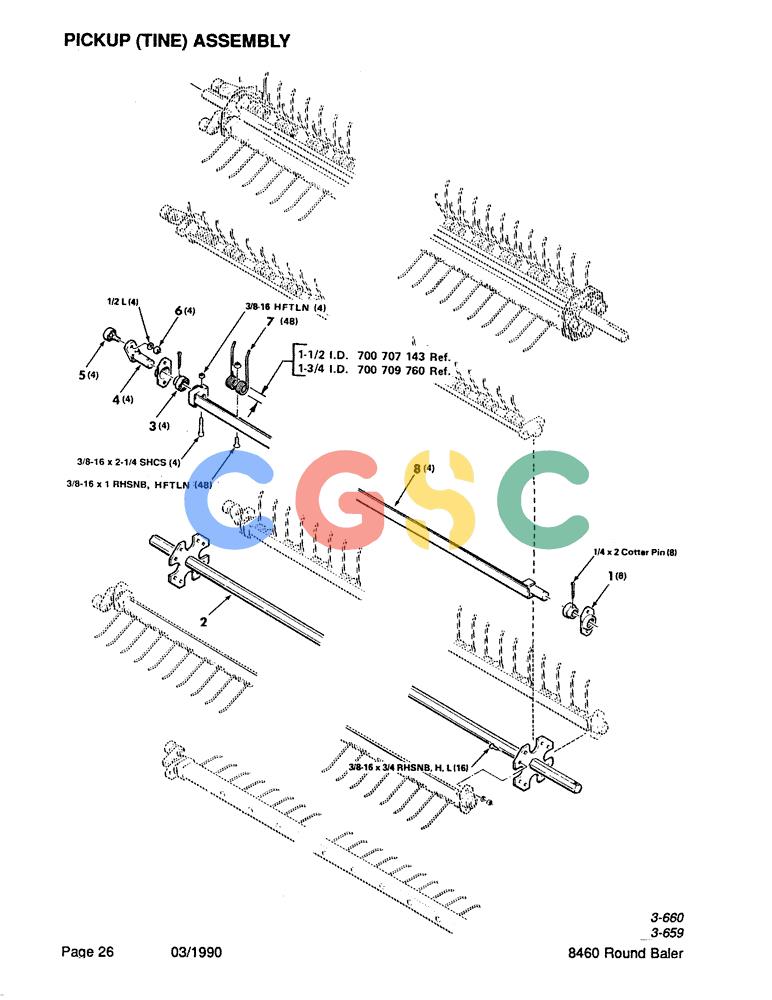

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (026) - PICKUP, TINE, ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
351 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700108622
|
[8] |
FLANGED BEARING
|
L
FLANGE - bearing
|
| 2. |
700114148
|
[1] |
ROTOR
|
HFI
SHAFT - rotor
|
| 3. |
710392
|
[8] |
BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm
|
L
BEARING - spherical Superseded by part number: 84330047
|
| 4. |
700108618
|
[4] |
ARM
|
L
CRANK - tine bar
|
| 5. |
700705612
|
[4] |
CAM FOLLOWER
|
L
BEARING - cam Superseded by part number: 86536275
|
| 6. |
702700045
|
[4] |
LOCK NUT
|
L
- spiralock
|
| 7. |
700707143
|
[48] |
TINE
|
CAS
- double (S.N. CFH0016501 thru CFH0017638) mating part (diameter) for the 700114155 bar. Superseded by part number: 700709760, 86521609
|
| . . |
700709760
|
[48] |
TINE
|
L
TINE - double (S.N. CFH0017639 and on) mating part (diameter) for the 700119965 bar.
|
| 8. |
700114155
|
[4] |
ANGLE
|
CAS
BAR - tine (S.N. CFH0016501 thru CFH0017638) sub 700119965 bar, 700709760 tine (12) and 3/8-16 HFTLN (12) Superseded by part number: 86521609, 700709760, 700119965
|
| . . |
700119965
|
[4] |
ANGLE BAR
|
L
BAR - tine (S.N. CFH0017639 and later) 700709760 tine is mating part.
|
| . . |
7700065
|
[16] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
3/8-16 x 3/4 RHSNB Superseded by part number: 280430
|
| . . |
700047
|
[40] |
BOLT
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
| . . |
701367
|
[4] |
HEX SOC SCREW,3/8"-16 x 2 1/4"
|
CAS
3/8-16 x 2-1/4 SHCS Superseded by part number: 61-636
|
| . . |
88902
|
[52] |
NUT,3/8"-16
|
NH
3/8-16 HCLN (use with flat washer)
|
| . . |
704734
|
[52] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN Superseded by part number: 86521609
|
| . . |
495-11041
|
[36] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
3/8 NP (use with 3/8-16 HCLN only) Superseded by part number: 87016
|
