纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (02-17) - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
426 次

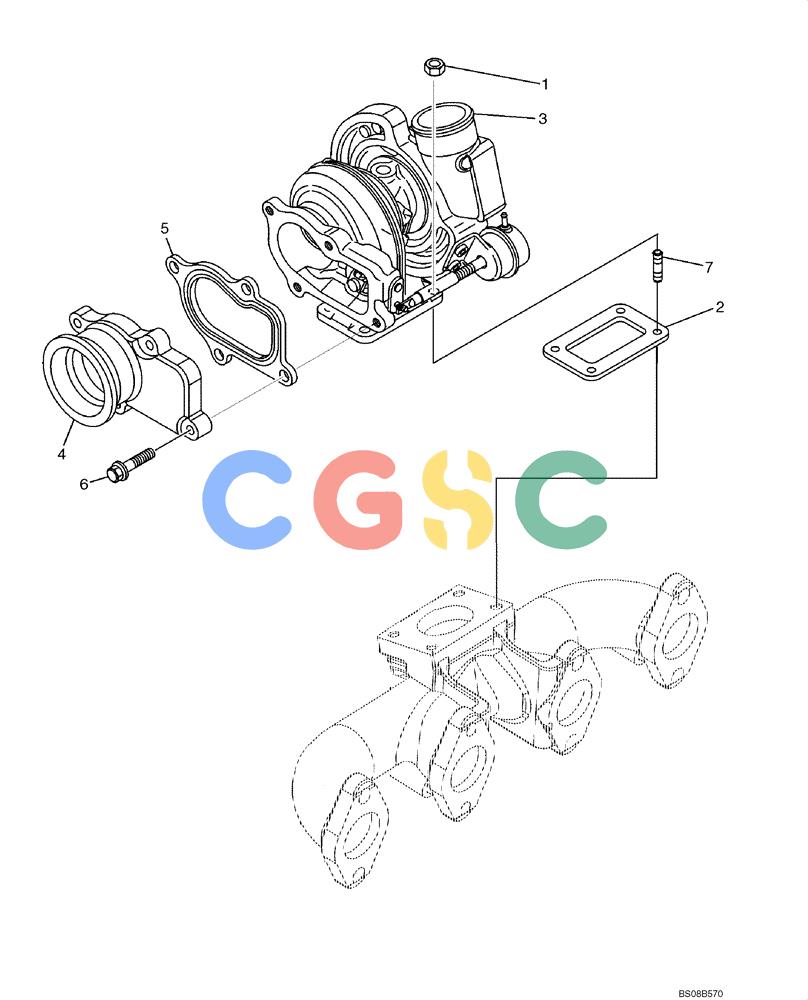

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899118 | [4] | FLANGE NUT,M8 | TOR Superseded by part number: 500322677 |
| 2. | 4895133 | [1] | GASKET,0.5mm Thk | TOR |
| 3. | 2856977 | [1] | TURBOCHARGER | TORTURBOCHARGER |
| . . | 2856977R | [1] | REMAN-TURBOCHARGER | RACD95B Tier 3 |
| . . | 2856977C | [1] | CORE-TURBOCHARGER | RACReturn Number |
| 4. | 2852072 | [1] | OUTLET | TORExit Plate Superseded by part number: 504010786 |
| 5. | 2852071 | [1] | GASKET,0.5mm Thk | TOR |
| 6. | 4898482 | [4] | BOLT,Flng, M8 x 1.25 x 30mm, Cl 10.9 | TOR |
| 7. | 4899119 | [4] | STUD,M8 x 1.25 x 40 | TOR Superseded by part number: 5801452462 |
