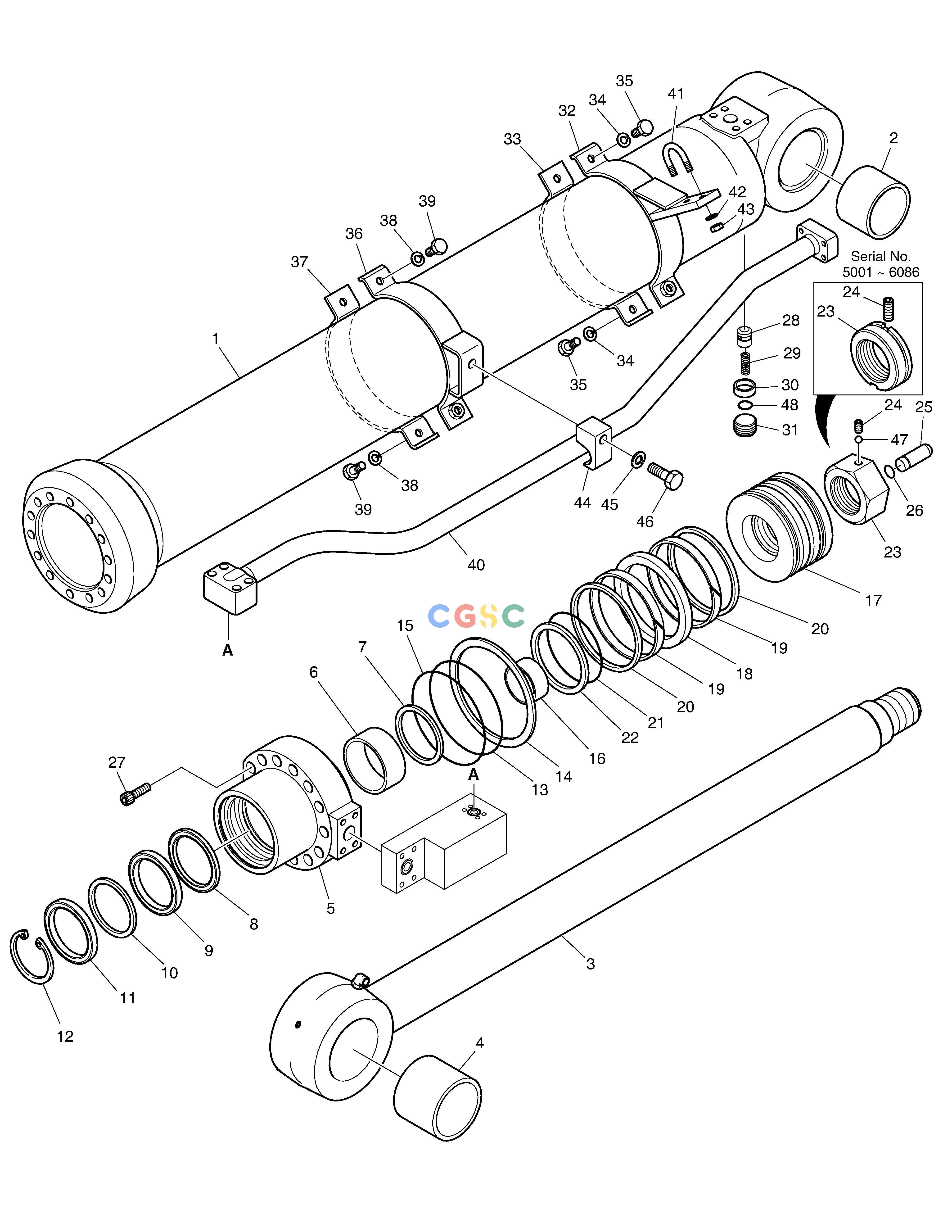

斗山零件查询ARM CYLINDER-LOCK VALVE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00757
|
[1] |
|
|
| . |
K9002290
|
[1] |
SEAL KIT;ARM CYL
|
|
| -. |
K1006237C
|
[1] |
CYLINDER;ARM
|
400305-00056
|
| -. |
400305-00056
|
[1] |
|
|
| 1. |
K9002272
|
[1] |
TUBE ASS'Y
|
|
| 10. |
K9001952
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00098
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00091
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011601
|
[1] |
O-RING
|
|
| 14. |
K9001953
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D150
|
[1] |
O-RING
|
|
| 16. |
K9002275
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00347
|
[1] |
|
|
| 17. |
K9002276
|
[1] |
PISTON
|
|
| 18. |
K9002277
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00112
|
[2] |
RING;WEAR
|
|
| 2. |
K1003915
|
[1] |
BUSH
|
|
| 20. |
115-00110
|
[2] |
RING;SLYD
|
|
| 21. |
S8011101
|
[1] |
O-RING
|
|
| 21. |
S8010901
|
[1] |
O-RING
|
|
| 22. |
111102-00016
|
[2] |
|
|
| 22. |
K9001955
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00083
|
[1] |
|
|
| 23. |
K9003705
|
[1] |
NUT
|
|
| 24. |
S3526408
|
[1] |
|
|
| 24. |
S3523836
|
[1] |
SCREW;SET
|
|
| 25. |
K9002278
|
[1] |
PLUNGER;CUSHION
|
|
| 26. |
115-00081
|
[1] |
RING;STOP
|
|
| 26. |
K9002279
|
[1] |
RING;STOP
|
|
| 27. |
S2228261
|
[14] |
BOLT;SOCKET
|
|
| 28. |
1.420-00052
|
[1] |
VALVE;CHECK
|
|
| 29. |
129-00071
|
[1] |
SPRING
|
|
| 3. |
400337-00185
|
[1] |
|
|
| 3. |
K9002273B
|
[1] |
ROD ASS'Y
|
|
| 30. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 31. |
430221-00136
|
[1] |
PLUG
|
|
| 31. |
2181-1116D3
|
[1] |
PLUG;HEX. SOCKET
|
|
| 32. |
K9002280
|
[1] |
PIPE BAND ASS'Y-H
|
|
| 33. |
124-00129
|
[1] |
BAND;PIPE
|
|
| 34. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 35. |
S0560563
|
[2] |
BOLT
|
|
| 36. |
K9002281
|
[1] |
PIPE BAND ASS'Y-R
|
|
| 37. |
124-00129
|
[1] |
BAND;PIPE
|
|
| 38. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 39. |
S0560563
|
[2] |
BOLT
|
|
| 4. |
K1003915
|
[1] |
BUSH
|
|
| 40. |
K9002678
|
[1] |
PIPE ASS'Y-R
|
|
| 41. |
K9001158
|
[1] |
U-BOLT
|
|
| 42. |
S5100603
|
[2] |
WASHER
|
|
| 43. |
S4012633
|
[2] |
NUT
|
|
| 44. |
K9001159
|
[1] |
CLAMP;PIPE
|
|
| 45. |
S5102903
|
[1] |
WASHER
|
|
| 46. |
S0521853
|
[1] |
BOLT
|
|
| 47. |
110202-00014
|
[1] |
|
|
| 48. |
S8000141
|
[1] |
O-RING
|
|
| 5. |
K9002274
|
[1] |
COVER;ROD
|
|
| 6. |
110-01002
|
[1] |
DD-BUSH
|
|
| 7. |
115-00090
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001950
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001951
|
[1] |
U-PACKING
|
|
