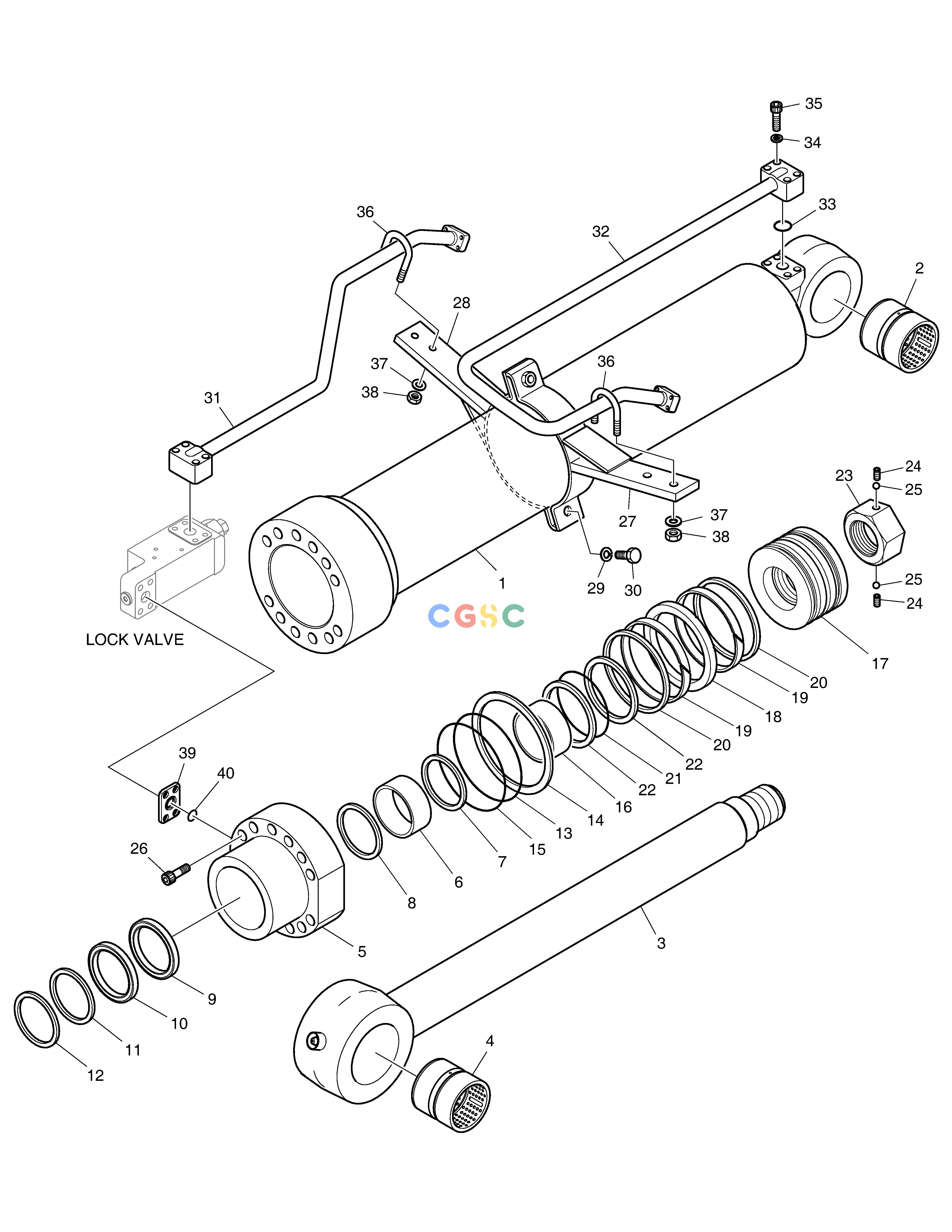

斗山零件查询ARTI BOOM CYLINDER - LOCK VALVE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
136 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9009922
|
[1] |
SEAL KIT
|
|
| -. |
400306-00154
|
[1] |
|
|
| 1. |
420402-00221A-DG
|
[1] |
|
|
| 10. |
111102-00146
|
[1] |
|
|
| 11. |
1.180-00502
|
[1] |
WIPER;DUST
|
|
| 12. |
1.115-00056
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011701
|
[1] |
O-RING
|
|
| 14. |
K9002083
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D150
|
[1] |
O-RING
|
|
| 16. |
K9002099
|
[1] |
RING;CUSHION
|
|
| 17. |
K9009913
|
[1] |
PISTON
|
|
| 18. |
K2002086
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00419
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00010B
|
[1] |
|
|
| 20. |
401001-00061
|
[2] |
|
|
| 21. |
S8011001
|
[1] |
. O-RING
|
|
| 22. |
111102-00013
|
[2] |
|
|
| 23. |
120312-00083A
|
[1] |
|
|
| 24. |
S3526408
|
[2] |
|
|
| 25. |
110202-00014
|
[2] |
|
|
| 26. |
S2234471
|
[12] |
BOLT;HEX SOCKET
|
|
| 27. |
K9009914-DG
|
[1] |
|
|
| 28. |
K9009915-DG
|
[1] |
|
|
| 29. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 3. |
400337-00321A-DG
|
[1] |
|
|
| 30. |
S0560563
|
[2] |
BOLT
|
|
| 31. |
420210-00706A-DG
|
[1] |
|
|
| 32. |
420210-00708-DG
|
[1] |
|
|
| 33. |
S8000341
|
[1] |
O-RING
|
|
| 34. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 35. |
S2215961
|
[4] |
BOLT;SOCKET
|
|
| 36. |
K9001158
|
[2] |
U-BOLT
|
|
| 37. |
S5100603
|
[4] |
WASHER
|
|
| 38. |
S4012633
|
[4] |
NUT
|
|
| 39. |
1.114-00246
|
[1] |
SPACER
|
|
| 4. |
131004-00010B
|
[1] |
|
|
| 40. |
S8000341
|
[1] |
O-RING
|
|
| 5. |
110508-24875-DG
|
[1] |
|
|
| 6. |
131002-00188
|
[1] |
|
|
| 7. |
115-00078
|
[1] |
RING;RETAINING
|
|
| 8. |
K9002095
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9002096
|
[1] |
PACKING;U
|
|
