纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (02-20) - CYLINDER BLOCK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
763 次

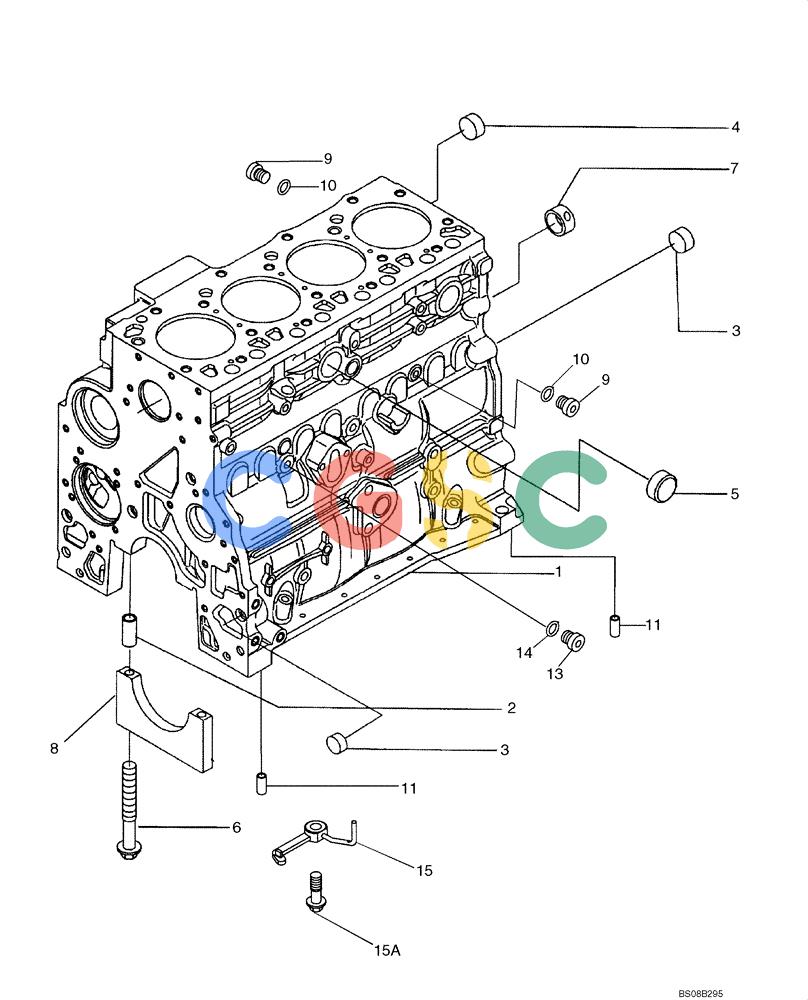

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2830082 | [1] | CYLINDER BLOCK,4 Cylinders | TORASSY, Incl. Refs. 1 - 15A |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONCYLINDER BLOCK |
| 2. | 4899026 | [10] | DOWEL,M18 x 10 | TOR |
| 3. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TOR |
| 4. | 4895038 | [4] | EXPANSION PLUG,M58.06 | TOR |
| 5. | 4895228 | [2] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 6. | 4891353 | [10] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 7. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 8. | 4895919 | [4] | BEARING ASSY | TORMain; Not Serviced Separately |
| 8. | 4895921 | [1] | BEARING ASSY | TORMain; Not Serviced Separately |
| 9. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORIncl. Ref. 10 |
| 10. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 11. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 13. | 4899009 | [1] | PLUG,M10 x 1.5 | TORIncl. Ref. 14 |
| 14. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR |
| . . | 2852202 | [4] | PISTON COOLING NOZZLE | TORIncl. Ref. 15, 15A Superseded by part number: 504054307 |
| 15. | 2852203 | [1] | PISTON COOLING NOZZLE | TOR Superseded by part number: 504054307 |
| 15A. | 4894218 | [1] | SCREW,Special, M8 x 20 | TOR |
