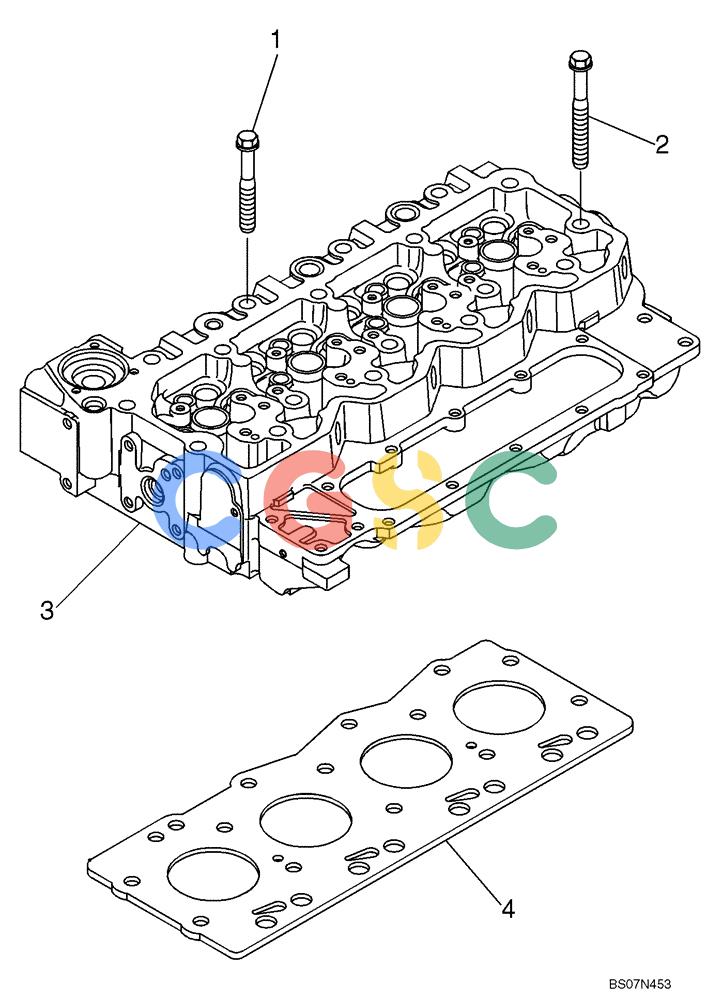

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4891024 | [8] | BOLT,Flng, M12 x 1.75 x 130mm | TOR |
| 2. | 4891025 | [10] | SCREW,Flng, M12 x 1.75 x 150mm | TOR |
| 3. | 87536218 | [1] | CYLINDER HEAD | TORSee Figure 02-24 |
| . . | 87536218R | [1] | REMAN-CYLINDER HEAD | TORD95B TIER 3 (3/08-) |
| . . | 87536218C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 4. | 2830706 | [1] | CYLINDER HEAD GASKET,1.25mm Thk | TOR1.25 mm thk, If Used |
| 4. | 2830707 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR1.15 mm thk, If Used |
| 5. | 4895078 | [2] | PIPE PLUG,1/2"-14 | TORNot Illustrated |
| 6. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TORNot Illustrated Superseded by part number: 2854866 |
