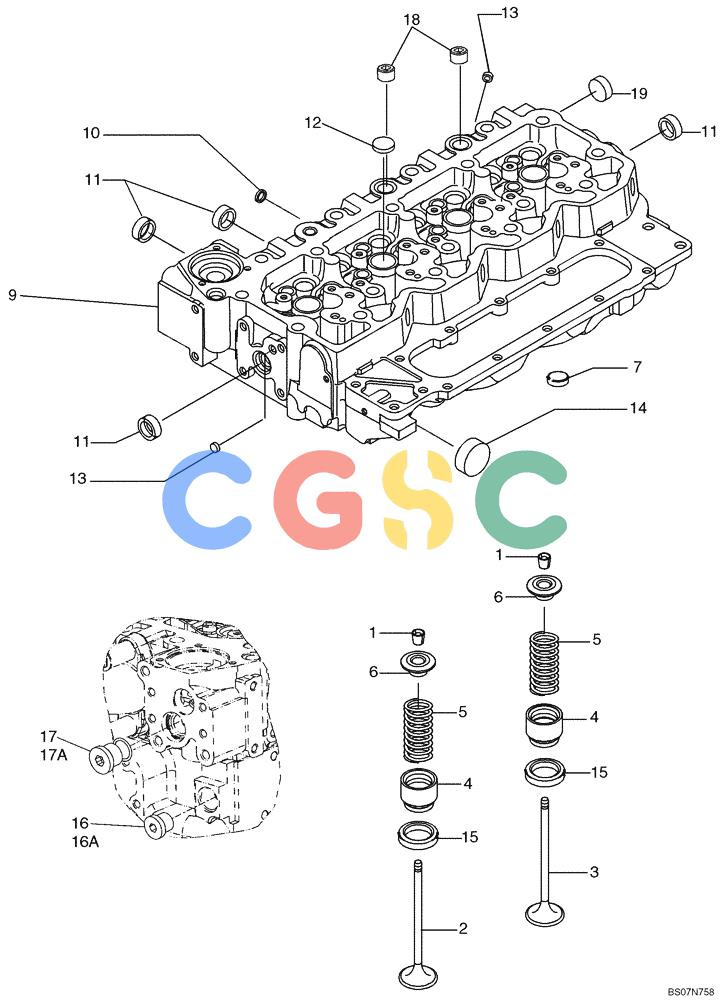

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (02-24) - CYLINDER HEAD - ASSEMBLY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87536218 | [1] | CYLINDER HEAD | TORCYLINDER HEAD, Assy, Incl. Refs. 1 - 15 |
| . . | 87536218R | [1] | REMAN-CYLINDER HEAD | TORD95B TIER 3 (3/08-) |
| . . | 87536218C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 1. | 4899081 | [32] | ROCKER ARM COTTER | TOR |
| 2. | 4895051 | [8] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 3. | 4895052 | [8] | STD INLET VALVE | TORSTD ENGINE INLET VALVE Intake |
| 4. | 2831287 | [16] | SEAL | TORValve Stem Seal |
| 5. | 2831473 | [16] | VALVE SPRING | TORSPRING, VALVE |
| 6. | 4895074 | [16] | CUP | TORRetainer |
| 7. | 4893036 | [3] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| . . | 2831266 | [1] | CYLINDER HEAD | TORAssy. Incl. Refs. 9 - 15 |
| . . | 47507108R | [1] | REMAN-CYLINDER HEAD | RACD95B CRAWLER DOZER TIER 3, Assy (3/08-) |
| . . | 47507108C | [1] | CORE-HYD CYLINDER | RACReturn Number |
| 9. | NSS | [1] | NOT SERVICED SEPARATELY | CONCylinder Head |
| 10. | 4895408 | [2] | PLUG | TOR.511" OD |
| 11. | 4895085 | [9] | EXPANSION PLUG,25.74mm | TOROD |
| 12. | 4895089 | [7] | PLUG | TOR.886" OD |
| 13. | 4895406 | [5] | EXPANSION PLUG,9.8mm OD | TOR |
| 14. | 4895407 | [1] | EXPANSION PLUG | TOR |
| 15. | 4893244 | [16] | VALVE SEAT | SM |
| 16. | 4895392 | [1] | HEX SOCKET PLUG,M18 x 1.5 | TOREngine Oil Torque Converter, Incl. Ref. 16A |
| 16A. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 17. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TOREngine Oil Torque Converter, Incl. Ref. 17A |
| 17A. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 18. | 4895078 | [2] | PIPE PLUG,1/2"-14 | TORCabin Heater |
