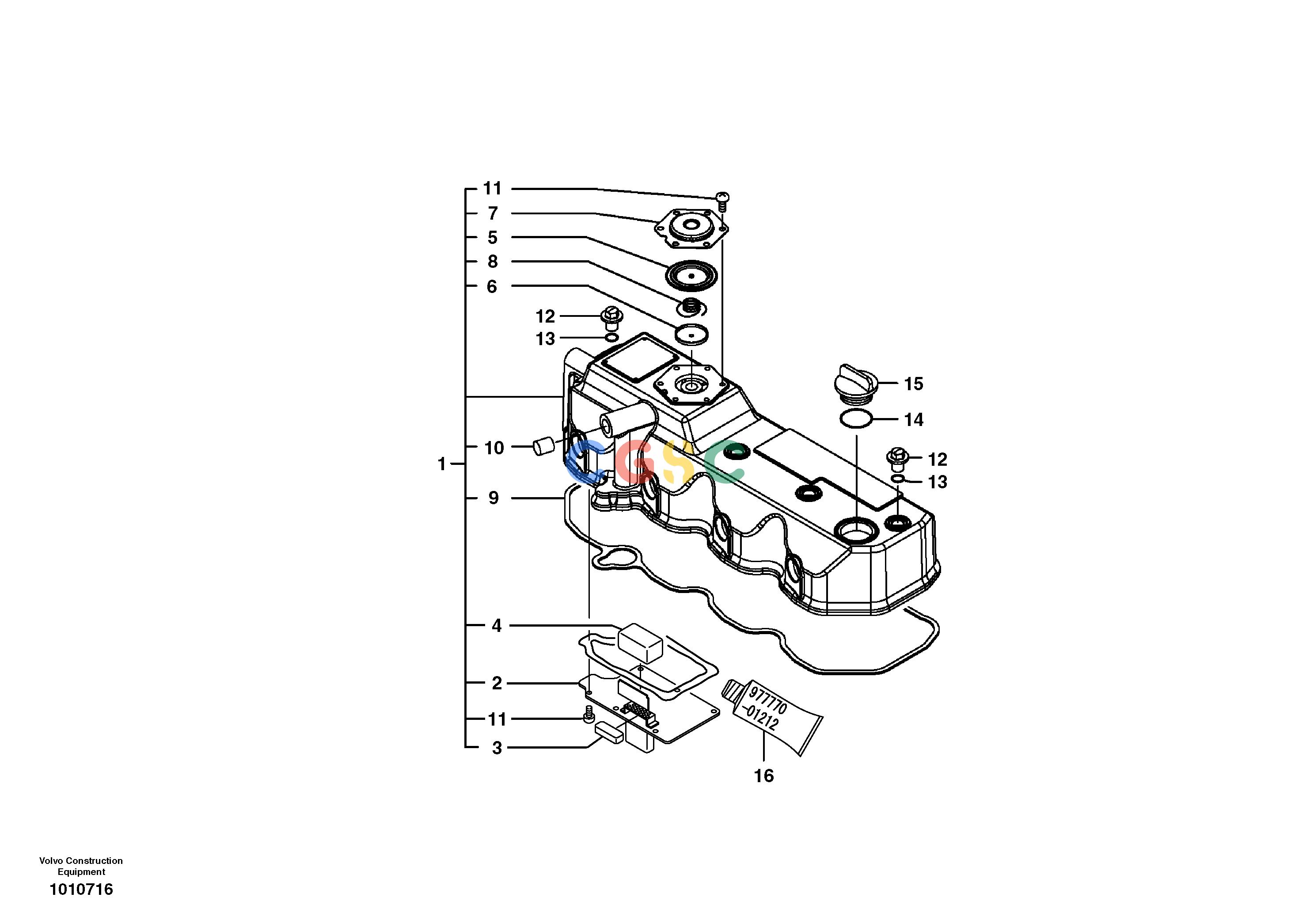

沃尔沃零件查询ECR58 Valve coverNone8279150-8279151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14521544
|
[1] |
Cover
|
SER NO 10001-10733
|
| |
VOE14533736
|
[1] |
Cover
|
SER NO 10734-
|
| 2. |
VOE14521545
|
[1] |
Plate
|
SER NO 10001-10733
|
| |
VOE11714770
|
[1] |
Plate
|
SER NO 10734-
|
| 3. |
VOE14521546
|
[1] |
Baffle
|
SER NO 10001-10733
|
| |
VOE11714771
|
[1] |
Baffle
|
SER NO 10734-
|
| 4. |
VOE14521547
|
[1] |
Baffle
|
|
| 5. |
VOE14521548
|
[1] |
Diaphragm
|
|
| 6. |
VOE14521549
|
[1] |
Plate
|
|
| 7. |
VOE14521550
|
[1] |
Plate
|
|
| 8. |
VOE14521551
|
[1] |
Spring
|
|
| 9. |
VOE15057758
|
[1] |
Valve cover gasket
|
|
| 10. |
VOE14521553
|
[1] |
Plug
|
|
| 11. |
SA8210-08850
|
[12] |
Screw
|
|
| 12. |
VOE11714385
|
[4] |
Flange cap nut
|
SER NO 10001-10733
|
| |
VOE11714385
|
[4] |
Flange cap nut
|
SER NO 10734-
|
| 13. |
VOE11714386
|
[4] |
O-ring
|
|
| 14. |
VOE11714371
|
[1] |
O-ring
|
SER NO 10001-10733
|
| |
VOE11714371
|
[1] |
O-ring
|
SER NO 10734-
|
| 15. |
VOE11714383
|
[1] |
Cap
|
SER NO 10001-10733
|
| |
VOE11714383
|
[1] |
Cap
|
SER NO 10734-
|
| 16. |
VOE14543857
|
[1] |
Gasket
|
SER NO 10001-10733
|
| |
VOE14543857
|
[1] |
Gasket
|
SER NO 10734-
|
