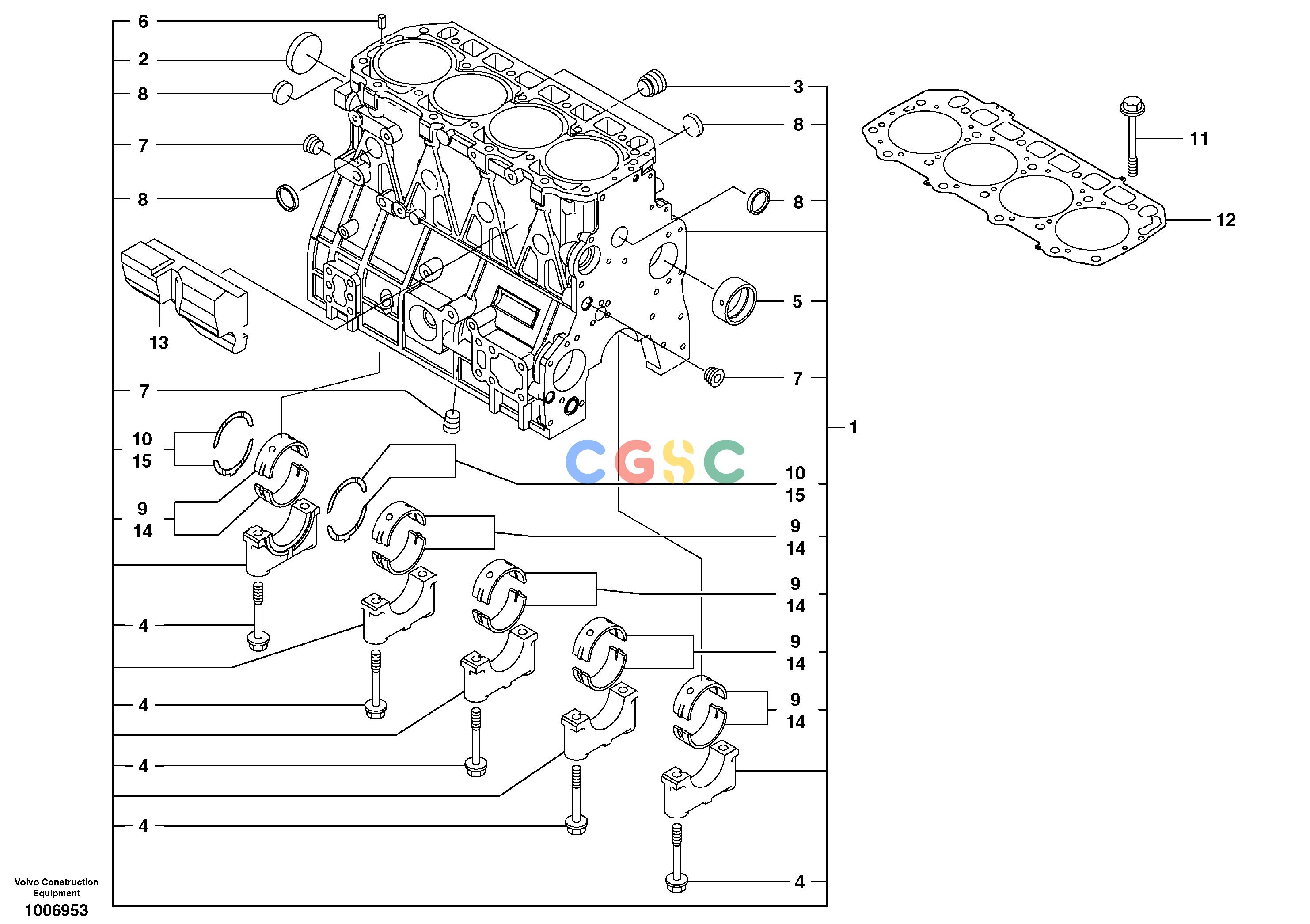

沃尔沃零件查询ECR58 Cylinder blockNone8279150-8279151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
217 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15067547
|
[1] |
Cylinder block
|
|
| 2. |
VOE14521503
|
[1] |
Plug
|
|
| 3. |
SA8210-05320
|
[1] |
Plug
|
|
| 4. |
VOE11714756
|
[10] |
Screw
|
|
| 5. |
VOE11714757
|
[1] |
Bushing
|
|
| 6. |
VOE11714387
|
[2] |
Spring pin
|
SER NO 10001-10733
|
| |
VOE11714387
|
[2] |
Spring pin
|
SER NO 10734-
|
| 7. |
VOE14521504
|
[3] |
Plug
|
|
| 8. |
VOE11714369
|
[8] |
Plug
|
SER NO 10001-10733
|
| |
VOE11714369
|
[8] |
Plug
|
SER NO 10734-
|
| 9. |
VOE15057722
|
[5] |
Main bearing kit
|
|
| 10. |
VOE15057699
|
[2] |
Thrust washer
|
|
| 11. |
VOE11714759
|
[18] |
Screw
|
|
| 12. |
VOE14617016
|
[1] |
Gasket
|
|
| 13. |
VOE14521506
|
[1] |
Spacer
|
|
| 14. |
VOE15057730
|
[5] |
Main bearing kit
|
0.25 U SZ
|
| 15. |
VOE15057718
|
[2] |
Thrust washer
|
0.25 O SZ
|
