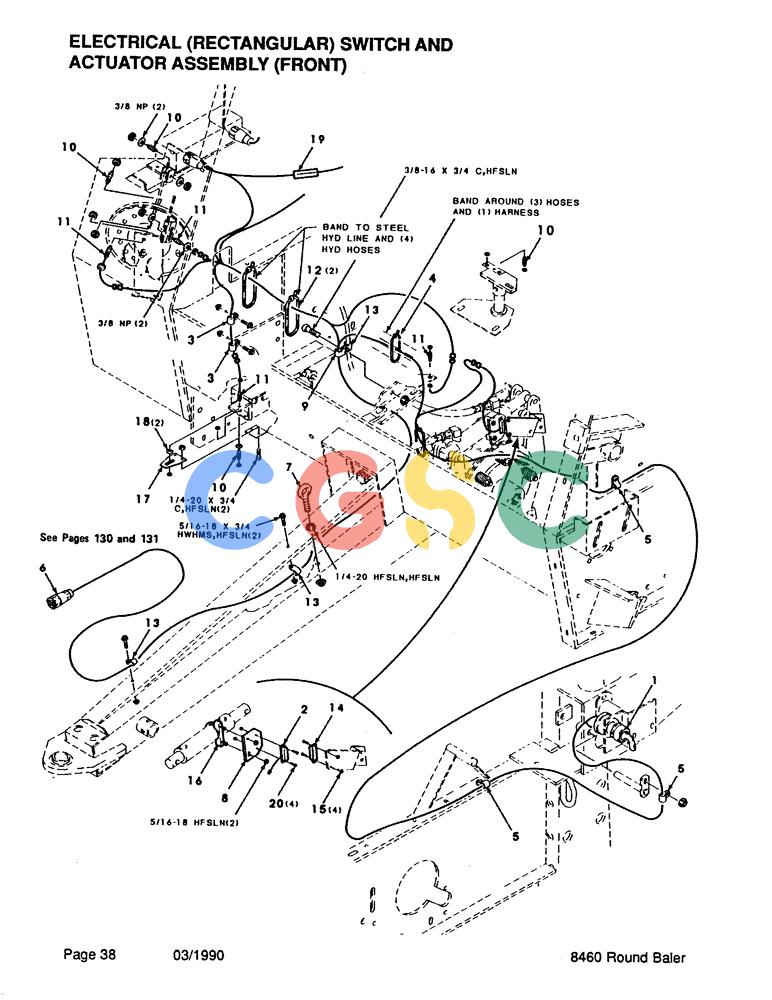

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (038) - ELECTRICAL, RECTANGULAR, SWITCH AND ACTUATOR ASSEMBLY, FRONT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707326
|
[1] |
SWITCH
|
HFI
|
| 2. |
700710208
|
[1] |
ROTARY SWITCH
|
L
SWITCH - N.O.
|
| 3. |
700708090
|
[2] |
CLAMP
|
L
- line Superseded by part number: 86637978
|
| 4. |
722470
|
[2] |
MOUNTING CLIP
|
CAS
TIE - cable Superseded by part number: 529070
|
| 5. |
751487
|
[3] |
CLAMP
|
CAS
- line Superseded by part number: 86632595
|
| 6. |
700708762
|
[1] |
HARNESS
|
CAS
- wire
|
| 7. |
866061
|
[1] |
EYEBOLT
|
CAS
|
| 8. |
700122551
|
[1] |
MOUNTING PARTS
|
HFI
SUPPORT - switch
|
| 9. |
7898737
|
[1] |
CLAMP
|
CAS
- line Superseded by part number: 9827902
|
| 10. |
700710211
|
[4] |
ACTUATOR
|
IH
|
| 11. |
700119161
|
[4] |
SWITCH
|
L
SENSOR "A"
|
| 12. |
7021728
|
[2] |
STRAP
|
CAS
TIE - cable Superseded by part number: 529070, 529070, NLS
|
| 13. |
755751
|
[3] |
ROD
|
CAS
- line
|
| 14. |
700709996
|
[1] |
SWITCH
|
IH
MAGNET
|
| 15. |
700710189
|
[4] |
LOCK NUT
|
CAS
NO. 6-32 LHSN STAINLESS STEEL
|
| 16. |
720664
|
[1] |
CLAMP
|
HFI
ASSEMBLY Superseded by part number: A135474
|
| 17. |
700122552
|
[1] |
PLATE
|
HFI
|
| 18. |
700710190
|
[2] |
WASHER
|
CAS
3/8 NP STAINLESS STEEL
|
| 19. |
700705710
|
[1] |
FUSE
|
HFI
(10 amp) Superseded by part number: 86503942
|
| 20. |
700710188
|
[4] |
SCREW
|
CAS
NO. 6-32 x 3/4 CRPHMS STAINLESS STEEL
|
| . . |
413-412
|
[2] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 x 3/4 C Superseded by part number: 9707580, 72187189
|
| . . |
7883374
|
[1] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
| . . |
7883325
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 x 3/4 HWHMS Superseded by part number: 121-115
|
