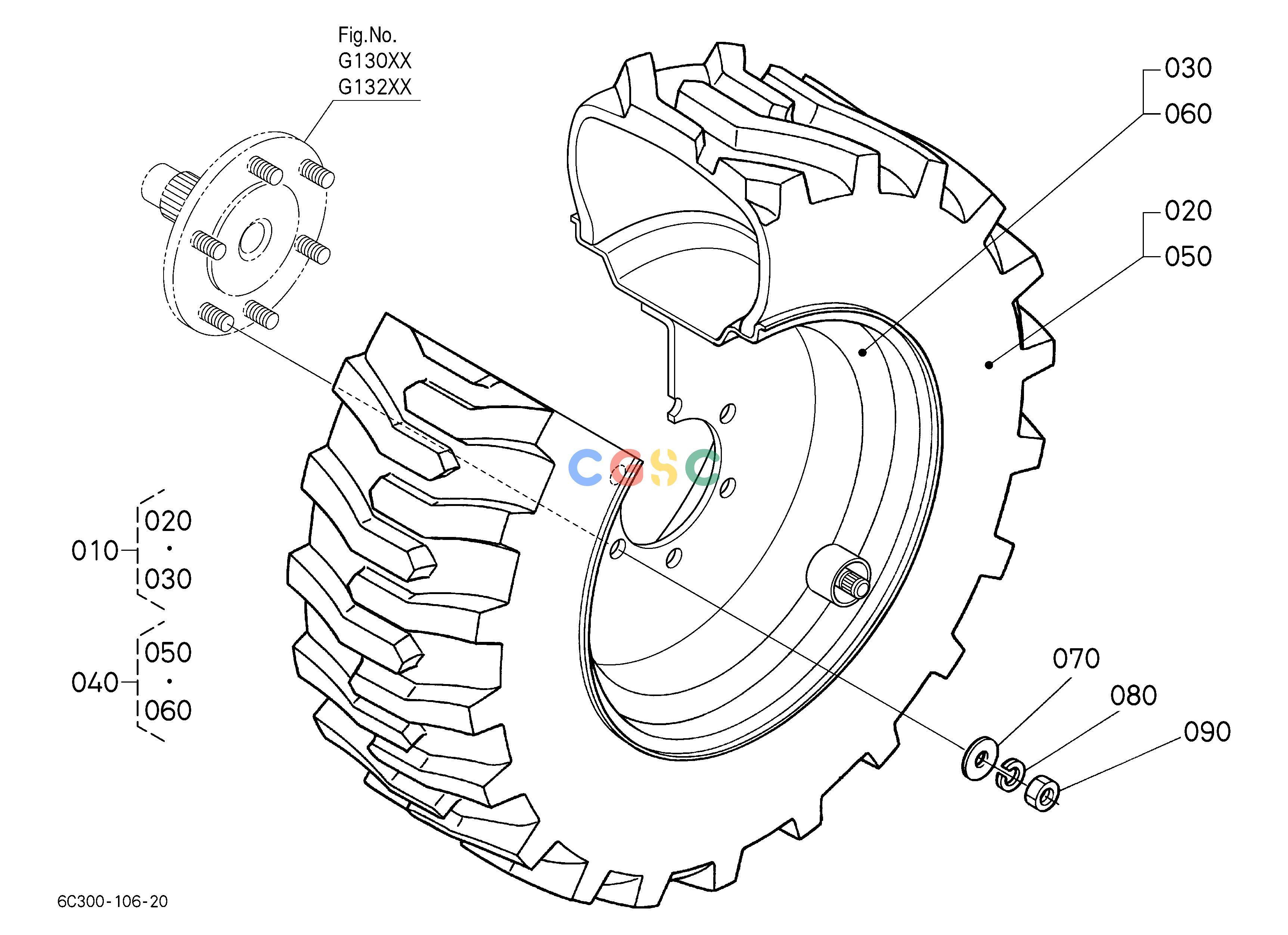

久保田零件查询R10104 FRONT WHEEL (23 8.50-12) FRONT TIREEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
731 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050621
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 020. |
6C04050650
|
[1] |
23X850-12 TRAC LOADE
|
0.0000(lbs); 0.000
|
| 030. |
6C04050640
|
[1] |
45955 WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
6C04050631
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 050. |
6C04050650
|
[1] |
23X850-12 TRAC LOADE
|
0.0000(lbs); 0.000
|
| 060. |
6C04050640
|
[1] |
45955 WHEEL
|
0.0000(lbs); 0.000
|
| 070. |
0401350120
|
[12] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 080. |
0451250120
|
[12] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 090. |
0217650120
|
[12] |
HEX.NUT
|
0.0220(lbs); 0.010
|
