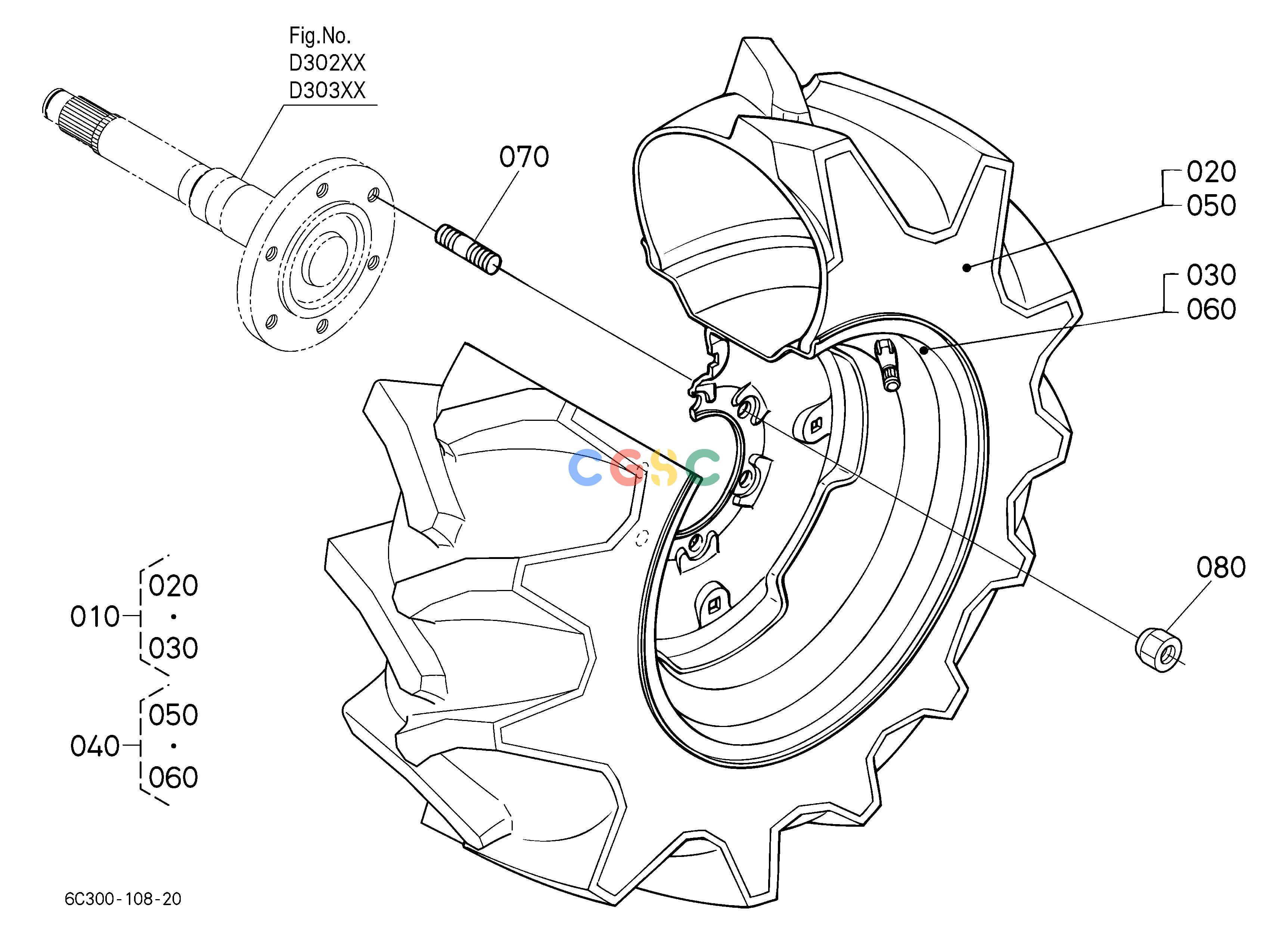

久保田零件查询R11001 REAR WHEEL (9.5-16) REAR TIREEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
544 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C12050800
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 020. |
TD06044930
|
[1] |
TIRE(9.5-16)
|
33.0000(lbs); 15.000
|
| 030. |
6643617640
|
[1] |
WHEEL
|
41.8000(lbs); 19.000
|
| 040. |
6C12050900
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 050. |
TD06044930
|
[1] |
TIRE(9.5-16)
|
33.0000(lbs); 15.000
|
| 060. |
6643617640
|
[1] |
WHEEL
|
41.8000(lbs); 19.000
|
| 070. |
0151751425
|
[12] |
BOLT,STUD
|
0.1034(lbs); 0.047
|
| 070. |
TA15049160
|
[12] |
STUD,WHEEL
|
0.1100(lbs); 0.050
|
| 080. |
0217450140
|
[12] |
HEX.NUT
|
0.0308(lbs); 0.014
|
| 080. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
