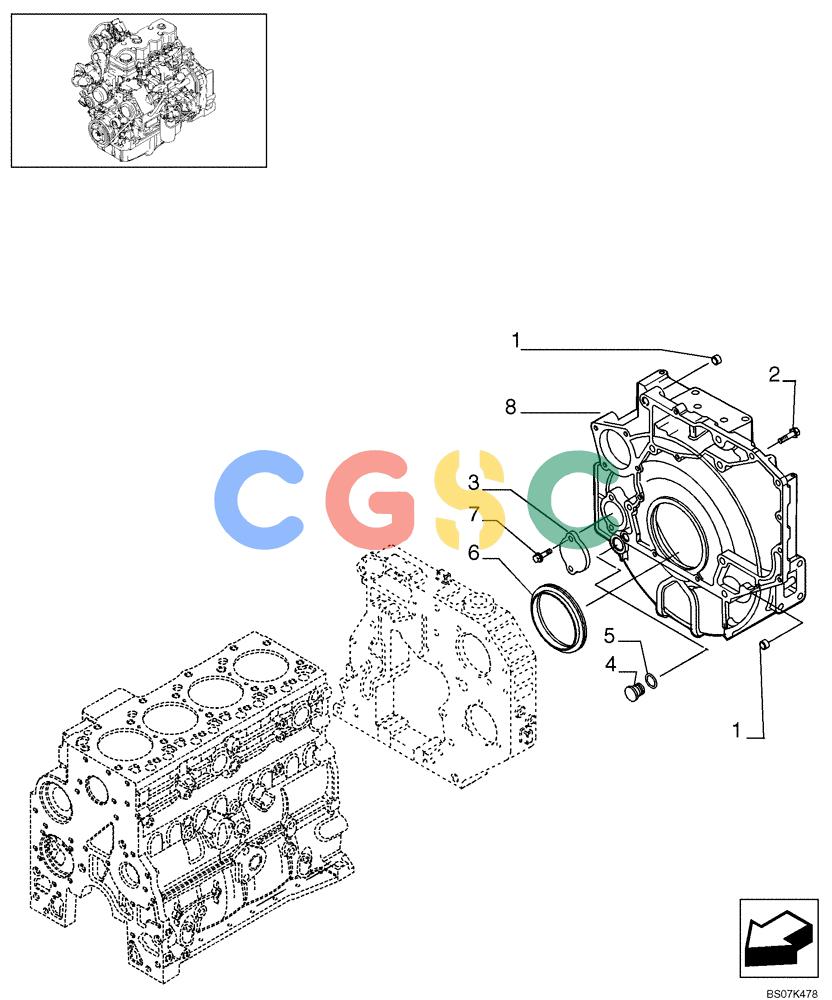

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (02-29) - FLYWHEEL HOUSING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
981 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899109 | [2] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
| 2. | 4892915 | [7] | FLANGE BOLT,Hex, M10 x 1.5 x 40mm | TOR |
| 2. | 4899076 | [6] | SCREW,Hex Flg, M12 x 1.75 x 80 | TOR |
| 2. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 2. | 4897499 | [2] | SCREW | SMFlange, M12 x 110 |
| 3. | 4895155 | [1] | COVER | TOR |
| 4. | 4895378 | [1] | BUTTON PLUG,M29.2 | TOR |
| 5. | 4895379 | [1] | O-RING,21.82mm ID x 3.53mm Width | TOR Superseded by part number: 17288480 |
| 6. | 4890833 | [1] | OIL SEAL,M130 x 155 x 12.5/16 | TOR Superseded by part number: |
| 7. | 4899143 | [1] | SCREW,Hex Flg, M10 x 1.5 x 140 | TOR |
| 8. | 2856957 | [1] | HOUSING | TORHOUSING, Flywheel |
| 9. | 2852865 | [1] | FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm | TORNot Illustrated Superseded by part number: 504080094 |
