日立零件查询（MA200-G）PUMP;GEAR Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
290 次

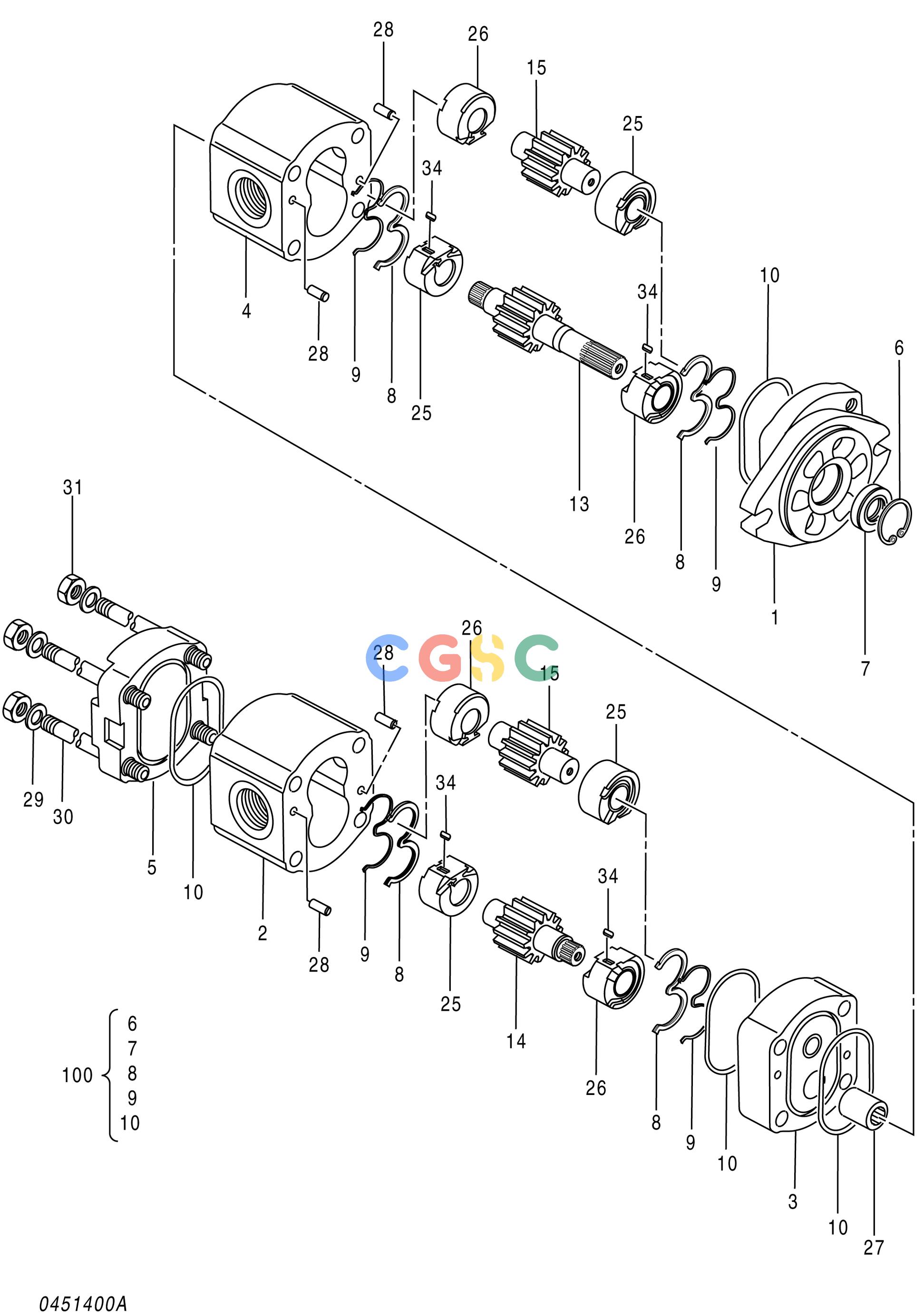

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4278696 | [1] | PUMP;GEAR | |
| 1. | 0354601 | [1] | FLANGE | |
| 2. | +++++++ | [1] | HOUSING | |
| 3. | 0424901 | [1] | FLANGE | |
| 4. | +++++++ | [1] | HOUSING | |
| 5. | 0354603 | [1] | COVER | |
| 6. | 0354604 | [1] | RING;RETAINING | |
| 7. | 0408202 | [1] | SEAL;OIL | |
| 8. | 0408203 | [4] | SEAL | |
| 9. | 0354607 | [4] | RING;BACK-UP | |
| 10. | 0354608 | [4] | O-RING | |
| 13. | +++++++ | [1] | GEAR | |
| 14. | +++++++ | [1] | GEAR | |
| 15. | +++++++ | [1] | GEAR | |
| 25. | +++++++ | [4] | BUSHING | |
| 26. | +++++++ | [4] | BUSHING | |
| 27. | 0424902 | [1] | COUPLING | |
| 28. | 0354610 | [6] | PIN | |
| 29. | 0354611 | [4] | WASHER | |
| 30. | 0415302 | [4] | BOLT | |
| 31. | 0354613 | [4] | NUT | |
| 34. | 0354614 | [4] | KEY | |
| 100. | 0424903 | [1] | KIT;SEAL | |
