日立零件查询（MA200-G）PUMP;UNIT Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
829 次

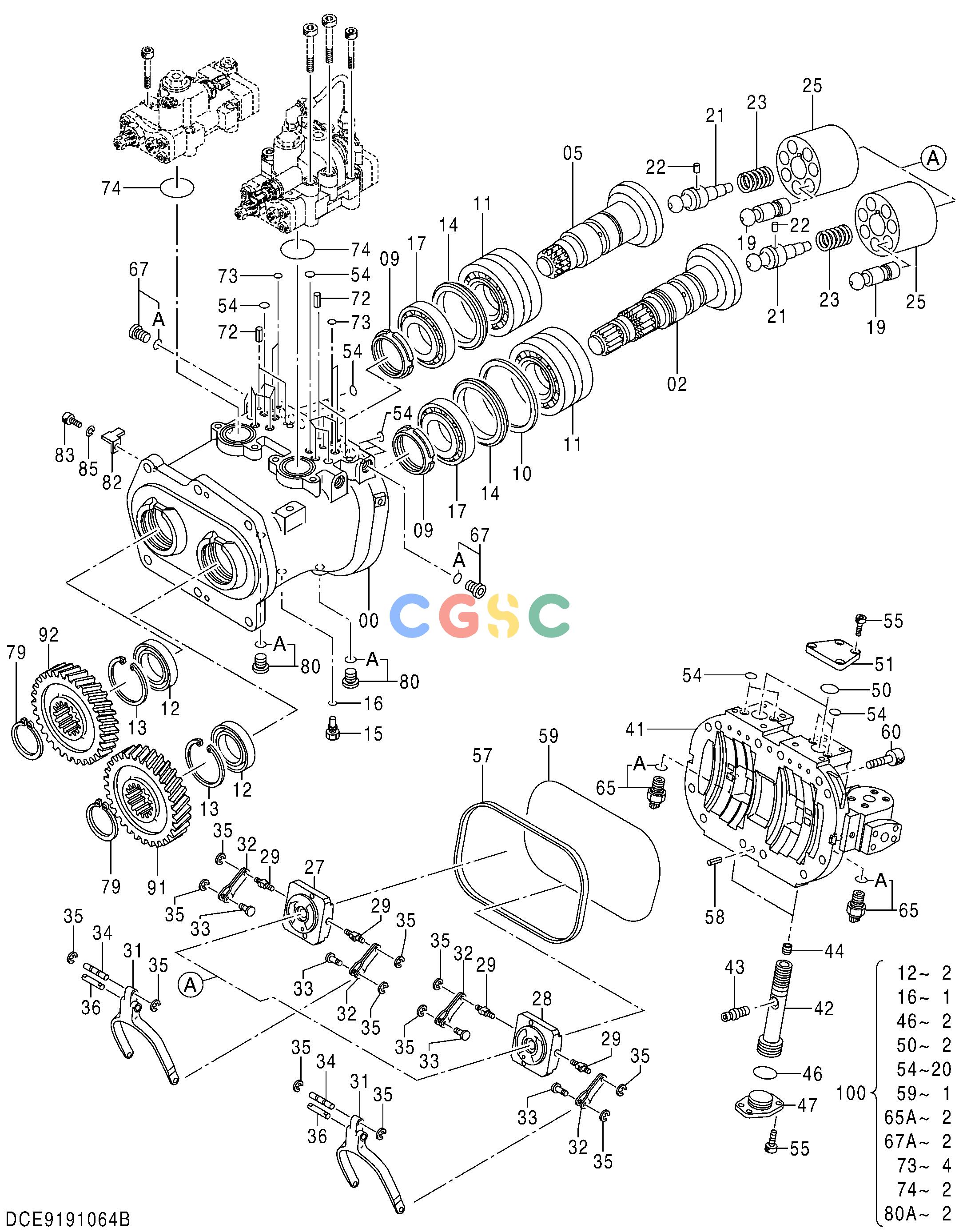

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9191064 | [1] | UNIT;PUMP | |
| 00. | 1032319 | [1] | CASING;PUMP | |
| 02. | 2043207 | [1] | DISC;DRIVING | |
| 05. | 2043211 | [1] | DISC;FOLLOWER | |
| 09. | 4178173 | [2] | NUT;BRG. | |
| 10. | 4338907 | [1] | RING;THRUST | |
| 11. | 4410050 | [2] | BRG.;ROL. | |
| 12. | 4333170 | [2] | SEAL;OIL | |
| 13. | 4116290 | [2] | RING;RETAINING | |
| 14. | 4339171 | [2] | RING | |
| 15. | 4233165 | [1] | PLUG | |
| 16. | 957366 | [1] | O-RING | |
| 17. | 4622945 | [2] | BRG.;ROL. | |
| 19. | 8059452 | [14] | PISTON | |
| 21. | 4337035 | [2] | SHAFT;CENTER | |
| 22. | 4198956 | [2] | PIN | |
| 23. | 4179181 | [2] | SPRING;COMPRES. | |
| 25. | 2036744 | [2] | ROTOR | |
| 27. | 2036795 | [1] | VALVE | |
| 28. | 2036786 | [1] | VALVE | |
| 29. | 4179179 | [4] | PIN | |
| 31. | 3075674 | [2] | LINK | |
| 32. | 9724756 | [4] | LEVER | |
| 33. | 4179177 | [4] | PIN | |
| 34. | 4179176 | [2] | PIN | |
| 35. | 4146370 | [12] | RING;RETAINING | |
| 36. | 4200227 | [2] | PIN | |
| 41. | 1027131 | [1] | HEAD | |
| 42. | 3069541 | [2] | PISTON;SERVO | |
| 43. | 4338053 | [2] | PIN | |
| 44. | 4337812 | [2] | SCREW;SET | |
| 46. | 4355085 | [2] | O-RING | |
| 47. | 4338060 | [2] | STOPPER | |
| 50. | 4355083 | [2] | O-RING | |
| 51. | 4338061 | [2] | STOPPER | |
| 54. | 4180349 | [20] | O-RING | |
| 55. | M340825 | [16] | BOLT;SOCKET | |
| 57. | 3070581 | [1] | RING;BACK-UP | |
| 58. | 4099290 | [2] | PIN;SPRING | |
| 59. | 4342840 | [1] | O-RING | |
| 60. | M341245 | [12] | BOLT;SOCKET | |
| 65. | 4703324 | [2] | SENSOR;PRES. | |
| 65A. | 4365826 | [1] | O-RING | |
| 67. | 9134110 | [2] | PLUG | |
| 67A. | 957366 | [1] | O-RING | |
| 72. | 4515041 | [4] | PIN;SPRING | |
| 73. | 4343074 | [4] | O-RING | |
| 74. | 4348665 | [2] | O-RING | |
| 79. | 4274552 | [2] | RING;RETAINING | |
| 80. | 9134111 | [2] | PLUG | |
| 80A. | 4509180 | [1] | O-RING | |
| 82. | 4252767 | [1] | BRACKET | |
| 83. | M340613 | [1] | BOLT;SOCKET | |
| 85. | 4169516 | [1] | WASHER;SPRING | |
| 91. | 3100993 | [1] | GEAR | |
| 92. | 3100994 | [1] | GEAR | |
| 100. | 4451039 | [1] | KIT;SEAL | |
