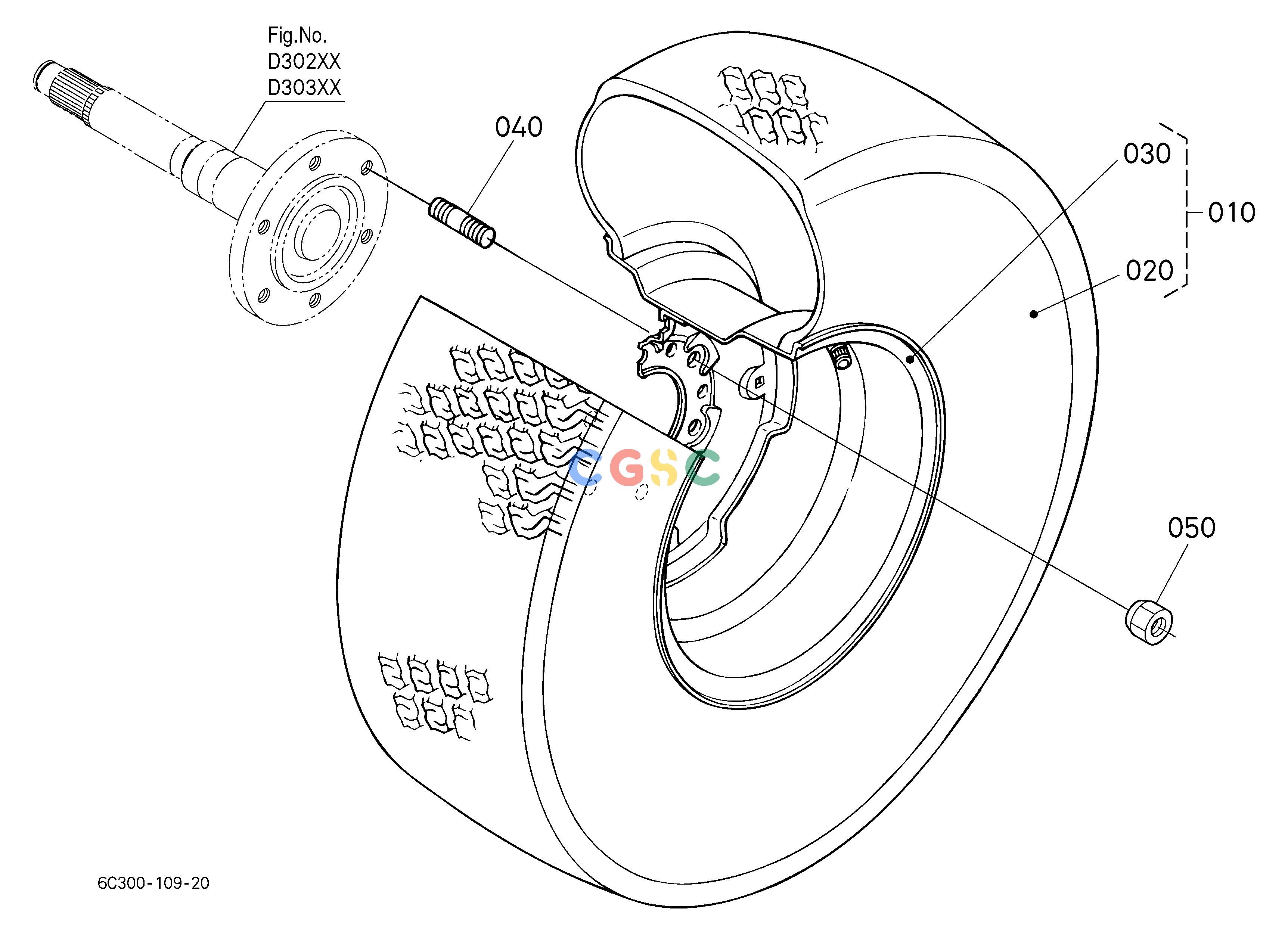

久保田零件查询R11002 REAR WHEEL (33 12.5-15) REAR TIREEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
319 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050121
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
6C04050130
|
[2] |
WHEEL (15 X W10)
|
0.0000(lbs); 0.000
|
| 030. |
3255045710
|
[2] |
33X12.50-15 ST 310-541-579-0
|
0.0000(lbs); 0.000
|
| 040. |
0151751425
|
[12] |
BOLT,STUD
|
0.1034(lbs); 0.047
|
| 040. |
TA15049160
|
[12] |
STUD,WHEEL
|
0.1100(lbs); 0.050
|
| 050. |
0217450140
|
[12] |
HEX.NUT
|
0.0308(lbs); 0.014
|
| 050. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
