日立零件查询（MA200-G）MOTOR;OIL (SWING) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
318 次

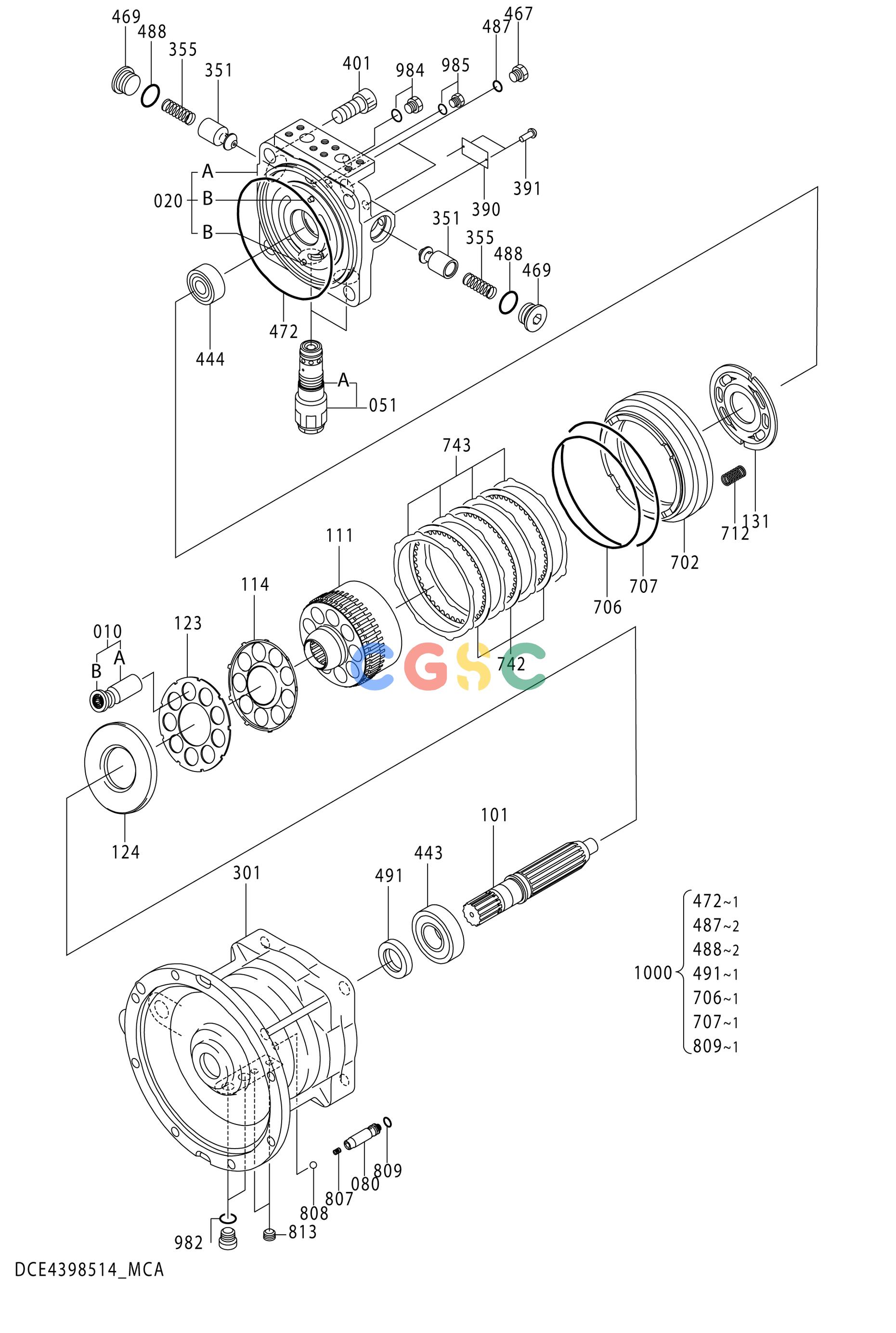

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [1] | MOTOR;OIL | |
| 010. | 0788801 | [1] | PISTON ASS'Y | |
| 010A. | +++++++ | [9] | PISTON | |
| 010B. | +++++++ | [9] | SHOE | |
| 020. | 0788802 | [1] | CASING ASS'Y | |
| 020A. | +++++++ | [1] | CASING | |
| 020B. | +++++++ | [2] | PIN;SPRING | |
| 051. | 4631866 | [2] | VALVE;RELIEF | |
| 051A. | A811030 | [2] | O-RING | |
| 080. | 0788803 | [1] | PLUNGER | |
| 101. | 0788804 | [1] | SHAFT | |
| 111. | 0788805 | [1] | CYLINDER | |
| 114. | 0788806 | [1] | SPRING;PLATE | |
| 123. | 0788807 | [1] | RETAINER | |
| 124. | 0788808 | [1] | PLATE | |
| 131. | 0788809 | [1] | PLATE;VALVE | |
| 301. | 0788810 | [1] | CASING | |
| 351. | 0409215 | [2] | PLUNGER | |
| 355. | 0409216 | [2] | SPRING | |
| 390. | +++++++ | [1] | NAME-PLATE | |
| 391. | 0625509 | [2] | PIN | |
| 401. | 0365318 | [4] | BOLT;SOCKET | |
| 443. | 0788811 | [1] | BRG.;ROL. | |
| 444. | 0677203 | [1] | BRG.;ROL. | |
| 467. | 0629404 | [2] | PLUG | |
| 469. | 0692708 | [2] | PLUG | |
| 472. | 1119003 | [1] | O-RING | |
| 487. | 957366 | [2] | O-RING | |
| 488. | 4506428 | [2] | O-RING | |
| 491. | 0788813 | [1] | SEAL;OIL | |
| 702. | 0788814 | [1] | PISTON | |
| 706. | 0353321 | [1] | O-RING | |
| 707. | 0425117 | [1] | O-RING | |
| 712. | 0788815 | [24] | SPRING;BRAKE | |
| 742. | 0788816 | [3] | PLATE;FRICTION | |
| 743. | 0788817 | [4] | PLATE | |
| 807. | 0788818 | [1] | SPRING | |
| 808. | 0221509 | [1] | BALL;STEEL | |
| 809. | 4506407 | [1] | OｰRING | |
| 813. | 0263019 | [2] | PLUG | |
| 982. | 1192601 | [2] | PLUG | |
| 984. | 0817701 | [1] | PLUG | |
| 985. | 0817702 | [1] | PLUG | |
| 1000. | 1119004 | [1] | KIT;SEAL | |
