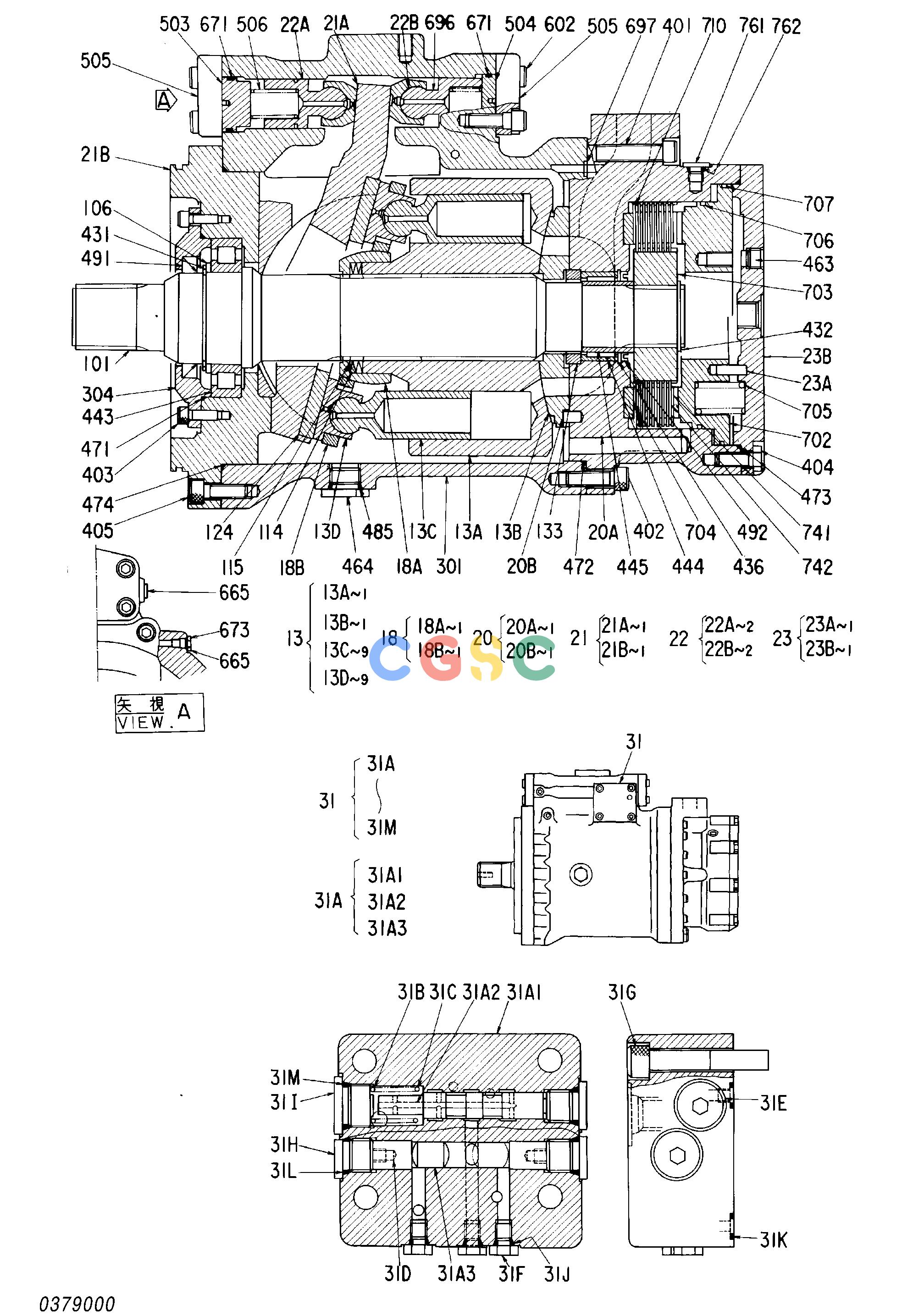

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4247702 | [1] | MOTOR;OIL | |
| 13. | 0238251 | [1] | CYL.;SUB | |
| 13A. | +++++++ | [1] | CYL. | |
| 13B. | +++++++ | [1] | PLATE;VALVE | |
| 13C. | +++++++ | [9] | PISTON | |
| 13D. | +++++++ | [9] | SHOE | |
| 18. | 0229803 | [1] | RETAINER-ASS'Y | |
| 18A. | +++++++ | [1] | BUSHING | |
| 18B. | +++++++ | [1] | RETAINER | |
| 20. | 0238247 | [1] | VALVE;COVER-SUB | |
| 20A. | +++++++ | [1] | VALVE;COVER | |
| 20B. | +++++++ | [1] | PIN | |
| 21. | 0304901 | [1] | PLATE;SUB | |
| 21A. | +++++++ | [1] | PLATE | |
| 21B. | +++++++ | [1] | CASING | |
| 22. | 0238202 | [1] | PISTON;SUB | |
| 22A. | +++++++ | [2] | PISTON | |
| 22B. | +++++++ | [2] | SHOE | |
| 23. | 0238249 | [1] | BRAKE;COVER-SUB | |
| 23A. | +++++++ | [1] | PIN | |
| 23B. | +++++++ | [1] | BRAKE;COVER | |
| 31. | 0238203 | [1] | VALVE;SUB | |
| 31A. | 0238241 | [1] | CASING;SUB | |
| 31A1. | +++++++ | [1] | CASING;VALVE | |
| 31A2. | +++++++ | [1] | SPOOL | |
| 31A3. | +++++++ | [1] | PISTON | |
| 31B. | 0238207 | [1] | SPRING | |
| 31C. | 0238208 | [1] | SEAT;SPRING | |
| 31D. | 0238209 | [2] | SPACER | |
| 31E. | 0238210 | [2] | VALVE | |
| 31F. | 0185106 | [3] | PLUG | |
| 31G. | 0238211 | [4] | BOLT;SOCKET | |
| 31H. | 0238212 | [3] | PLUG | |
| 31I. | 0238213 | [1] | PLUG | |
| 31J. | 4506405 | [3] | OｰRING | |
| 31K. | 4506407 | [6] | OｰRING | |
| 31L. | 957366 | [3] | OｰRING | |
| 31M. | 4509180 | [1] | OｰRING | |
| 101. | 0275702 | [1] | SHAFT;DRIVE | |
| 106. | 0238215 | [1] | SPACER | |
| 114. | 0229807 | [4] | SPRING | |
| 115. | 0229808 | [1] | SHIM | |
| 124. | 0229809 | [1] | PLATE | |
| 133. | 0238250 | [1] | GUIDE;RING | |
| 301. | 0238216 | [1] | CASING | |
| 304. | 0238217 | [1] | COVER | |
| 401. | 0229812 | [1] | BOLT;SOCKET | |
| 402. | 0229813 | [15] | BOLT;SOCKET | |
| 403. | 0130520 | [6] | BOLT;SOCKET | |
| 404. | 0238218 | [8] | BOLT | |
| 405. | M341236 | [14] | BOLT;SOCKET | |
| 431. | 954442 | [1] | RING;RETAINING | |
| 432. | 991345 | [1] | RING;RETAINING | |
| 436. | 940144 | [1] | RING;RETAINING | |
| 443. | 0238242 | [1] | BRG.;ROL. | |
| 444. | 0238243 | [1] | BRG.;NEEDLE | |
| 445. | 0238222 | [1] | RING | |
| 463. | 0111537 | [2] | PLUG | |
| 464. | 0175233 | [2] | PLUG | |
| 471. | A811130 | [1] | OｰRING | |
| 472. | 0229816 | [1] | O-RING | |
| 473. | 0238223 | [1] | O-RING | |
| 474. | 0121614 | [1] | O-RING | |
| 485. | 4506424 | [2] | OｰRING | |
| 491. | 0238244 | [1] | SEAL;OIL | |
| 492. | 0238225 | [1] | SEAL;OIL | |
| 503. | 0379001 | [1] | STOPPER | |
| 504. | 0238227 | [1] | STOPPER | |
| 505. | 0238228 | [2] | COVER;PISTON | |
| 506. | 0238229 | [2] | SPRING | |
| 602. | M341236 | [8] | BOLT;SOCKET | |
| 665. | 0185107 | [7] | PLUG | |
| 671. | A811040 | [2] | OｰRING | |
| 673. | 4506408 | [7] | OｰRING | |
| 696. | 0238230 | [2] | RING;BACK-UP | |
| 697. | 4506408 | [5] | OｰRING | |
| 702. | 0238232 | [1] | PISTON;BRAKE | |
| 703. | 0238233 | [1] | COUPLING | |
| 704. | 0238234 | [1] | SPACER | |
| 705. | 0275711 | [12] | SPRING | |
| 706. | 0238236 | [1] | RING;PISTON | |
| 707. | 0238237 | [1] | RING;PISTON | |
| 710. | 0238238 | [1] | SHIM | |
| 741. | 0275712 | [9] | PLATE | |
| 742. | 0275713 | [8] | PLATE;FRICTION | |
| 761. | 0236014 | [1] | PLUG | |
| 762. | 957366 | [1] | OｰRING | |
