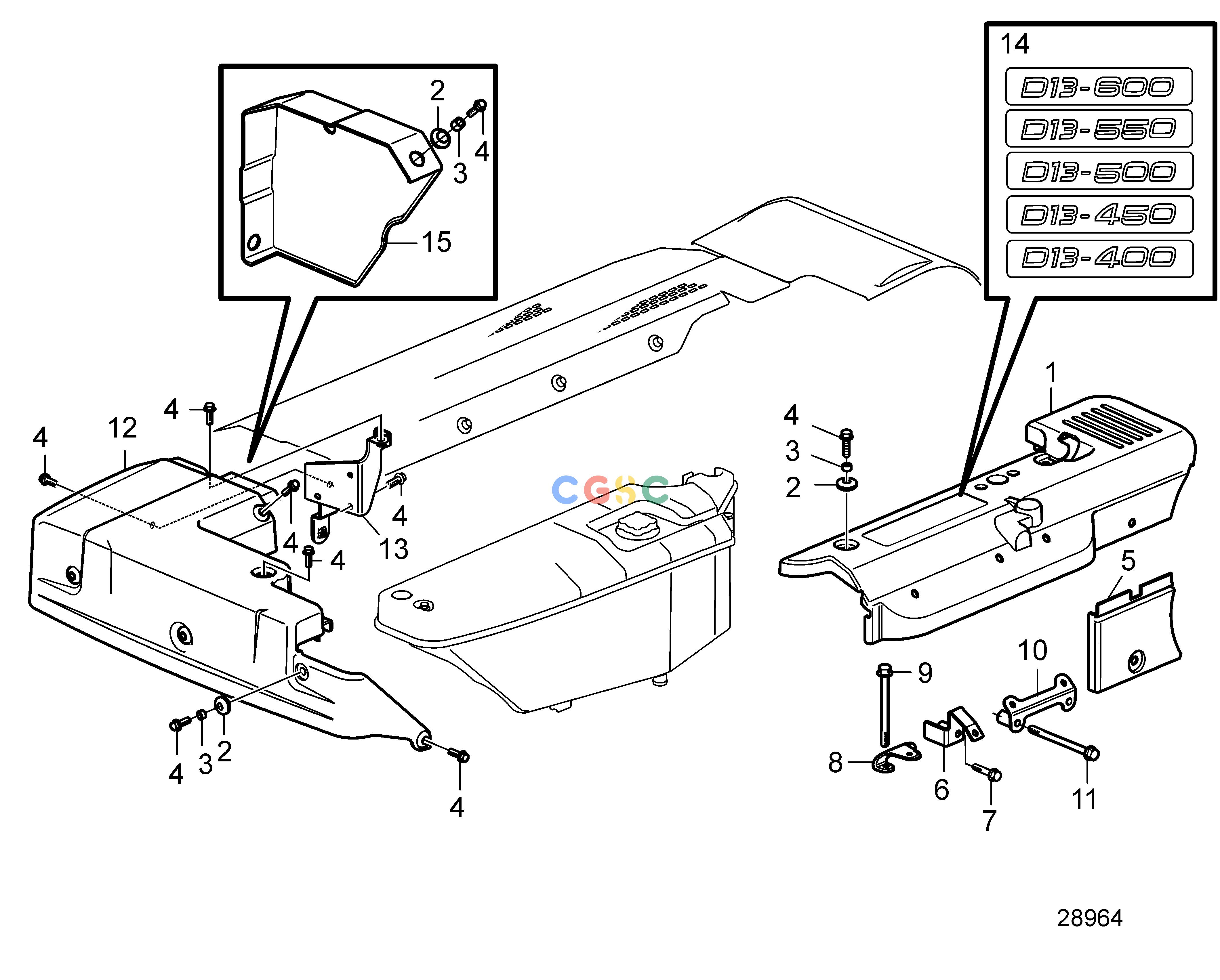

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemEngine CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21419051
|
[1] |
Cover
|
SN-2013680840
|
| 1. |
22860071
|
[1] |
Cover
|
SN2013680841-
|
| 2. |
992404
|
[8] |
Grommet
|
|
| 3. |
40005089
|
[8] |
Spacer
|
|
| 4. |
984735
|
[7] |
Flange screw
|
SN-2013680840
|
| 4. |
21972025
|
[7] |
Shoulder screw
|
SN2013680841-
|
| 5. |
21166758
|
[1] |
Cover
|
|
| 6. |
21168135
|
[1] |
Bracket
|
Replaced by 78466795
|
| 6. |
78466795
|
[1] |
Bracket
|
|
| 7. |
984758
|
[1] |
Flange screw
|
|
| 8. |
21167108
|
[1] |
Bracket
|
|
| 9. |
984741
|
[2] |
Flange screw
|
|
| 10. |
21123476
|
[1] |
Bracket
|
|
| 11. |
984766
|
[2] |
Flange screw
|
|
| 12. |
22150619
|
[1] |
Cover
|
|
| 13. |
21163942
|
[1] |
Bracket
|
|
| 14. |
21628573
|
[1] |
Decal
|
D13-600
|
| 14. |
21628572
|
[1] |
Decal
|
D13-550
|
| 14. |
21628571
|
[1] |
Decal
|
D13-500
|
| 14. |
21628570
|
[1] |
Decal
|
D13-450
|
| 14. |
21628569
|
[1] |
Decal
|
D13-400
|
| 15. |
21489472
|
[1] |
Cover
|
For twin turbo
|
