日立零件查询（MA200-G）VALVE;SHUTTLE (5/5) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
445 次

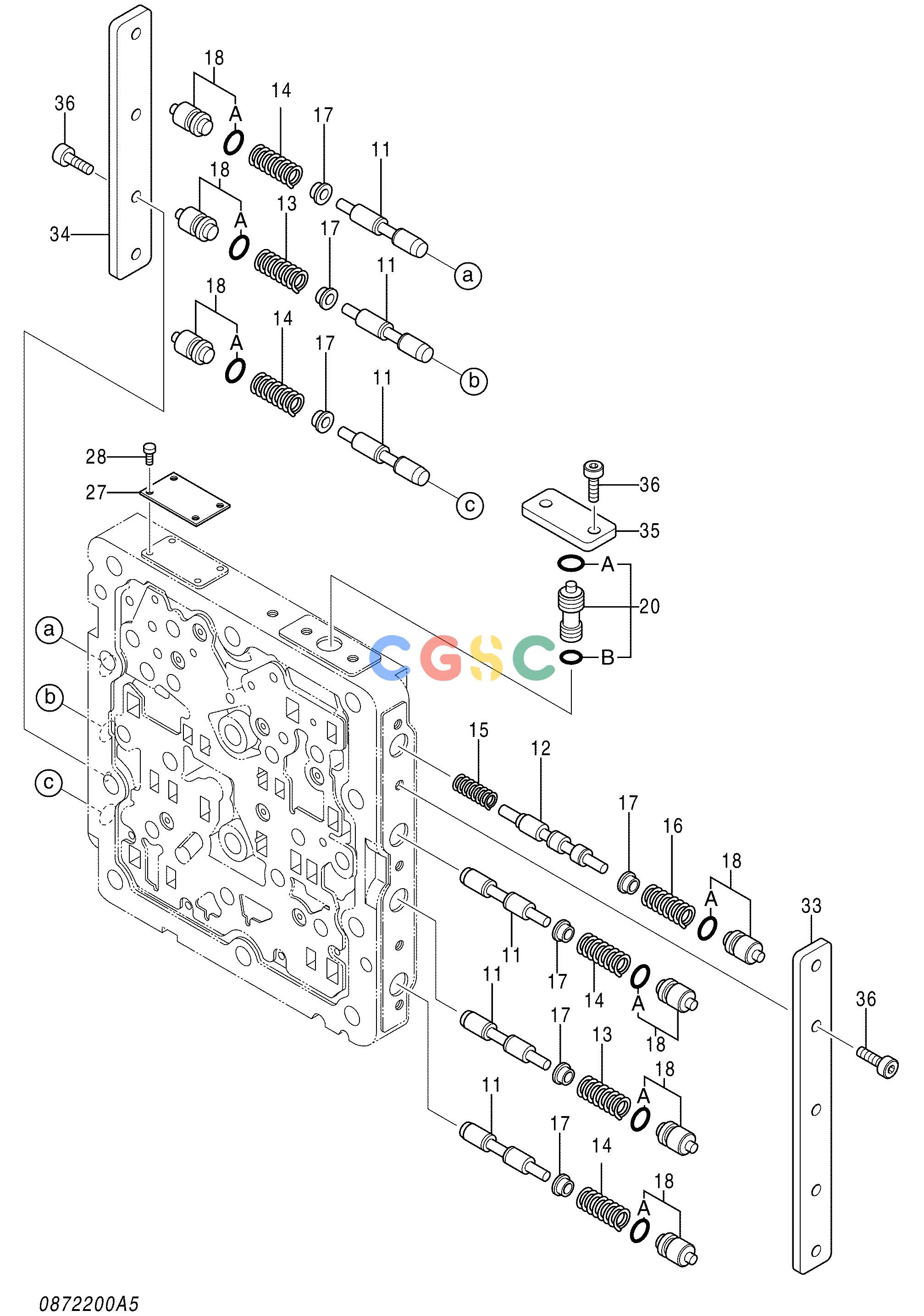

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4486321 | [1] | VALVE;SHUTTLE (5/5) | This PART NO. consists of all parts shown in VALVE;SHUTTLE(1/5) to (5/5). |
| 11. | 4453819 | [6] | SPOOL | |
| 12. | 4453820 | [1] | SPOOL | |
| 13. | 0788703 | [2] | SPRING | |
| 14. | 0788704 | [4] | SPRING | |
| 15. | 0788705 | [1] | SPRING | |
| 16. | 0788706 | [1] | SPRING | |
| 17. | 0788707 | [7] | SEAT;SPRING | |
| 18. | 4452647 | [7] | PLUG | |
| 18A. | 4140436 | [1] | O-RING | |
| 20. | 4452648 | [1] | VALVE;SLEEVE | |
| 20A. | 4140436 | [1] | O-RING | |
| 20B. | 992526 | [1] | O-RING | |
| 27. | +++++++ | [1] | NAME-PLATE | |
| 28. | +++++++ | [4] | SCREW;DRIVE | |
| 33. | 0788710 | [1] | PLATE | |
| 34. | 0788711 | [1] | PLATE | |
| 35. | 0788712 | [1] | PLATE | |
| 36. | 0788713 | [11] | BOLT;SOCKET | |
