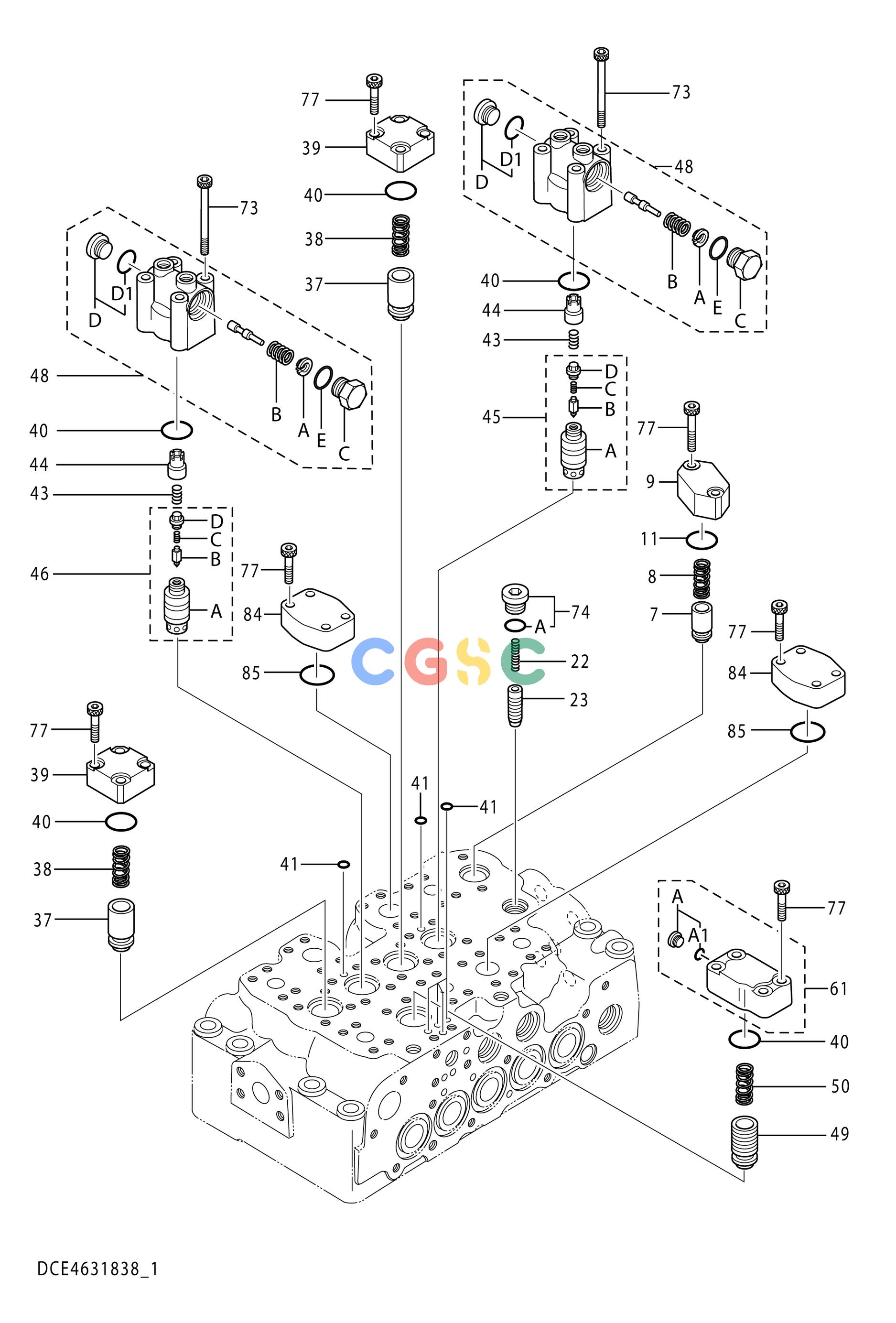

日立零件查询（MA200-G）VALVE;CONTROL (1/5) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
907 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4631838 | [1] | VALVE;CONTROL (1/5) | This PART NO. consists of all parts shown in VALVE;CONTROL(1/5) to (5/5). |
| 7. | 0668111 | [1] | POPPET | |
| 8. | 0668112 | [1] | SPRING | |
| 9. | 0791601 | [1] | FLANGE | |
| 11. | 4226446 | [1] | O-RING | |
| 22. | 0668007 | [1] | SPRING | |
| 23. | 0791602 | [1] | POPPET | |
| 37. | 0791603 | [2] | POPPET | |
| 38. | 0791604 | [2] | SPRING | |
| 39. | 0791605 | [2] | FLANGE | |
| 40. | 985098 | [5] | OｰRING | |
| 41. | 4506406 | [6] | O-RING | |
| 43. | 0791606 | [2] | SPRING | |
| 44. | 0791607 | [2] | SPACER | |
| 45. | 4454194 | [1] | POPPET ASS'Y | |
| 45A. | 0791609 | [1] | POPPET | |
| 45B. | 0791610 | [1] | POPPET | |
| 45C. | 0791611 | [1] | SPRING | |
| 45D. | 0791612 | [1] | PLUG | |
| 46. | 4454195 | [1] | POPPET ASS'Y | |
| 46A. | 0791614 | [1] | POPPET | |
| 46B. | 0791610 | [1] | POPPET | |
| 46C. | 0791611 | [1] | SPRING | |
| 46D. | 0791612 | [1] | PLUG | |
| 48. | 4454197 | [2] | BODY ASS'Y | |
| 48A. | 0791616 | [1] | SEAT;SPRING | |
| 48B. | 0791617 | [1] | SPRING | |
| 48C. | 0791618 | [1] | PLUG | |
| 48D. | 0667817 | [1] | PLUG ASS'Y | |
| 48D1. | 957366 | [1] | O-RING | |
| 48E. | 4506418 | [1] | O-RING | |
| 49. | 0791619 | [1] | POPPET | |
| 50. | 0791620 | [1] | SPRING | |
| 61. | 4454199 | [1] | BODY ASS'Y | |
| 61A. | 0667713 | [1] | PLUG ASS'Y | |
| 61A1. | 4506408 | [1] | O-RING | |
| 73. | 0791622 | [8] | BOLT;SOCKET | |
| 74. | 0695007 | [1] | PLUG ASS'Y | |
| 74A. | 4509180 | [1] | O-RING | |
| 77. | 4720520 | [22] | BOLT;SOCKET | |
| 84. | 0667726 | [2] | CAP | |
| 85. | 966993 | [2] | O-RING | |
