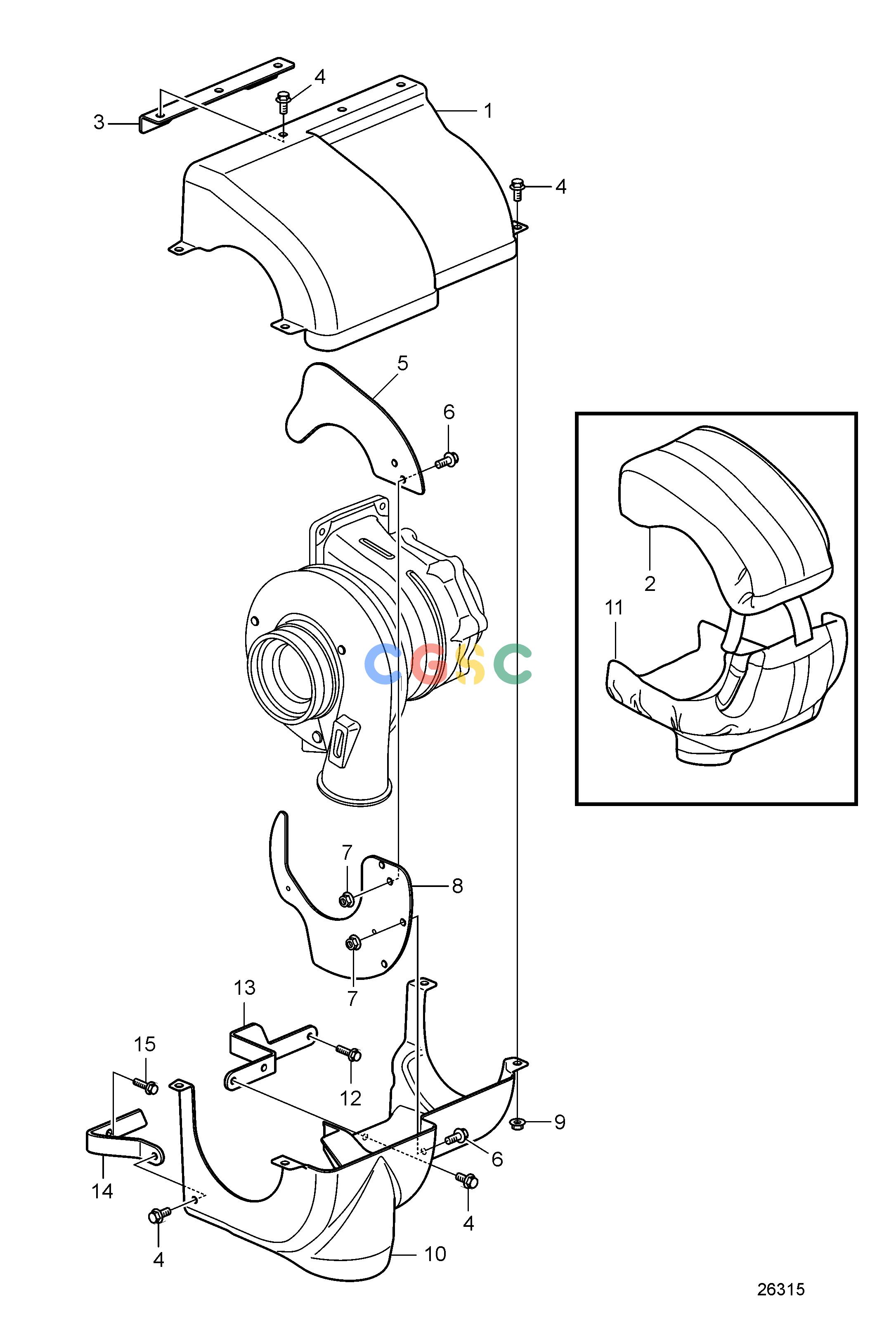

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemHeat Shield for TurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
326 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21553229
|
[1] |
Heat insulation
|
|
| 2. |
|
|
|
|
| 3. |
21321657
|
[1] |
Bracket
|
|
| 4. |
984733
|
[10] |
Flange screw
|
|
| 5. |
21553228
|
[1] |
Splash plate
|
|
| 6. |
994442
|
[2] |
Flange screw
|
|
| 7. |
990949
|
[2] |
Flange lock nut
|
|
| 8. |
21553226
|
[1] |
Splash plate
|
|
| 9. |
990950
|
[4] |
Flange lock nut
|
|
| 10. |
21553230
|
[1] |
Heat insulation
|
|
| 11. |
|
|
|
|
| 12. |
984743
|
[1] |
Flange screw
|
|
| 13. |
21385680
|
[1] |
Bracket
|
|
| 14. |
21385677
|
[1] |
Bracket
|
|
| 15. |
984741
|
[1] |
Flange screw
|
|
