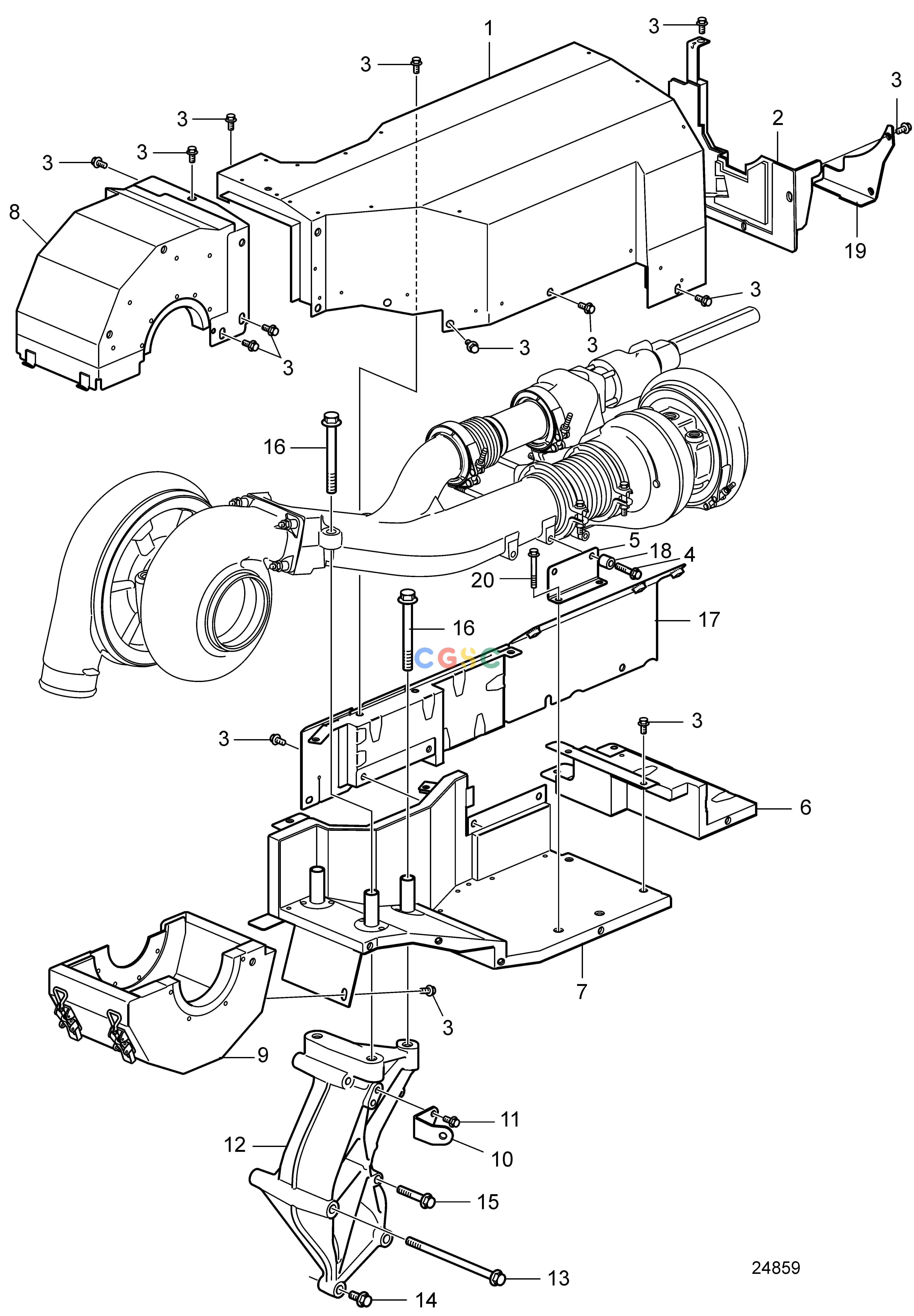

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemHeat Protection for Turbocharger and Exhaust Manifold and TurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21321059
|
[1] |
Heat insulation
|
Replaced by 22855249
|
| 1. |
22855249
|
[1] |
Heat insulation
|
|
| 2. |
21321058
|
[1] |
Heat insulation
|
|
| 3. |
984732
|
[24] |
Flange screw
|
|
| 4. |
994622
|
[2] |
Six point screw
|
|
| 5. |
22958582
|
[1] |
Bracket
|
|
| 6. |
21321057
|
[1] |
Heat insulation
|
|
| 7. |
21389904
|
[1] |
Heat insulation
|
|
| 8. |
21389909
|
[1] |
Heat insulation
|
|
| 9. |
21389911
|
[1] |
Heat insulation
|
|
| 10. |
21153897
|
[1] |
Bracket
|
|
| 11. |
984733
|
[2] |
Flange screw
|
|
| 12. |
3847471
|
[1] |
Bracket
|
|
| 13. |
994401
|
[1] |
Flange screw
|
|
| 14. |
965194
|
[2] |
Flange screw
|
|
| 15. |
984822
|
[1] |
Flange screw
|
|
| 16. |
966369
|
[3] |
Flange screw
|
|
| 17. |
21389900
|
[1] |
Heat insulation
|
|
| 18. |
994626
|
[2] |
Spacer sleeve
|
|
| 19. |
22316856
|
[1] |
Conversion kit
|
SN-2013458048
|
| 19. |
21594762
|
[1] |
Heat insulation
|
SN 2013458049-
|
| 20. |
994383
|
[2] |
Flange screw
|
|
