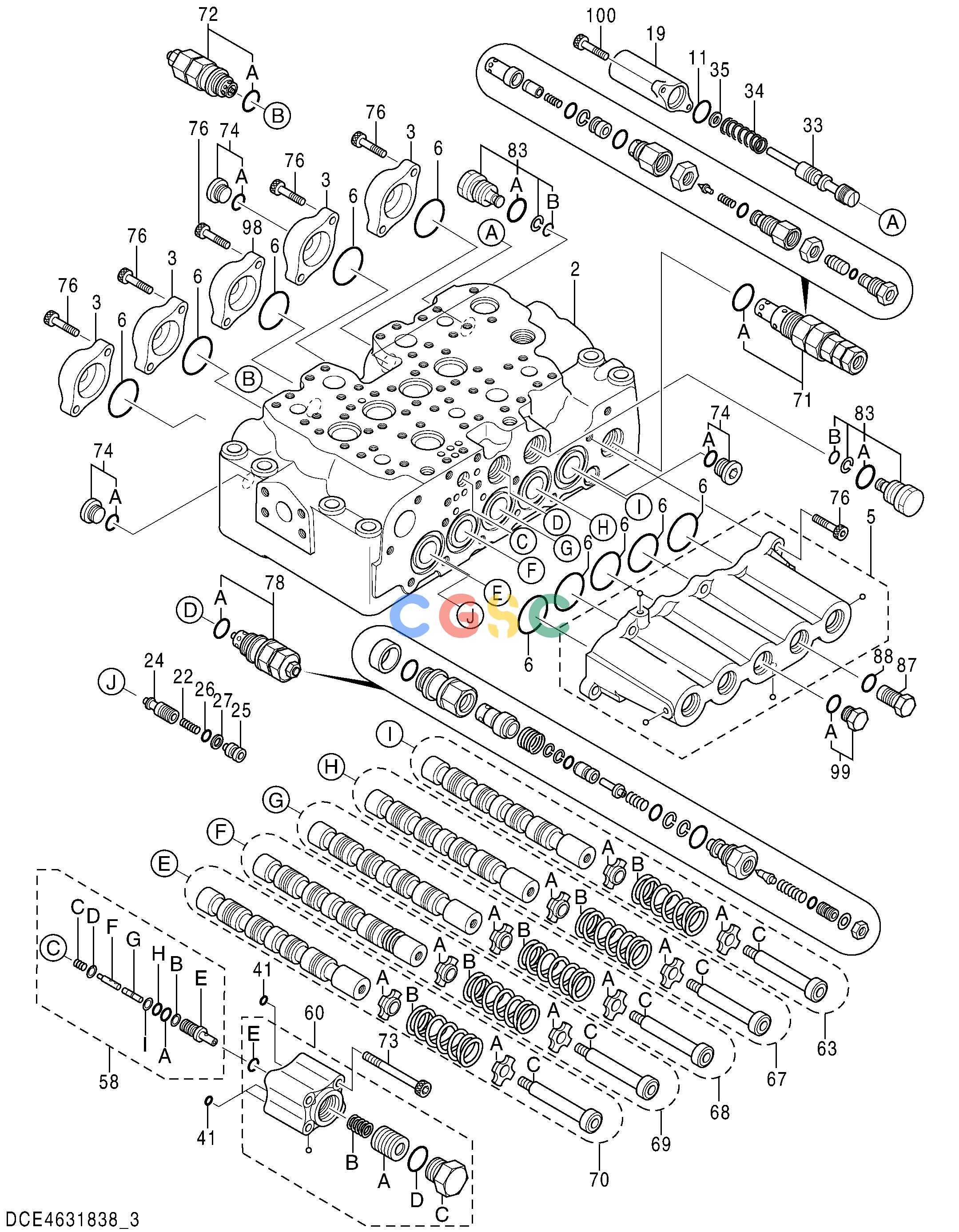

日立零件查询（MA200-G）VALVE;CONTROL (3/5) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4631838 | [1] | VALVE;CONTROL (3/5) | This PART NO. consists of all parts shown in VALVE;CONTROL(1/5) to (5/5). |
| 2. | +++++++ | [1] | HOUSING | |
| 3. | 0791801 | [4] | CAP | |
| 5. | 4454202 | [1] | CAP ASS'Y | |
| 6. | A811045 | [10] | OｰRING | |
| 11. | 4226446 | [1] | O-RING | |
| 19. | 0791803 | [1] | CAP | |
| 22. | 0668007 | [1] | SPRING | |
| 24. | 0791804 | [1] | POPPET | |
| 25. | 0791805 | [1] | SPACER | |
| 26. | 971823 | [1] | OｰRING | |
| 27. | 0332924 | [1] | RING;BACK-UP | |
| 33. | +++++++ | [1] | SPOOL | |
| 34. | 0791817 | [1] | SPRING | |
| 35. | 0791807 | [1] | WASHER | |
| 41. | 4506406 | [3] | O-RING | |
| 58. | 0791818 | [1] | VALVE ASS'Y | |
| 58A. | 971823 | [1] | OｰRING | |
| 58B. | 0332924 | [1] | RING;BACK-UP | |
| 58C. | 0791808 | [1] | SPRING | |
| 58D. | 0791809 | [1] | SEAT;SPRING | |
| 58E. | +++++++ | [1] | SLEEVE | |
| 58F. | +++++++ | [1] | POPPET | |
| 58G. | +++++++ | [1] | SPOOL | |
| 58H. | 4140436 | [1] | OｰRING | |
| 58I. | 4105067 | [1] | RING;BACK-UP | |
| 60. | 4454198 | [1] | BODY ASS'Y | |
| 60A. | 0791813 | [1] | PISTON | |
| 60B. | 0791814 | [1] | SPRING | |
| 60C. | 0111803 | [1] | PLUG | |
| 60D. | 0111804 | [1] | OｰRING | |
| 60E. | 4506320 | [1] | O-RING | |
| 63. | +++++++ | [1] | SPOOL ASS'Y | |
| 63A. | 0306003 | [2] | SEAT;SPRING | |
| 63B. | 0309705 | [1] | SPRING | |
| 63C. | 0791815 | [1] | END;SPOOL | |
| 67. | +++++++ | [1] | SPOOL ASS'Y | |
| 67A. | 0306003 | [2] | SEAT;SPRING | |
| 67B. | 0309705 | [1] | SPRING | |
| 67C. | 0791815 | [1] | END;SPOOL | |
| 68. | +++++++ | [1] | SPOOL ASS'Y | |
| 68A. | 0306003 | [2] | SEAT;SPRING | |
| 68B. | 0309705 | [1] | SPRING | |
| 68C. | 0791815 | [1] | END;SPOOL | |
| 69. | +++++++ | [1] | SPOOL ASS'Y | |
| 69A. | 0306003 | [2] | SEAT;SPRING | |
| 69B. | 0309705 | [1] | SPRING | |
| 69C. | 0791815 | [1] | END;SPOOL | |
| 70. | +++++++ | [1] | SPOOL ASS'Y | |
| 70A. | 0306003 | [2] | SEAT;SPRING | |
| 70B. | 0309705 | [1] | SPRING | |
| 70C. | 0791815 | [1] | END;SPOOL | |
| 71. | 4372038 | [1] | VALVE;RELIEF | |
| 71A. | 4613376 | [1] | O-RING | |
| 72. | 4372039 | [1] | VALVE;RELIEF | |
| 72A. | 4613376 | [1] | O-RING | |
| 73. | 0791622 | [4] | BOLT;SOCKET | |
| 74. | 0695007 | [3] | PLUG ASS'Y | |
| 74A. | 4509180 | [1] | O-RING | |
| 76. | 0459541 | [16] | BOLT;SOCKET | |
| 78. | 4435446 | [1] | VALVE;RELIEF | |
| 78A. | 4613376 | [1] | O-RING | |
| 83. | 0667927 | [2] | PLUG ASS'Y | |
| 83A. | U12547U | [1] | O-RING | |
| 83B. | 4154207 | [1] | O-RING | |
| 87. | 0667931 | [1] | PLUG | |
| 88. | 4509180 | [1] | O-RING | |
| 98. | 0791816 | [1] | CAP | |
| 99. | 0309732 | [1] | PLUG ASS'Y | |
| 99A. | 4509180 | [1] | O-RING | |
| 100. | 0455002 | [2] | BOLT;SOCKET | |
