日立零件查询（MA200-G）VALVE;CONTROL (2/5) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
688 次

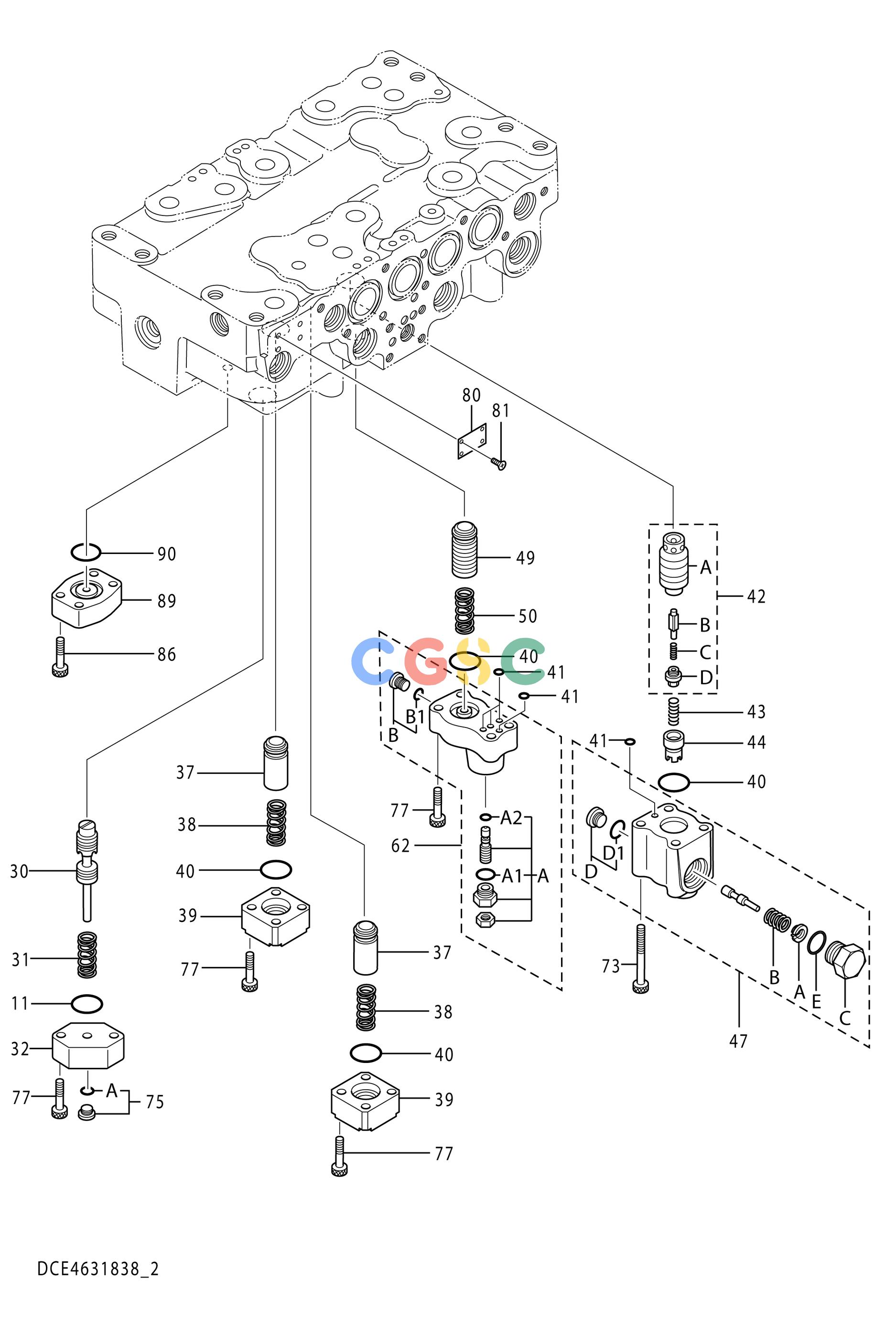

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4631838 | [1] | VALVE;CONTROL (2/5) | This PART NO. consists of all parts shown in VALVE;CONTROL(1/5) to (5/5). |
| 11. | 4226446 | [1] | O-RING | |
| 30. | +++++++ | [1] | SPOOL | |
| 31. | 0791709 | [1] | SPRING | |
| 32. | 0791702 | [1] | FLANGE | |
| 37. | 0791603 | [2] | POPPET | |
| 38. | 0791604 | [2] | SPRING | |
| 39. | 0791605 | [2] | FLANGE | |
| 40. | 985098 | [4] | OｰRING | |
| 41. | 4506406 | [5] | O-RING | |
| 42. | 4454193 | [1] | POPPET ASS'Y | |
| 42A. | 0791704 | [1] | POPPET | |
| 42B. | 0791610 | [1] | POPPET | |
| 42C. | 0791611 | [1] | SPRING | |
| 42D. | 0791612 | [1] | PLUG | |
| 43. | 0791606 | [1] | SPRING | |
| 44. | 0791607 | [1] | SPACER | |
| 47. | 4454196 | [1] | BODY ASS'Y | |
| 47A. | 0791616 | [1] | SEAT;SPRING | |
| 47B. | 0791706 | [1] | SPRING | |
| 47C. | 0791618 | [1] | PLUG | |
| 47D. | 0667817 | [1] | PLUG ASS'Y | |
| 47D1. | 957366 | [1] | O-RING | |
| 47E. | 4506418 | [1] | O-RING | |
| 49. | 0791619 | [1] | POPPET | |
| 50. | 0791620 | [1] | SPRING | |
| 62. | 4454200 | [1] | BODY ASS'Y | |
| 62A. | 0791708 | [1] | VALVE ASS'Y | |
| 62A1. | 957366 | [1] | O-RING | |
| 62A2. | 4506408 | [1] | O-RING | |
| 62B. | 0667713 | [1] | PLUG ASS'Y | |
| 62B1. | 4032996 | [1] | O-RING | |
| 73. | 0791622 | [4] | BOLT;SOCKET | |
| 75. | 0689405 | [1] | PLUG ASS'Y | |
| 75A. | 957366 | [1] | O-RING | |
| 77. | 4720520 | [14] | BOLT;SOCKET | |
| 80. | +++++++ | [1] | NAME-PLATE | |
| 81. | +++++++ | [4] | SCREW;DRIVE | |
| 86. | 0413619 | [4] | BOLT;SOCKET | |
| 89. | 0413712 | [1] | CAP | |
| 90. | 0224422 | [1] | O-RING | |
