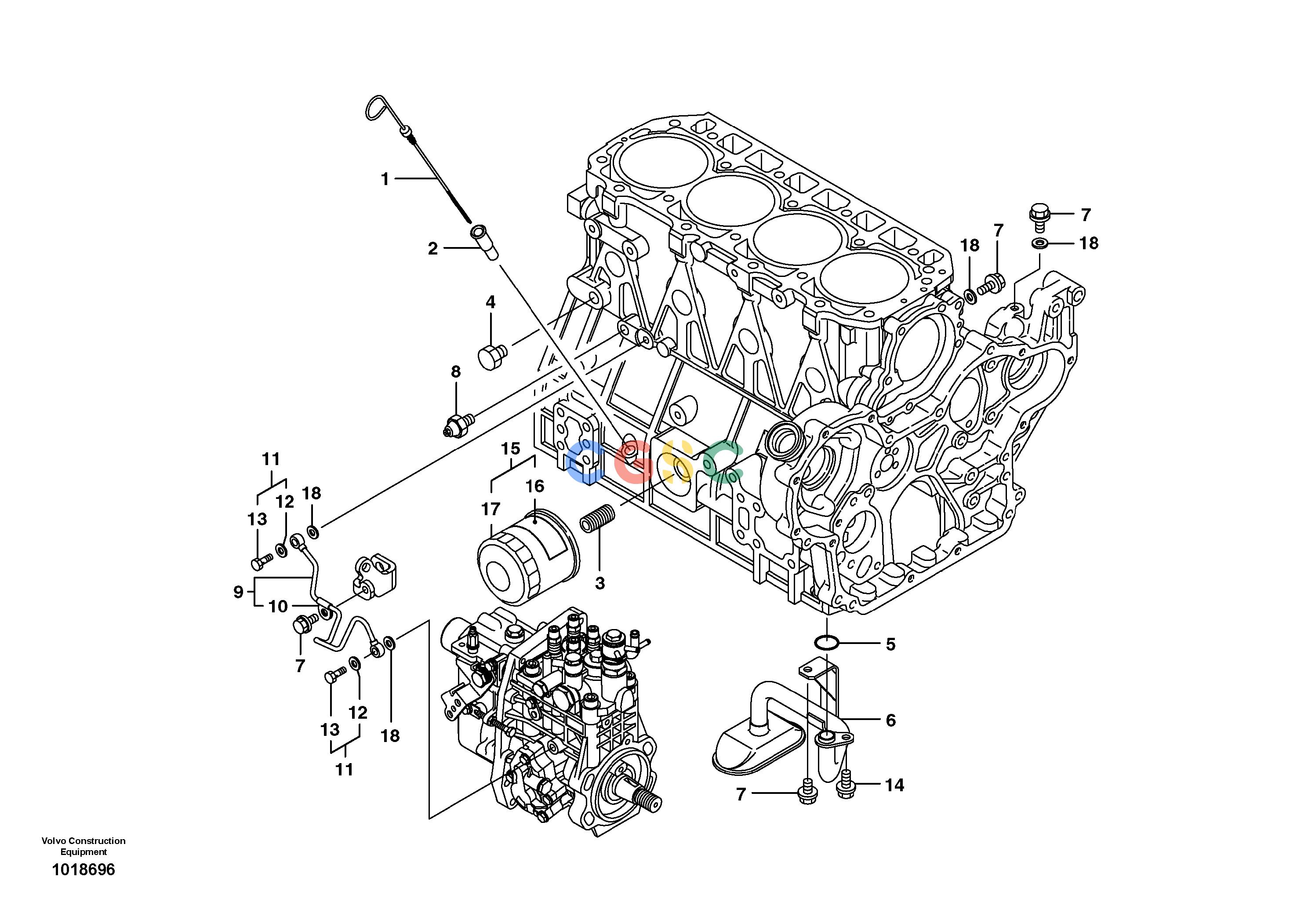

沃尔沃零件查询ECR58 Lubricating oil systemNone8279150-8279151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14543858
|
[1] |
Dipstick
|
SER NO 10001-10733
|
| |
VOE14543858
|
[1] |
Dipstick
|
SER NO 10734-
|
| 2. |
VOE11715318
|
[1] |
Dipstick tube
|
|
| 3. |
VOE11714907
|
[1] |
Fitting
|
|
| 4. |
VOE14543859
|
[1] |
Plug
|
SER NO 10734-
|
| 5. |
VOE11714738
|
[1] |
O-ring
|
|
| 6. |
VOE14525397
|
[1] |
Oil pipe
|
|
| 7. |
VOE11714490
|
[4] |
Bolt
|
SER NO 10001-10733
|
| |
VOE11714490
|
[4] |
Bolt
|
SER NO 10734-
|
| 8. |
VOE14520582
|
[1] |
Switch
|
|
| 9. |
VOE14521570
|
[1] |
Pipe
|
SER NO 10001-10733
|
| |
VOE11714864
|
[1] |
Tube Assembly
|
SER NO 10734-
|
| 10. |
VOE14543860
|
[1] |
Support
|
SER NO 10734-
|
| 11. |
VOE14521571
|
[2] |
Bolt
|
|
| 12. |
VOE11714476
|
[1] |
Sealing washer
|
SER NO 10001-10733
|
| |
VOE11714476
|
[1] |
Sealing washer
|
SER NO 10734-
|
| 13. |
SA8210-05600
|
[1] |
Bolt
|
|
| 14. |
VOE11714372
|
[1] |
Bolt
|
SER NO 10001-10733
|
| |
VOE11714372
|
[1] |
Bolt
|
SER NO 10734-
|
| 15. |
VOE14525396
|
[1] |
Filter
|
SER NO 10001-10733
|
| |
VOE14543861
|
[1] |
Filter
|
SER NO 10734-
|
| 16. |
VOE14543862
|
[1] |
Label
|
SER NO 10734-
|
| 17. |
VOE14523962
|
[1] |
Filter
|
SER NO 10734-
|
| 18. |
VOE11714476
|
[4] |
Sealing washer
|
SER NO 10001-10733
|
| |
VOE11714476
|
[4] |
Sealing washer
|
SER NO 10734-
|
