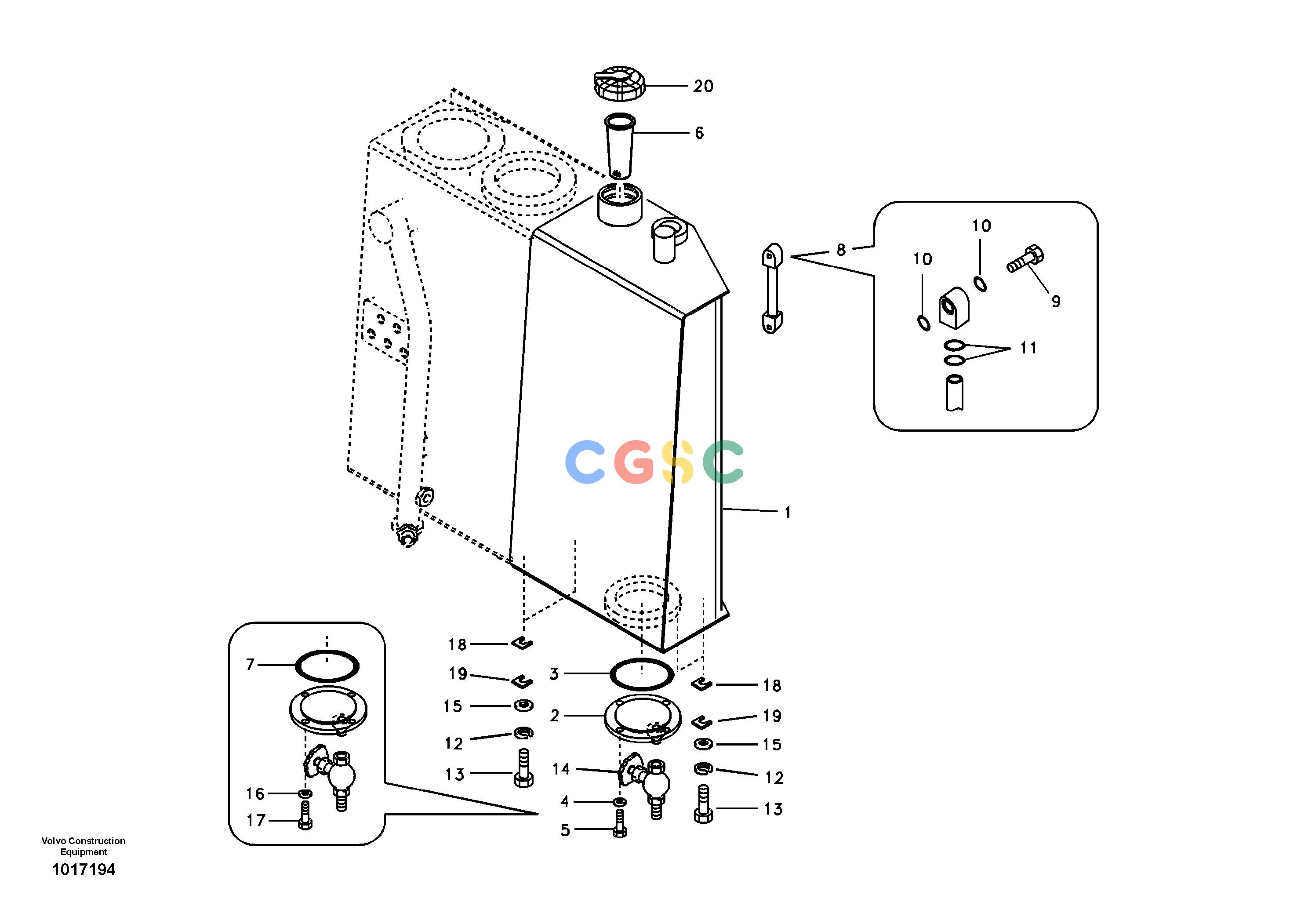

沃尔沃零件查询ECR58 Fuel tank with fitting partsNone8278696-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14528923
|
[1] |
Fuel tank
|
SER NO 10001-11423
|
| |
VOE14588222
|
[1] |
Fuel tank
|
SER NO 11424-
|
| 2. |
VOE14528924
|
[1] |
Cover
|
|
| 3. |
SA990597
|
[1] |
O-ring
|
SER NO 10412-
|
| 4. |
VOE992040
|
[4] |
Plain washer
|
SER NO 10412-
|
| 5. |
VOE983251
|
[4] |
Hexagon screw
|
SER NO 10412-
|
| 6. |
VOE14527687
|
[1] |
Fuel Filter
|
|
| 7. |
VOE990597
|
[1] |
O-ring
|
SER NO 10001-10411
|
| 8. |
VOE14519246
|
[1] |
Gauge
|
SER NO 10001-10583
|
| |
VOE14539978
|
[1] |
Gauge
|
SER NO 10584-
|
| 9. |
VOE14517557
|
[2] |
Bolt
|
|
| 10. |
VOE983496
|
[4] |
O-ring
|
|
| 11. |
VOE990557
|
[4] |
O-ring
|
|
| 12. |
VOE955923
|
[4] |
Spring washer
|
|
| 13. |
VOE978933
|
[4] |
Hexagon screw
|
|
| 14. |
VOE14510697
|
[1] |
Shut-off Cock
|
|
| 15. |
VOE992042
|
[4] |
Plain washer
|
SER NO 10001-10411
|
| |
VOE14522862
|
[4] |
Washer
|
SER NO 10412-
|
| 16. |
VOE992040
|
[4] |
Plain washer
|
SER NO 10001-10411
|
| 17. |
VOE983251
|
[4] |
Hexagon screw
|
SER NO 10001-10411
|
| 18. |
SA1040-20290
|
[3] |
Shim
|
|
| 19. |
SA1040-20270
|
[4] |
Shim
|
|
| 20. |
VOE14523944
|
[1] |
Cap
|
|
