日立零件查询（MA200-G）VALVE;CONTROL (5/5) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
504 次

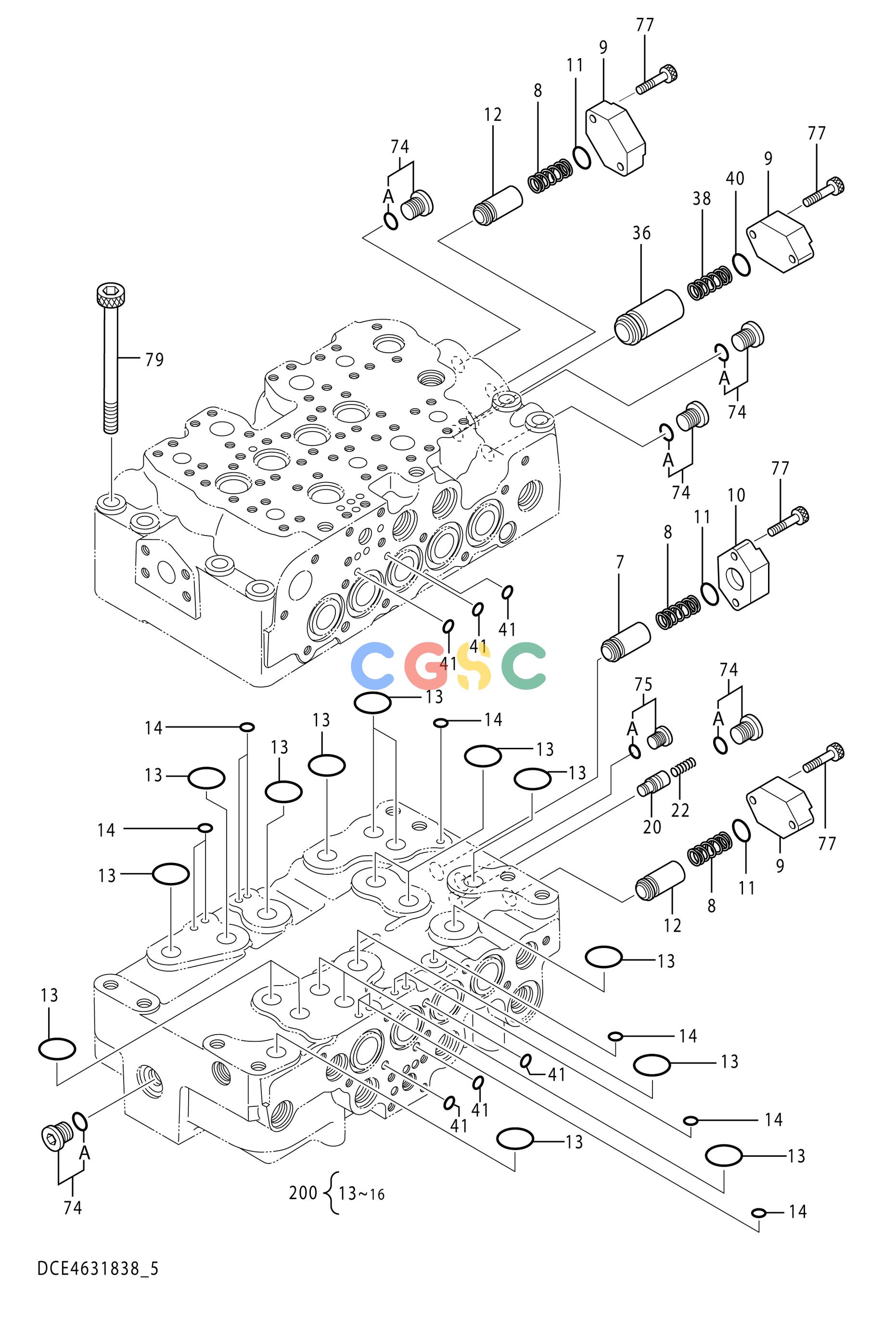

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4631838 | [1] | VALVE;CONTROL (5/5) | This PART NO. consists of all parts shown in VALVE;CONTROL(1/5) to (5/5). |
| 7. | 0668111 | [1] | POPPET | |
| 8. | 0668112 | [3] | SPRING | |
| 9. | 0791601 | [3] | FLANGE | |
| 10. | 0792001 | [1] | FLANGE | |
| 11. | 4226446 | [3] | O-RING | |
| 12. | 0792002 | [2] | POPPET | |
| 13. | 0976602 | [16] | O-RING | |
| 14. | 0792004 | [10] | O-RING | |
| 20. | 0792005 | [1] | POPPET | |
| 22. | 0668007 | [1] | SPRING | |
| 36. | 0792006 | [1] | POPPET | |
| 38. | 0791604 | [1] | SPRING | |
| 40. | 985098 | [1] | OｰRING | |
| 41. | 4506406 | [6] | O-RING | |
| 74. | 0695007 | [5] | PLUG ASS'Y | |
| 74A. | 4509180 | [1] | O-RING | |
| 75. | 0689405 | [1] | PLUG ASS'Y | |
| 75A. | 957366 | [1] | O-RING | |
| 77. | 4720520 | [8] | BOLT;SOCKET | |
| 79. | 0792007 | [8] | BOLT;SOCKET | |
| 200. | 4648302 | [1] | KIT;SEAL | |
