日立零件查询（MA200-G）VALVE;PILOT Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
982 次

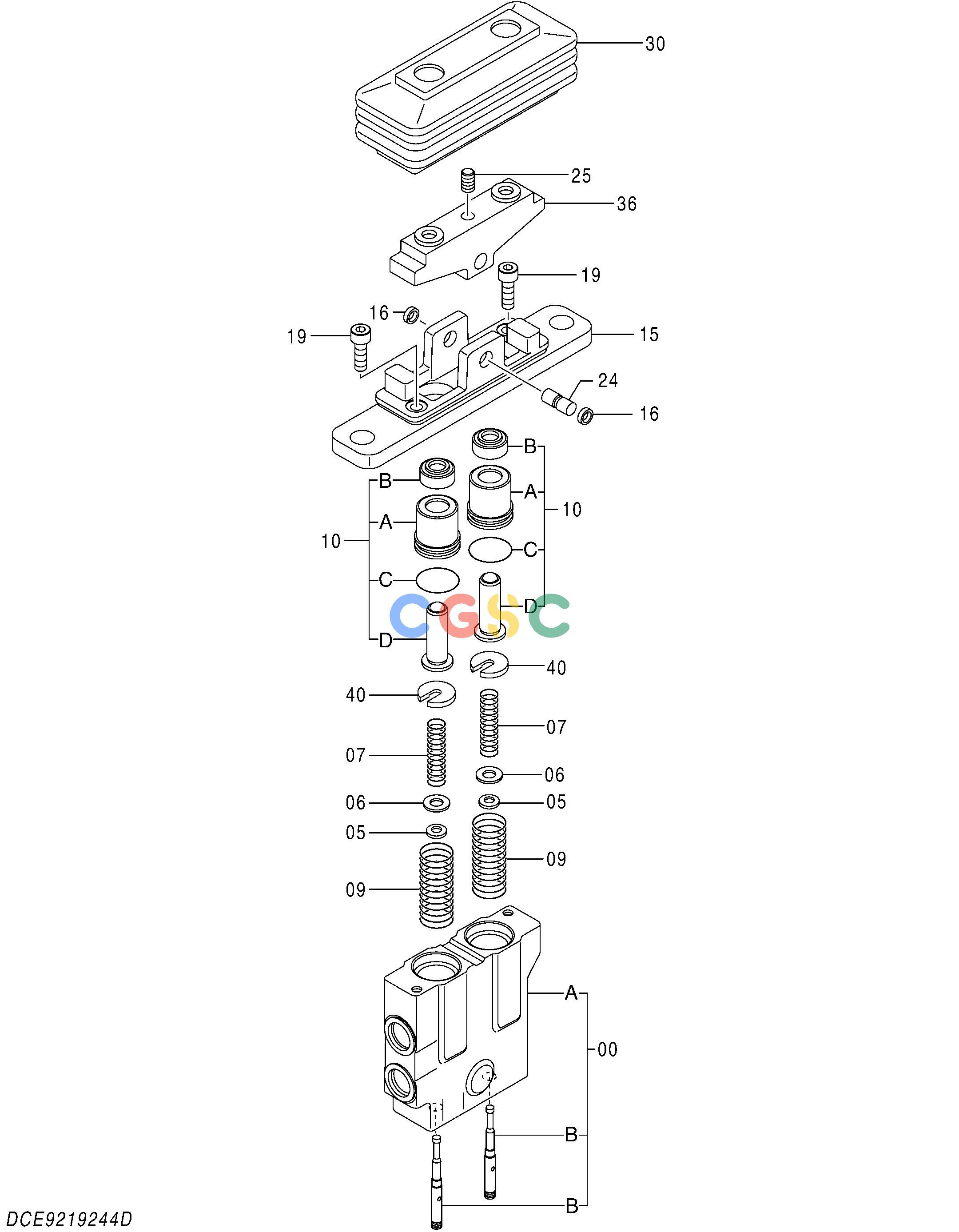

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9219244 | [1] | VALVE;PILOT | |
| 00. | 8088591 | [1] | CASING | |
| 00A. | +++++++ | [1] | CASING | |
| 00B. | +++++++ | [2] | SPOOL | |
| 05. | 4319299 | [2] | SPACER | |
| 06. | 4203411 | [6] | SHIM | (t=0.1mm) |
| 07. | 4474214 | [2] | SPRING;COMPRES. | |
| 09. | 4481334 | [2] | SPRING;COMPRES. | |
| 10. | 9214706 | [2] | PUSHER;ASSY | |
| 10A. | 3095375 | [1] | BUSHING | |
| 10B. | 4447050 | [1] | SEAL;OIL | |
| 10C. | 4269615 | [1] | O-RING | |
| 10D. | 9758896 | [1] | PUSHER | |
| 15. | 2048256 | [1] | HOLDER | |
| 16. | 4480261 | [2] | BUSHING | |
| 19. | J780625 | [2] | BOLT;SOCKET | |
| 24. | 4474217 | [1] | PIN | |
| 25. | 4209728 | [1] | SCREW;SET | |
| 30. | 2048374 | [1] | BOOT | |
| 36. | 4609781 | [1] | CAM | |
| 40. | 4682361 | [2] | GUIDE;SPRING | |
