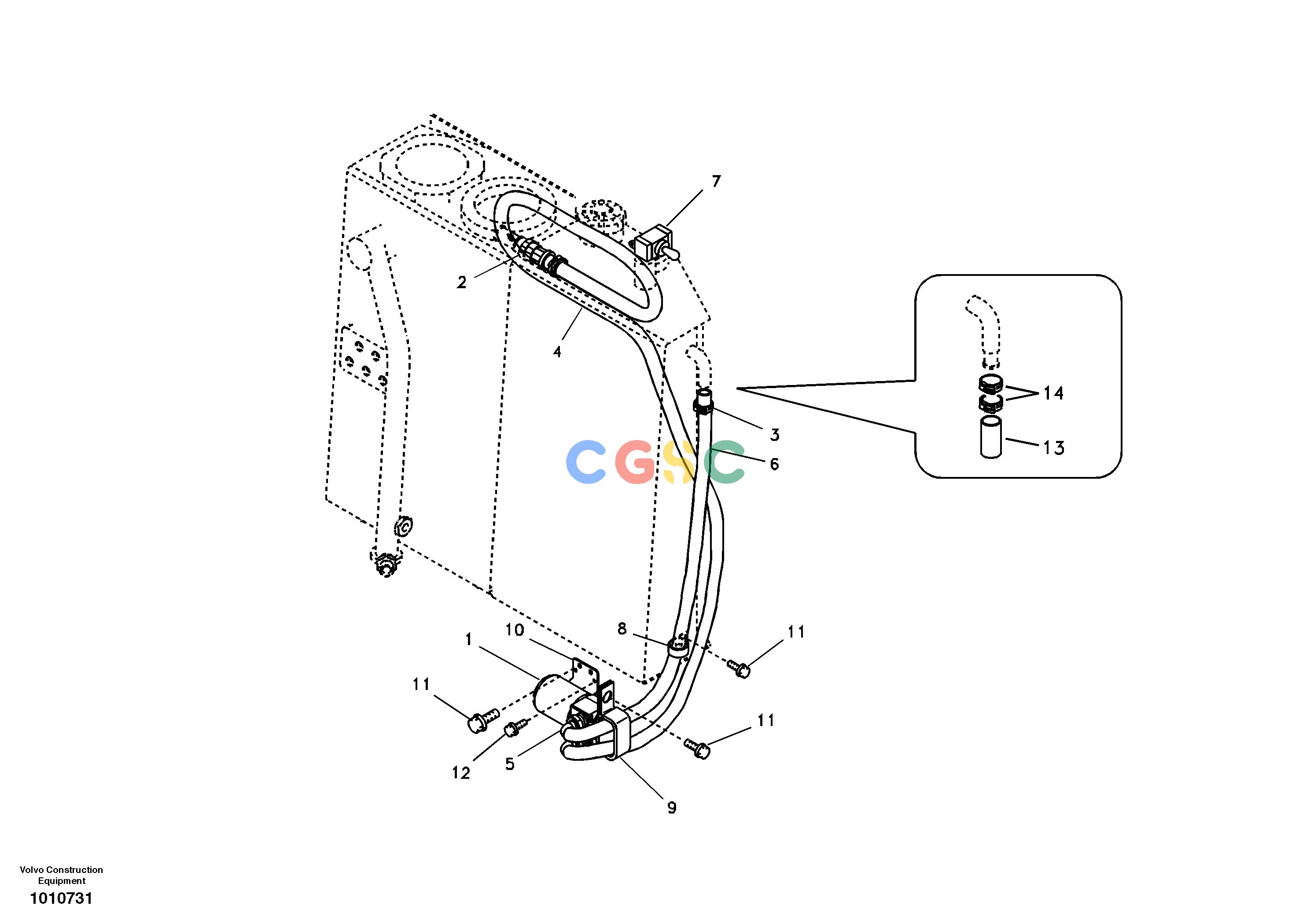

沃尔沃零件查询ECR58 Fuel filling pumpNone8279152-8279153NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
872 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14524110
|
|
Refuelling pump
|
35LPM
|
| 1. |
VOE14517821
|
|
Refuelling pump
|
|
| 2. |
VOE14517753
|
|
Valve
|
|
| 3. |
VOE14517754
|
|
Clip
|
|
| 4. |
VOE14517808
|
|
Hose
|
SER NO 10001-11078
|
| |
VOE14547766
|
|
Hose
|
SER NO 11079-
|
| 5. |
VOE14524111
|
|
Elbow
|
|
| 6. |
VOE14543971
|
|
Hose
|
SER NO 10001-11078
|
| |
VOE14543971
|
|
Hose
|
SER NO 11079-
|
| 7. |
VOE14663553
|
|
Toggle switch
|
|
| 8. |
VOE14500297
|
|
Clip
|
|
| 9. |
VOE14507451
|
|
Clip
|
|
| 10. |
VOE14526321
|
|
Bracket
|
|
| 11. |
VOE946471
|
|
Flange screw
|
|
| 12. |
VOE946544
|
|
Flange screw
|
|
| 13. |
VOE14529315
|
[1] |
Grommet
|
|
| 14. |
VOE943473
|
[2] |
Hose clamp
|
|
