纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (03-04) - FUEL TANK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
679 次

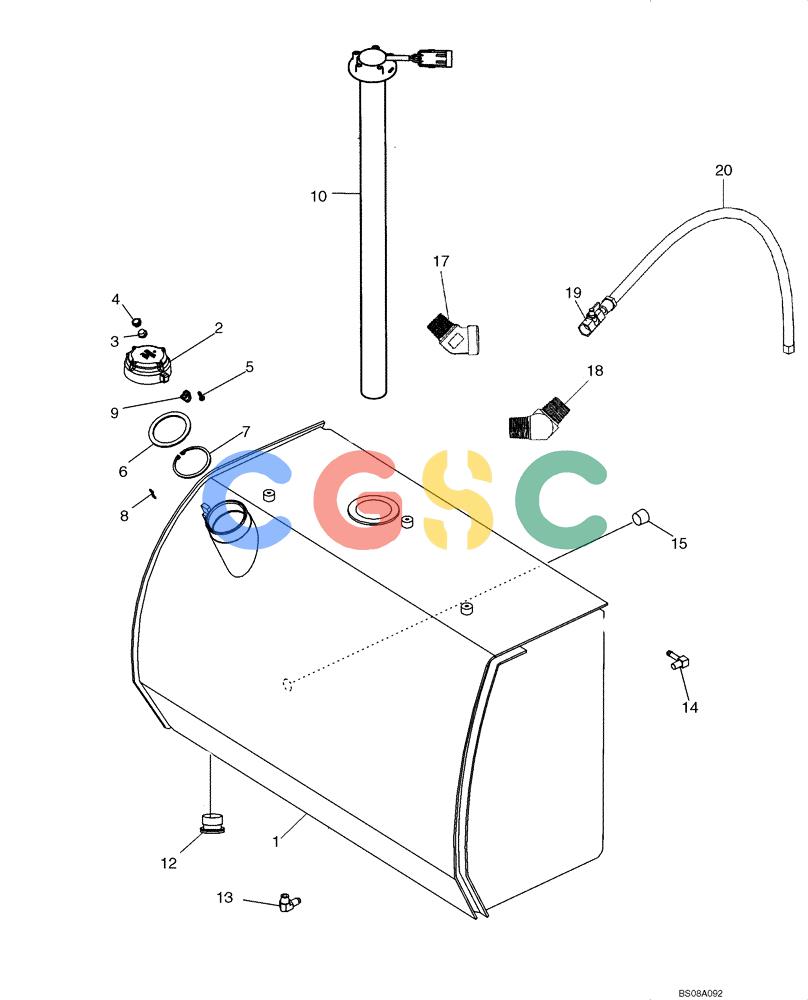

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87695123 | [1] | FUEL TANK | BURFUEL TANK, Complete Incl 1 - 14 Superseded by part number: 87498880 |
| 2. | 84267002 | [1] | CAP | BHBCAP, FILLER, Incl. Ref 3 - 5 |
| 3. | A50096 | [1] | VALVE | CASRelief; Use With Loctite 592 Superseded by part number: 572820 |
| 4. | R57888 | [1] | FILTER | CASUse With Loctite 592 |
| 5. | 301-14712 | [1] | SCREW,Drive, #12 x 3/4" | CASUse with Loctite No. 242 |
| 6. | R49868 | [1] | GASKET,72mm ID x 90mm OD x 3mm Thk | CASRubber |
| 7. | 103-21300 | [1] | SNAP RING,3.00", Int, #300 | CAS |
| 8. | R47786 | [1] | CHAIN (CE) | CAS241 mm (9-1/2 in) |
| 9. | R48634 | [1] | FASTENER | CASHook |
| 10. | 87583890 | [1] | SENDER UNIT | BURFuel Level |
| 12. | 86512333 | [1] | PLUG | SASPLUG, Drain, 1-1/4 PT; Use With Loctite 592 |
| 13. | 86977972 | [1] | FITTING,90º, 1/2" Hose x 3/4"-16 ORB Beaded | BEL |
| 14. | 217-347 | [1] | FITTING,90º, 3/8" Hose x 9/16"-18 ORB Beaded | CAS |
| 15. | 217-465 | [1] | DRAIN PLUG,Hex Soc, 1/2"-14, NPTF | CASUse with Loctite 243 |
| 17. | 217-1086 | [1] | 45 ELBOW,45º, 1/2"-14 Female x 1/2"-14 Male | CAS |
| 18. | 217-1209 | [1] | ELBOW | BUR |
| 19. | 86984713 | [1] | SHUT-OFF VALVE | BUR |
| 20. | 87413240 | [1] | HOSE ASSY. | CASDrain |
