纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (03-03) - FILTER, FUEL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
895 次

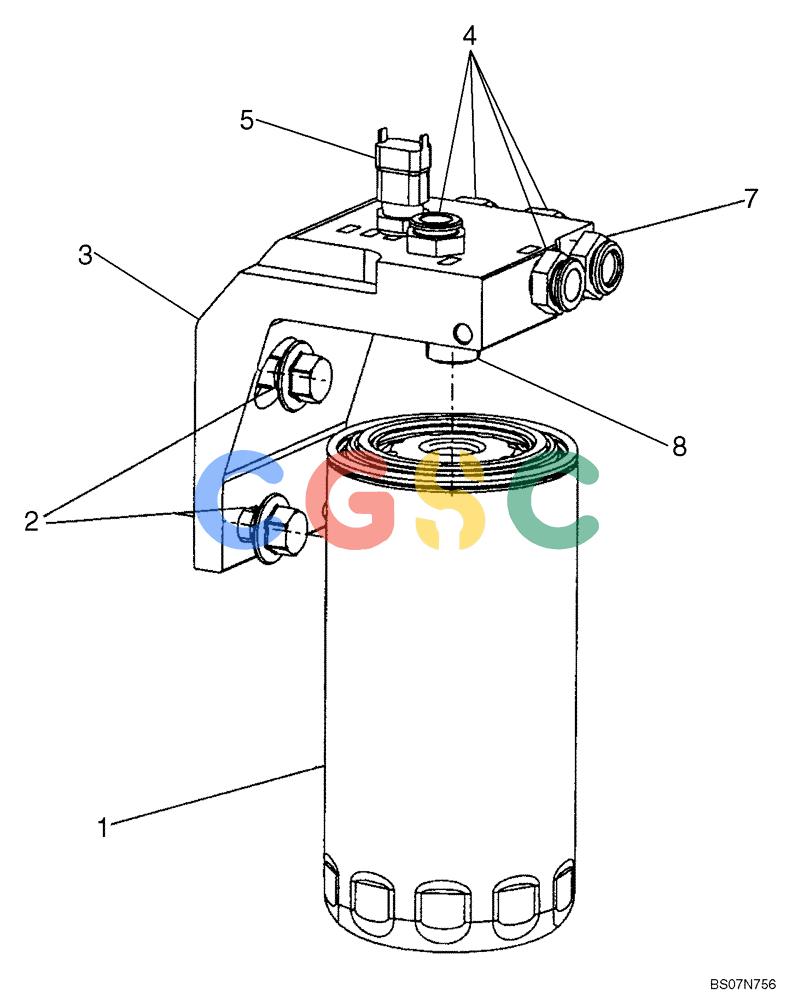

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87803197 | [1] | FUEL FILTER | BAS Superseded by part number: 84412164 |
| 2. | 2854566 | [2] | SCREW | TORM12 x 1.75 x 30 Superseded by part number: 2856035 |
| . . | 2855792 | [1] | FILTER HEAD | TORAssy, w/Heater, Incl. Ref 3 - 8 |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CONSUPPORT, Fuel Filter Head |
| 4. | 2854563 | [4] | FITTING | TOR Superseded by part number: 504210082 |
| 5. | 4897224 | [1] | SENSOR | TORTemperature |
| 7. | 2854564 | [1] | FITTING | TOR |
| 8. | 4898877 | [1] | FITTING | TORThreaded Connector Superseded by part number: 2855792 |
