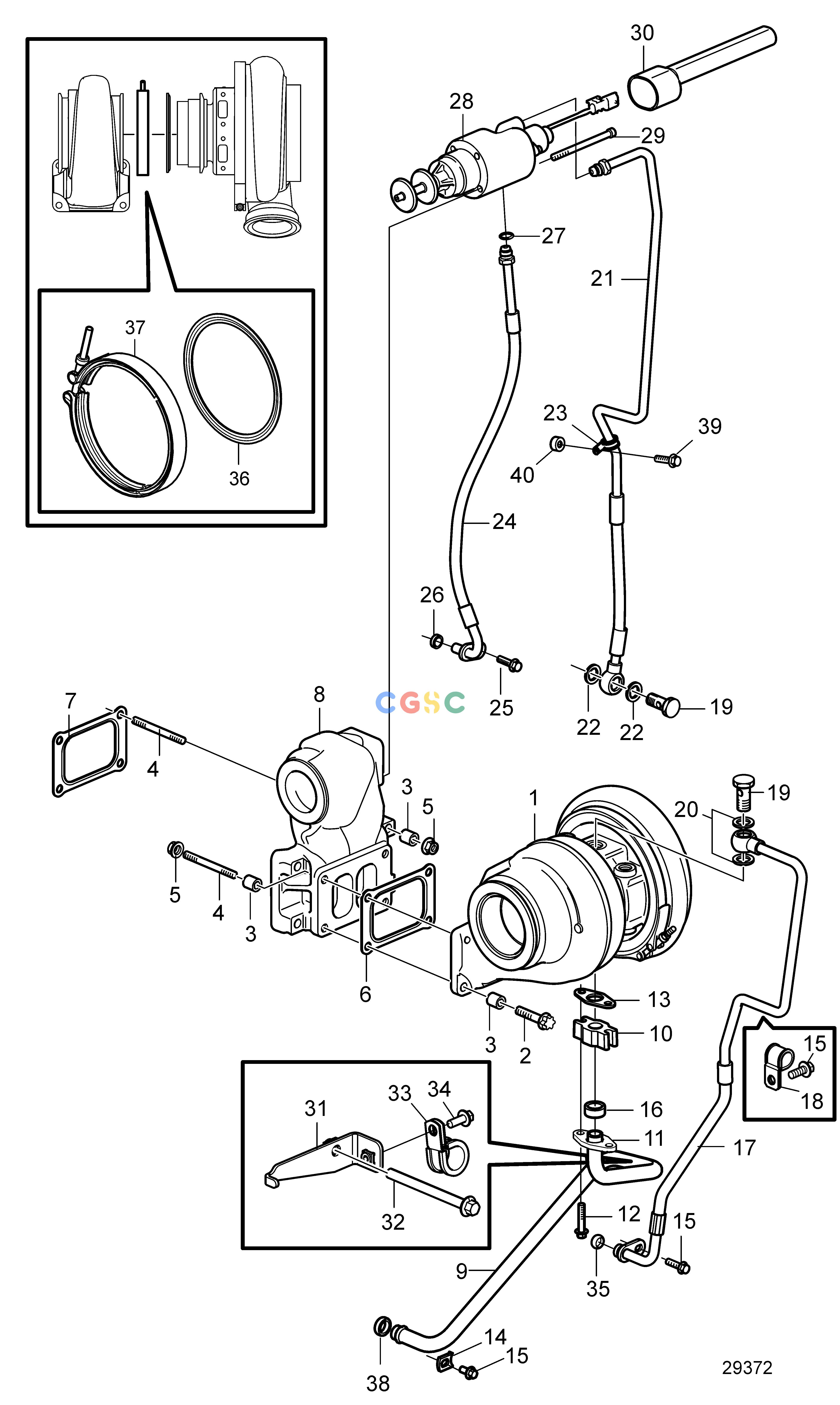

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemTurbocharger, Front. Wastegate Valve. SN2013458049-2013701762EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801420
|
[1] |
Turbocharger
|
Replaced by 3801648
|
| 1. |
3801648
|
[1] |
Turbocharger, exch
|
|
| 1. |
|
|
|
|
| 2. |
994623
|
[2] |
Six point screw
|
|
| 3. |
994627
|
[8] |
Spacer sleeve
|
|
| 4. |
994007
|
[6] |
Stud
|
|
| 5. |
994628
|
[6] |
Flange nut
|
|
| 6. |
21514427
|
[1] |
Gasket
|
Replaced by 22707544
|
| 6. |
22707544
|
[1] |
Gasket
|
|
| 7. |
21514422
|
[1] |
Gasket
|
Replaced by 22707542
|
| 7. |
22707542
|
[1] |
Gasket
|
|
| 8. |
21280018
|
[1] |
Valve housing
|
Replaced by 22222785
|
| 8. |
22222785
|
[1] |
Valve housing
|
|
| 9. |
22316856
|
[1] |
Conversion kit
|
SN-2013458048, With pipe
|
| 9. |
21463672
|
[1] |
Oil return pipe
|
SN 2013458049-
|
| 10. |
8148729
|
[1] |
Connector
|
|
| 11. |
469543
|
[1] |
Pipe flange
|
|
| 12. |
984738
|
[2] |
Flange screw
|
|
| 13. |
470993
|
[1] |
Gasket
|
|
| 14. |
1546531
|
[1] |
Lock brace
|
|
| 15. |
984733
|
[3] |
Flange screw
|
|
| 16. |
469601
|
[1] |
Rubber moulding
|
|
| 17. |
21463675
|
[1] |
Pressure hose
|
SN 2013458049-
|
| 17. |
22316856
|
[1] |
Conversion kit
|
SN-2013458048, With hose
|
| 18. |
952629
|
[1] |
Clamp
|
SN-2013458048
|
| 18. |
20450867
|
[1] |
Clamp
|
SN 2013458049-
|
| 19. |
190714
|
[1] |
Hollow screw
|
|
| 20. |
11998
|
[2] |
Gasket
|
|
| 21. |
3889673
|
[1] |
Oil return pipe
|
|
| 22. |
976931
|
[2] |
Gasket
|
|
| 23. |
949746
|
[1] |
Clamp
|
|
| 24. |
21349349
|
[1] |
Oil hose
|
Replaced by 22961305
|
| 24. |
22961305
|
[1] |
Oil hose
|
Replaced by 23084959
|
| 24. |
23084959
|
[1] |
Oil hose
|
SN2013660339-
|
| 25. |
949853
|
[1] |
Flange screw
|
|
| 26. |
21940610
|
[1] |
Sealing ring
|
|
| 27. |
976971
|
[1] |
O-ring
|
|
| 28. |
21488173
|
[1] |
By-pass valve
|
Replaced by next part number
|
| 28. |
22298262
|
[1] |
By-pass valve
|
|
| 29. |
|
|
|
|
| 30. |
21253174
|
[1] |
Tube
|
|
| 31. |
21674042
|
[1] |
Bracket
|
SN 2013458049-
|
| 32. |
984743
|
[1] |
Flange screw
|
SN 2013458049-
|
| 33. |
1545432
|
[1] |
Attaching clamp
|
SN 2013458049-
|
| 34. |
984725
|
[1] |
Flange screw
|
SN 2013458049-
|
| 35. |
21940610
|
[1] |
Sealing ring
|
|
| 36. |
21853085
|
[1] |
Seal
|
SN2013550730-
|
| 37. |
21756649
|
[1] |
V-clamp
|
|
| 38. |
21940615
|
[1] |
Sealing ring
|
|
| 39. |
984753
|
[1] |
Flange screw
|
|
| 40. |
842930
|
[1] |
Spacer sleeve
|
|
