沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemTurbocharger, RearEPC Volvo Penta Parts catalog

广数供应链运营团队, 14 02月, 2025，浏览： 196 次

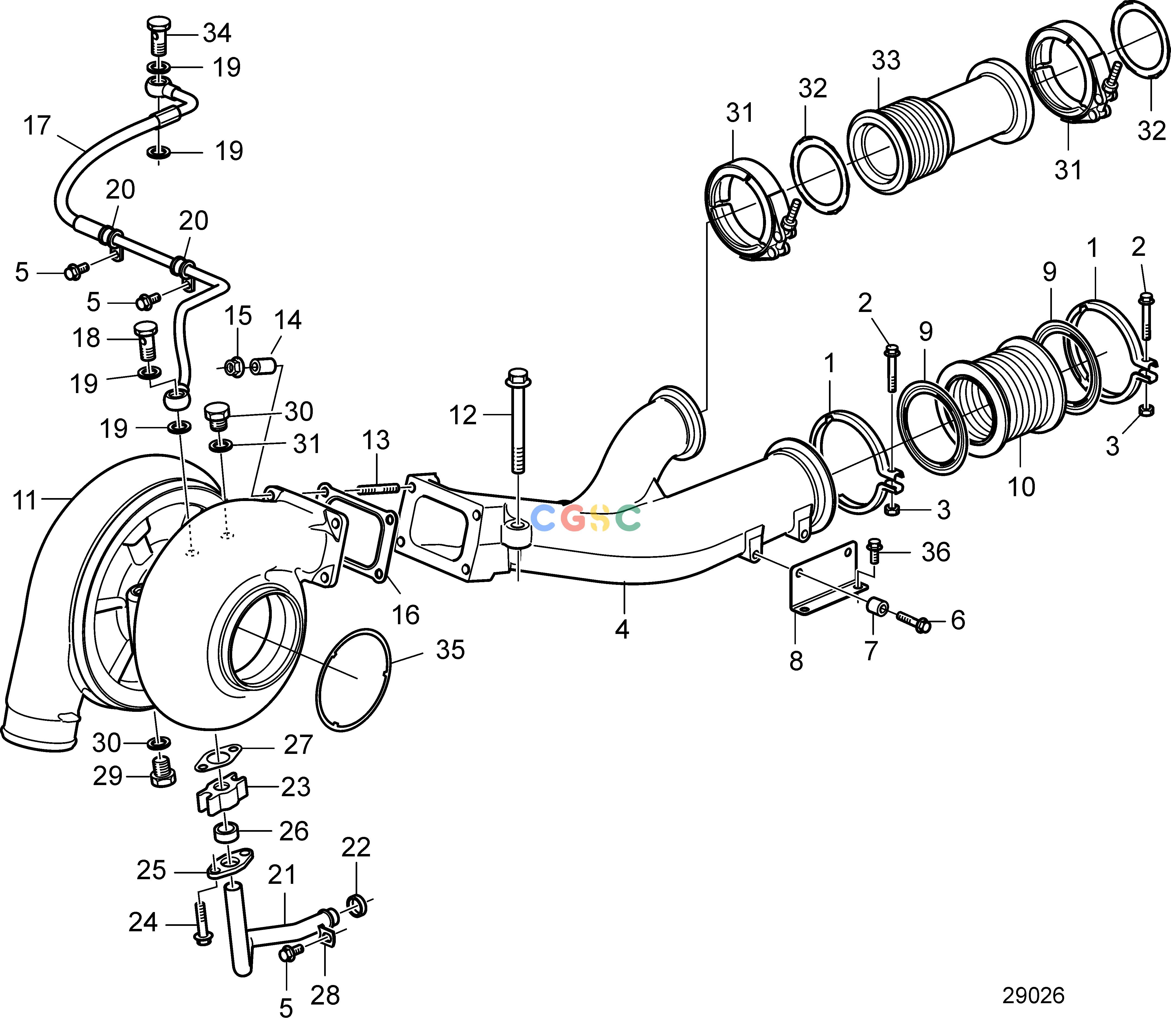

Pos.	Part No	Qty	Parts name	Comments
1.	21484815	[2]	V-clamp
2.	994441	[2]	Flange screw
3.	990940	[2]	Flange nut
4.	21840589	[1]	Exhaust pipe	SN-2013696000
4.	23006312	[1]	Exhaust pipe	SN2013696001-
5.	984732	[2]	Flange screw
6.	994622	[2]	Six point screw
7.	994626	[2]	Spacer sleeve
8.	22958582	[1]	Bracket
9.	21269861	[2]	Gasket
10.	3840550	[1]	Exhaust pipe
11.	3801318	[1]	Turbocharger
11.
12.	994625	[3]	Flange screw
13.	994741	[4]	Stud
14.	994627	[4]	Spacer sleeve
15.	994628	[4]	Flange nut
16.	21514422	[1]	Gasket	Replaced by 22707542
16.	22707542	[1]	Gasket
17.	21427971	[1]	Pressure hose	For D13C4-A MP,Replaced by 22741441
17.	21382624	[1]	Pressure hose	For D13C2-MP,Replaced by 22741441
17.	22741441	[1]	Pressure hose
18.	190713	[1]	Hollow screw
19.	20852765	[4]	Sealing ring
20.	949746	[2]	Clamp	For D13C2-A MP
21.	3889671	[1]	Oil return pipe
22.	1547255	[1]	Sealing ring	Replaced by 21940615
22.	21940615	[1]	Sealing ring
23.	21252519	[1]	Connector
24.	984755	[2]	Flange screw
25.	21252482	[1]	Flange
26.	469601	[1]	Rubber moulding
27.	1543360	[1]	Gasket
28.	1546531	[1]	Lock brace
29.	960632	[2]	Plug
30.	11998	[2]	Gasket
31.	20755169	[2]	V-clamp
32.	20841816	[2]	Gasket
33.	21310252	[1]	Pipe connection
34.	190713	[1]	Hollow screw	SN-2013606819 SN2013616469-
34.	991046	[1]	Hollow screw	SN2013606820-2013616468
35.	22869572	[1]	Gasket
36.	994383	[2]	Flange screw
