日立零件查询（MA200-G）VALVE;PILOT (FRONT, SWING) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
489 次

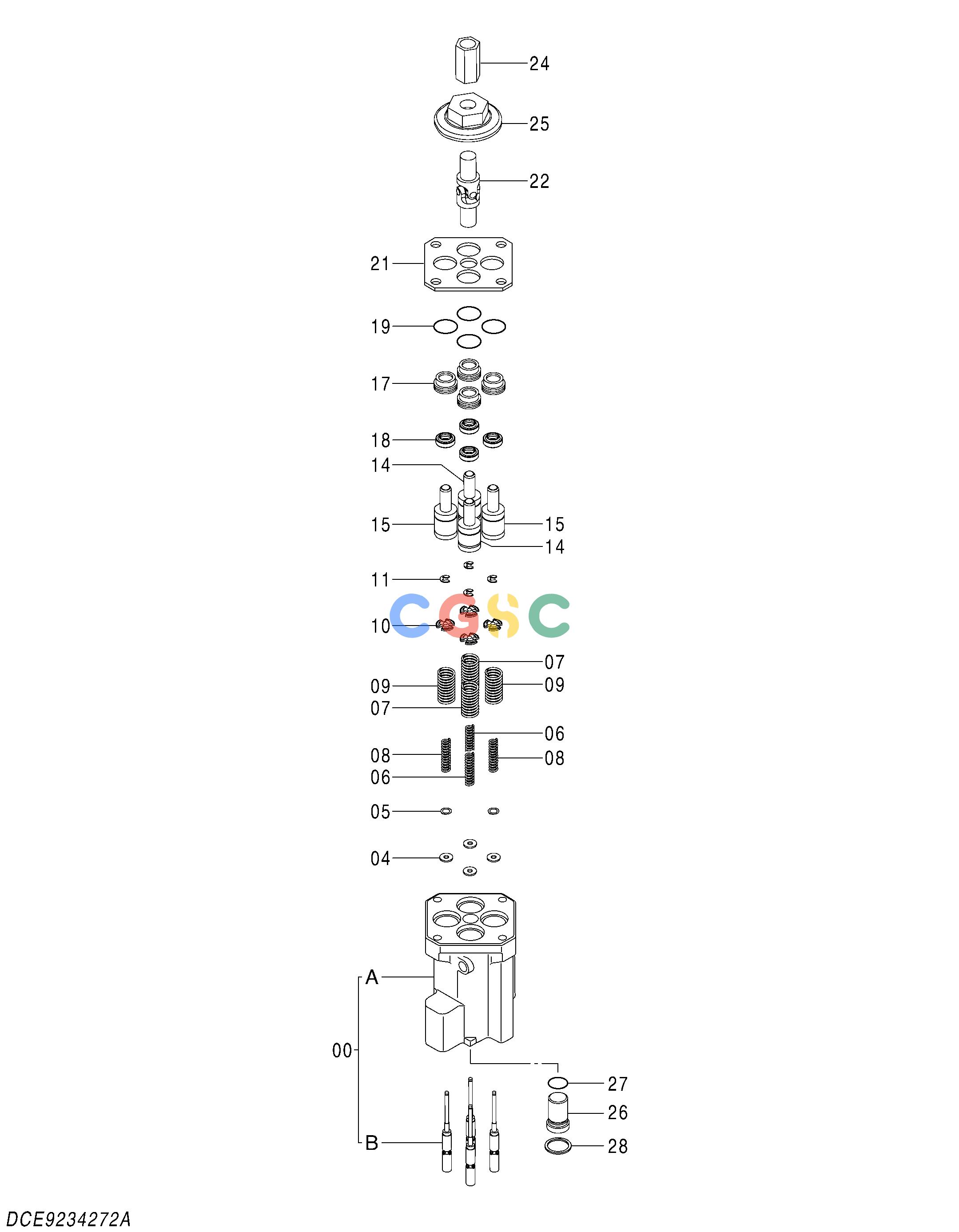

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9234272 | [1] | VALVE;PILOT | I9239583 |
| | 9239583 | [1] | VALVE;PILOT | |
| 00. | 8094446 | [1] | CASING | |
| 00A. | +++++++ | [1] | CASING | |
| 00B. | +++++++ | [4] | SPOOL | |
| 04. | 4410898 | [4] | SPACER | |
| 05. | 4662206 | [2] | SHIM | (t=0.1mm) |
| 06. | 4429120 | [2] | SPRING;COMPRES. | |
| 07. | 4446960 | [2] | SPRING;COMPRES. | |
| 08. | 4425414 | [2] | SPRING;COMPRES. | |
| 09. | 4421771 | [2] | SPRING;COMPRES. | |
| 10. | 4615610 | [4] | GUIDE;SPRING | |
| 11. | 4437333 | [4] | RING;RETAINING | |
| 14. | 9759157 | [2] | PUSHER | |
| 15. | 9759158 | [2] | PUSHER | |
| 17. | 4614295 | [4] | SLEEVE | |
| 18. | 4477852 | [4] | SEAL;OIL | |
| 19. | 4201993 | [4] | O-RING | |
| 21. | 4614296 | [1] | PLATE | |
| 22. | 4335060 | [1] | JOINT;UNIVERSAL | |
| 24. | 4182067 | [1] | JOINT;SCREW | |
| 25. | 4639115 | [1] | CAM | |
| 26. | 4614286 | [1] | PLUG | |
| 27. | 4170585 | [1] | O-RING | |
| 28. | 4614331 | [1] | RING;RETAINING | |
