日立零件查询（MA200-G）VALVE;PILOT (TRAVEL) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
886 次

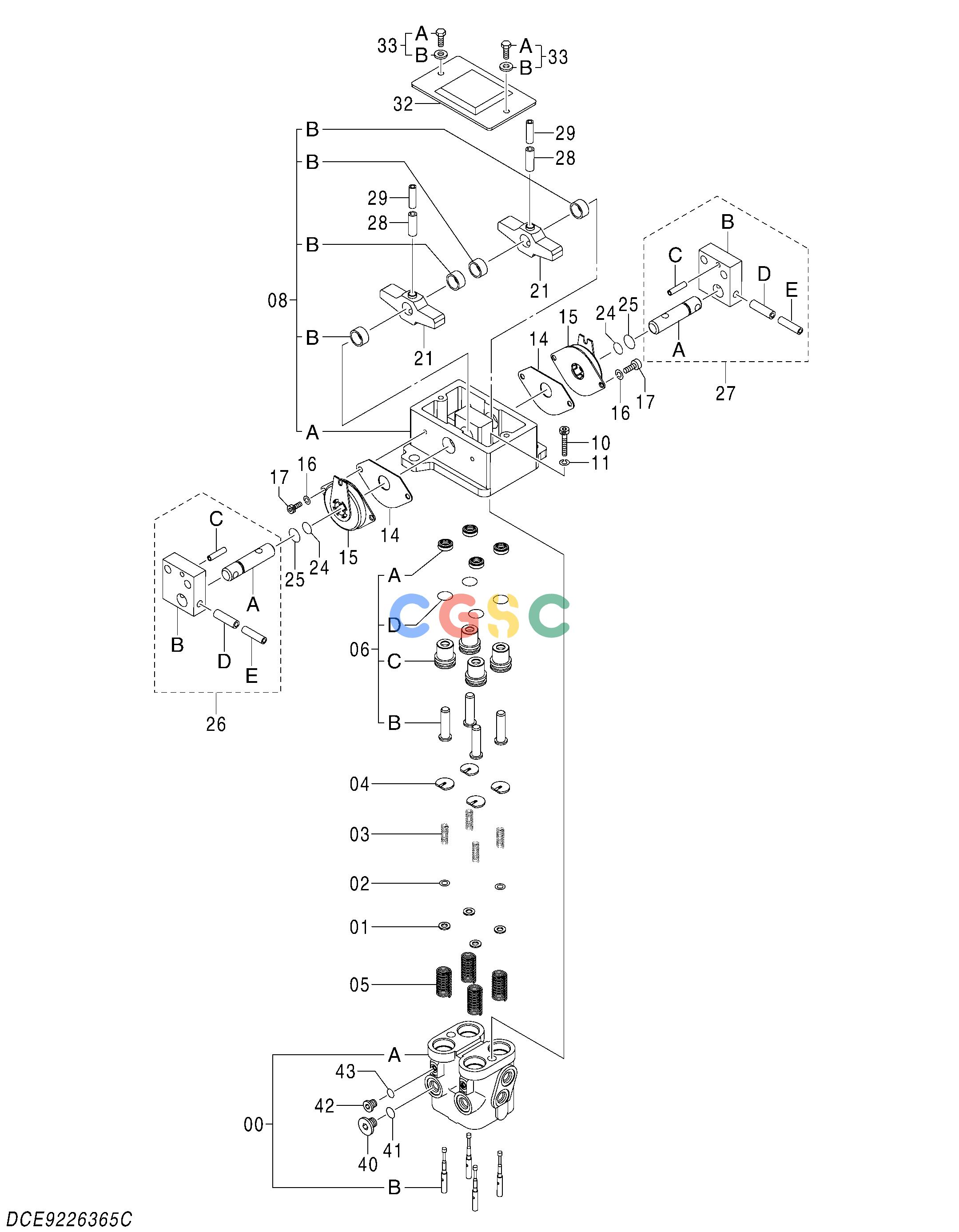

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9226365 | [1] | VALVE;PILOT | I9235551 |
| | 9235551 | [1] | VALVE;PILOT | |
| 00. | 8092248 | [1] | CASING | |
| 00A. | +++++++ | [1] | CASING | |
| 00B. | +++++++ | [4] | SPOOL | |
| 01. | 4319299 | [4] | SPACER | |
| 02. | 4203411 | [2] | SHIM | (t=0.1mm) |
| 03. | 4368629 | [4] | SPRING;COMPRES. | |
| 04. | 4364970 | [4] | GUIDE;SPRING | |
| 05. | 4368630 | [4] | SPRING;COMPRES. | |
| 06. | 9226367 | [4] | PUSHER;ASSY | |
| 06A. | 4447050 | [1] | SEAL;OIL | |
| 06B. | 4602154 | [1] | PUSHER | |
| 06C. | 3099628 | [1] | BUSHING | |
| 06D. | 4201993 | [1] | O-RING | |
| 08. | 9184275 | [1] | HOLDER | |
| 08A. | 2044332 | [1] | HOLDER | |
| 08B. | 4437433 | [4] | BUSHING | |
| 10. | J781030 | [2] | BOLT;SOCKET | |
| 11. | A590910 | [2] | WASHER;SPRING | |
| 14. | 4437432 | [2] | SEAT;RUBBER | |
| 15. | 4428902 | [2] | DAMPER | |
| 16. | A590906 | [4] | WASHER;SPRING | |
| 17. | J780612 | [4] | BOLT;SOCKET | |
| 21. | 3098245 | [2] | CAM | |
| 24. | 4185600 | [2] | O-RING | |
| 25. | 4447067 | [2] | O-RING | |
| 26. | 9207567 | [1] | PIN | |
| 26A. | 4425305 | [1] | PIN | |
| 26B. | 3087987 | [1] | BRACKET | |
| 26C. | 4051262 | [1] | PIN;SPRING | |
| 26D. | 4205318 | [1] | PIN;SPRING | |
| 26E. | 4205317 | [1] | PIN;SPRING | |
| 27. | 9207568 | [1] | PIN | |
| 27A. | 4425305 | [1] | PIN | |
| 27B. | 3087987 | [1] | BRACKET | |
| 27C. | 4051262 | [1] | PIN;SPRING | |
| 27D. | 4205318 | [1] | PIN;SPRING | |
| 27E. | 4205317 | [1] | PIN;SPRING | |
| 28. | 4027427 | [2] | PIN;SPRING | |
| 29. | 4213419 | [2] | PIN;SPRING | |
| 32. | 8077903 | [1] | COVER | |
| 33. | J260614 | [2] | BOLT;SEMS | |
| 33A. | J900614 | [1] | BOLT | |
| 33B. | A590106 | [1] | WASHER;PLANE | |
| 40. | 4208977 | [2] | PLUG | |
| 41. | 964255 | [2] | O-RING | |
| 42. | 4217651 | [2] | PLUG | |
| 43. | 4113154 | [2] | O-RING | |
