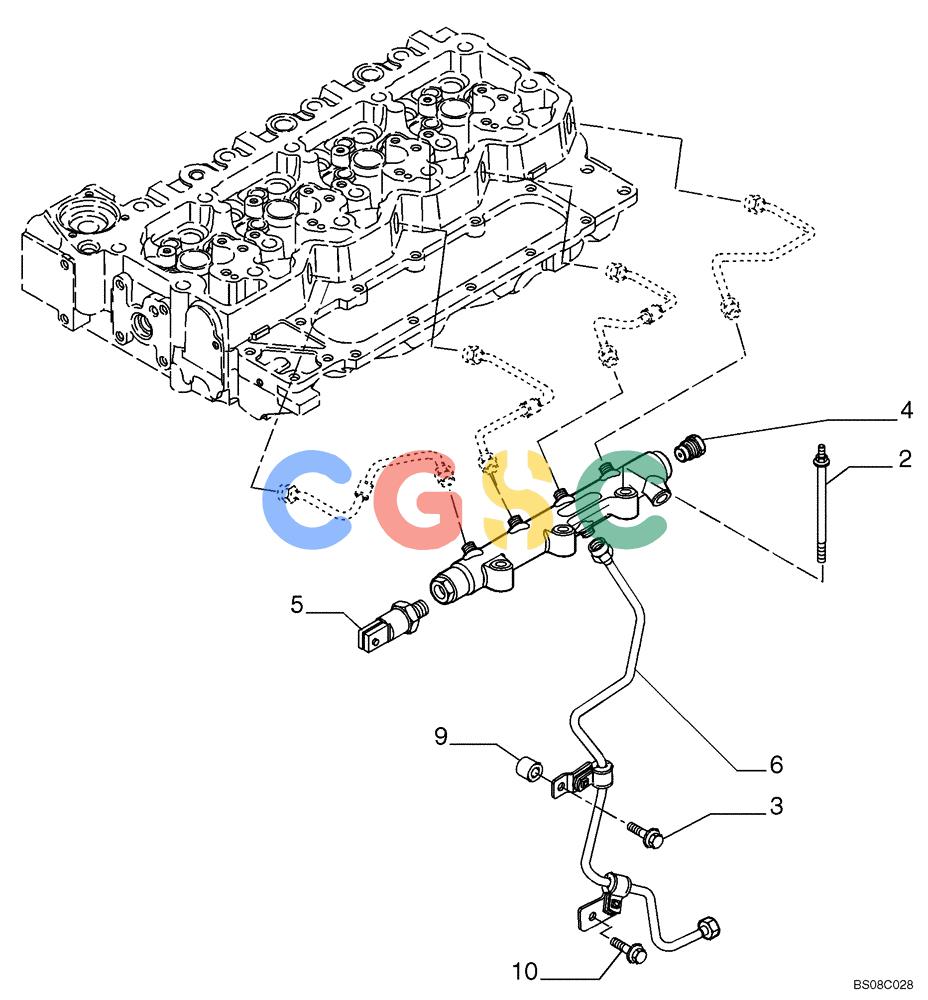

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (03-08) - FUEL INJECTION SYSTEM - FUEL, SUPPLY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
668 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855503 | [1] | MANIFOLD | TORIncl. Refs. 4, 5 |
| 2. | 2853537 | [3] | BOLT | TOR Superseded by part number: 504053874 |
| 3. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TORM8 x 16 Superseded by part number: 16673635 |
| 4. | 2854543 | [1] | PRESSURE RELIEF VALVE | TOR |
| 5. | 2854542 | [1] | SENSOR | TOR Superseded by part number: |
| 6. | 2857022 | [1] | PIPE | TORPIPE INJECTION |
| 9. | 2852434 | [1] | SPACER | TOR Superseded by part number: 13605711 |
| 10. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TOR |
| . . | 2857017 | [2] | PIPE | TORPIPE INJECTION |
| . . | 2857020 | [2] | PIPE | TORPIPE INJECTION Superseded by part number: |
