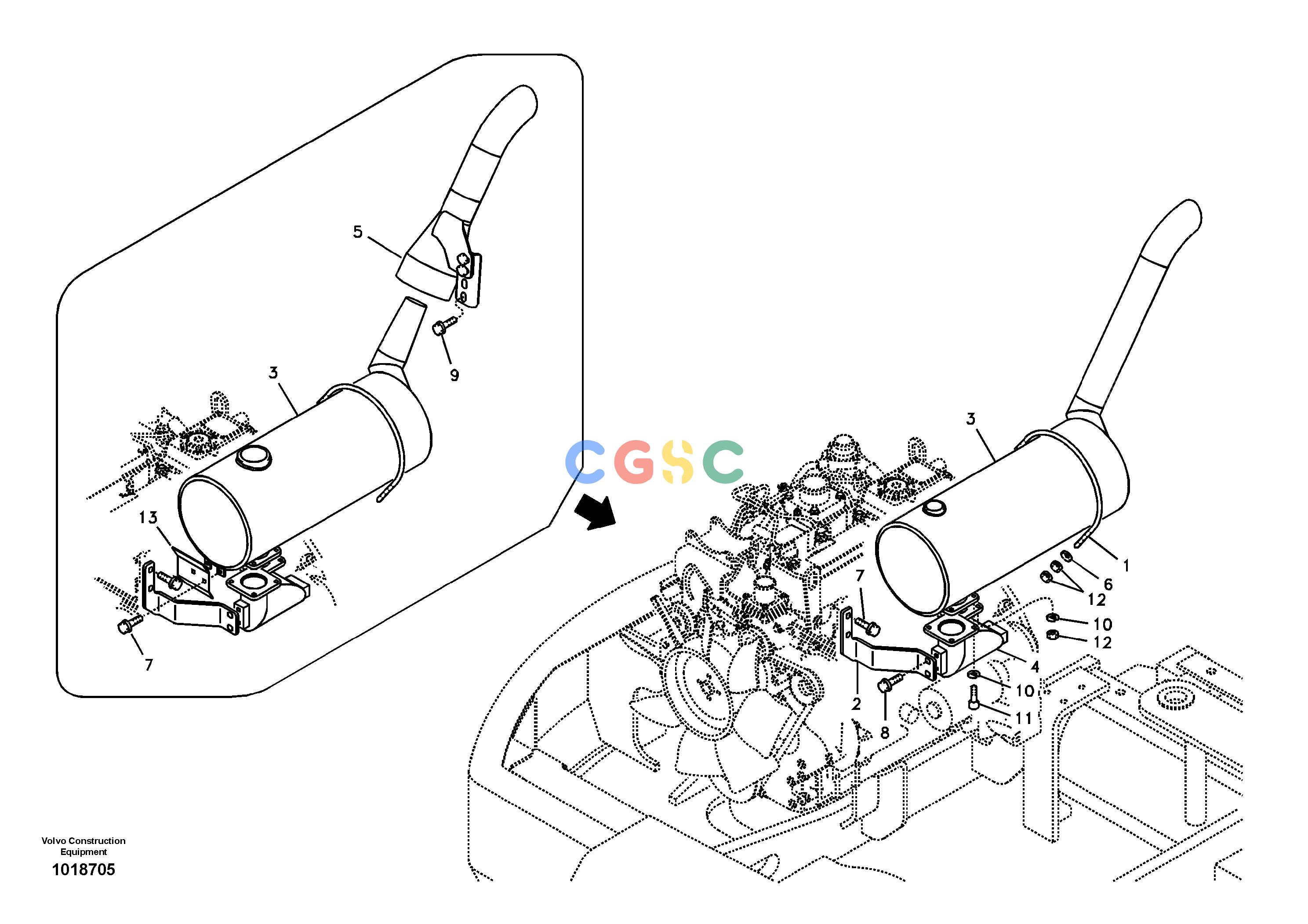

沃尔沃零件查询ECR58 Exhaust systemNone8278696-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14518139
|
[1] |
U-bolt
|
|
| 2. |
VOE14525597
|
[1] |
Bracket
|
|
| 3. |
VOE14525595
|
[1] |
Silencer
|
SER NO 10001-10533
|
| |
VOE14531679
|
[1] |
Muffler
|
SER NO 10534-10733
|
| |
VOE14541179
|
[1] |
Silencer
|
SER NO 10734-
|
| 4. |
VOE14592715
|
[1] |
Exhaust pipe
|
|
| 5. |
VOE14526759
|
[1] |
Pipe
|
SER NO 10001-10533
|
| |
VOE14531678
|
[1] |
Pipe
|
SER NO 10534-10733
|
| 6. |
VOE993835
|
[2] |
Plain washer
|
|
| 7. |
VOE946440
|
[2] |
Flange screw
|
SER NO 10001-10533
|
| |
VOE946440
|
[4] |
Flange screw
|
SER NO 10534-10733
|
| |
VOE946440
|
[2] |
Flange screw
|
SER NO 10734-
|
| 8. |
VOE946471
|
[2] |
Flange screw
|
|
| 9. |
VOE946471
|
[2] |
Flange screw
|
SER NO 10001-10733
|
| 10. |
VOE955921
|
[8] |
Spring washer
|
|
| 11. |
VOE967630
|
[4] |
Hex. socket screw
|
SER NO 10001-10533
|
| |
VOE984064
|
[4] |
Hex. socket screw
|
SER NO 10534-
|
| 12. |
VOE983303
|
[8] |
Hexagon nut
|
|
| 13. |
VOE14531692
|
[1] |
Screen
|
SER NO 10534-10733
|
