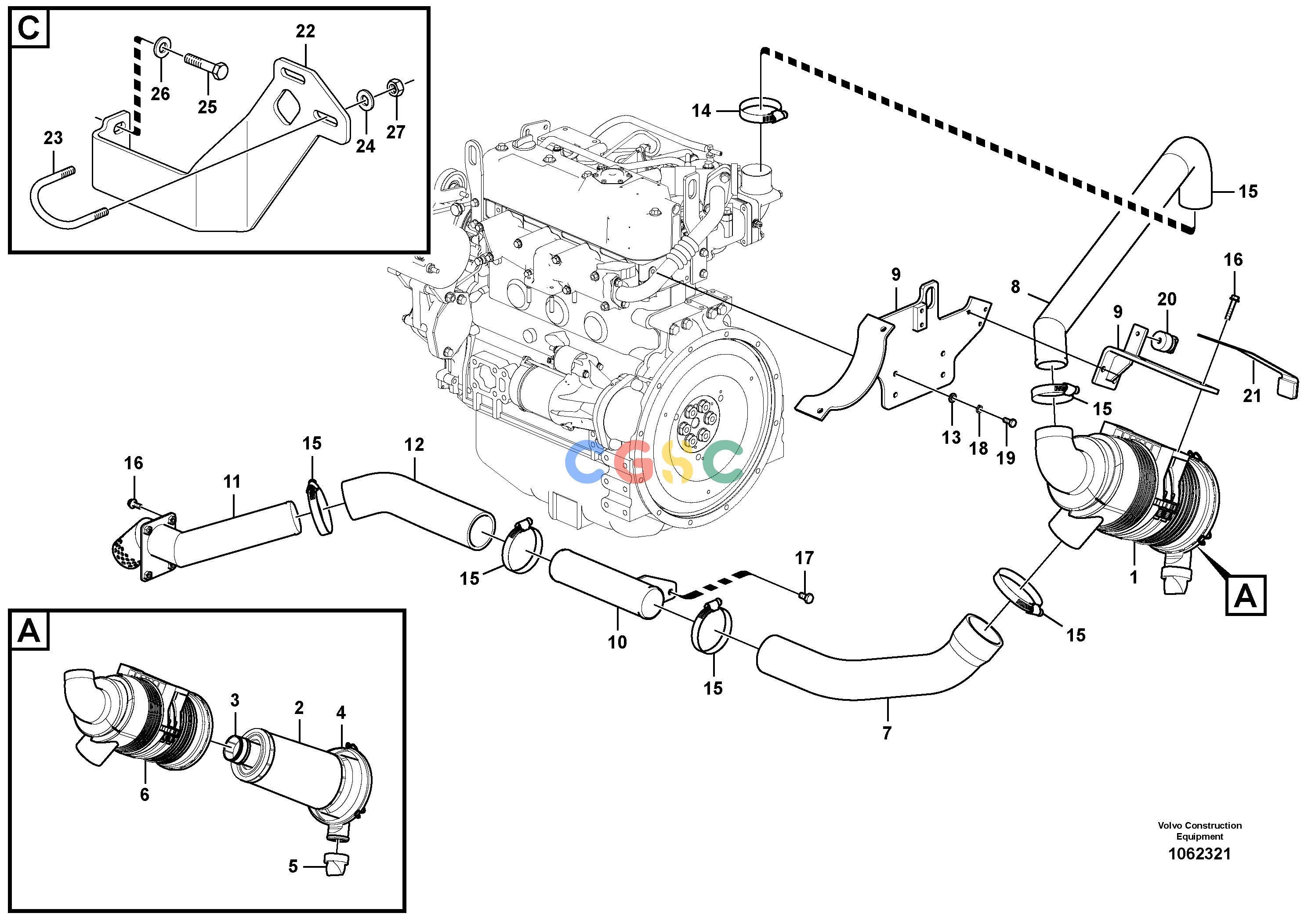

沃尔沃零件查询ECR58 Inlet systemNoneS/N - 12999-S/N 13000 -NoneNone8278696Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
901 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14528511
|
[1] |
Air cleaner
|
|
| 2. |
VOE14519261
|
[1] |
Filter
|
|
| 3. |
VOE14519262
|
[1] |
Filter
|
|
| 4. |
VOE14520960
|
[1] |
Cover
|
|
| 5. |
VOE14528513
|
[1] |
Valve
|
|
| 6. |
VOE14526920
|
[1] |
Bracket
|
|
| 7. |
VOE14526101
|
[1] |
Hose
|
|
| 8. |
VOE14526104
|
[1] |
Hose
|
|
| 9. |
VOE14526764
|
[1] |
Bracket
|
|
| 9. |
VOE14630711
|
|
Bracket
|
|
| 10. |
VOE14526765
|
[1] |
Pipe
|
|
| 11. |
VOE14528955
|
[1] |
Pipe
|
|
| 12. |
VOE14526769
|
[1] |
Hose
|
|
| 13. |
VOE993835
|
[4] |
Plain washer
|
|
| 14. |
VOE14883762
|
[1] |
Hose clamp
|
|
| 15. |
SA9312-10350
|
[5] |
Hose clamp
|
|
| 16. |
VOE946173
|
[6] |
Flange screw
|
|
| 17. |
VOE946471
|
[2] |
Flange screw
|
|
| 18. |
VOE955921
|
[4] |
Spring washer
|
|
| 19. |
VOE983242
|
[4] |
Hexagon screw
|
|
| 20. |
VOE14881082
|
[1] |
Indicator
|
|
| 21. |
VOE14585970
|
[1] |
Bracket
|
|
| 22. |
VOE14630717
|
|
Bracket
|
|
| 23. |
VOE14631828
|
|
U-bolt
|
|
| 24. |
VOE11117464
|
|
Plain washer
|
|
| 25. |
VOE983252
|
|
Hexagon screw
|
|
| 26. |
VOE976945
|
|
Washer
|
|
| 27. |
VOE983303
|
|
Hexagon nut
|
|
