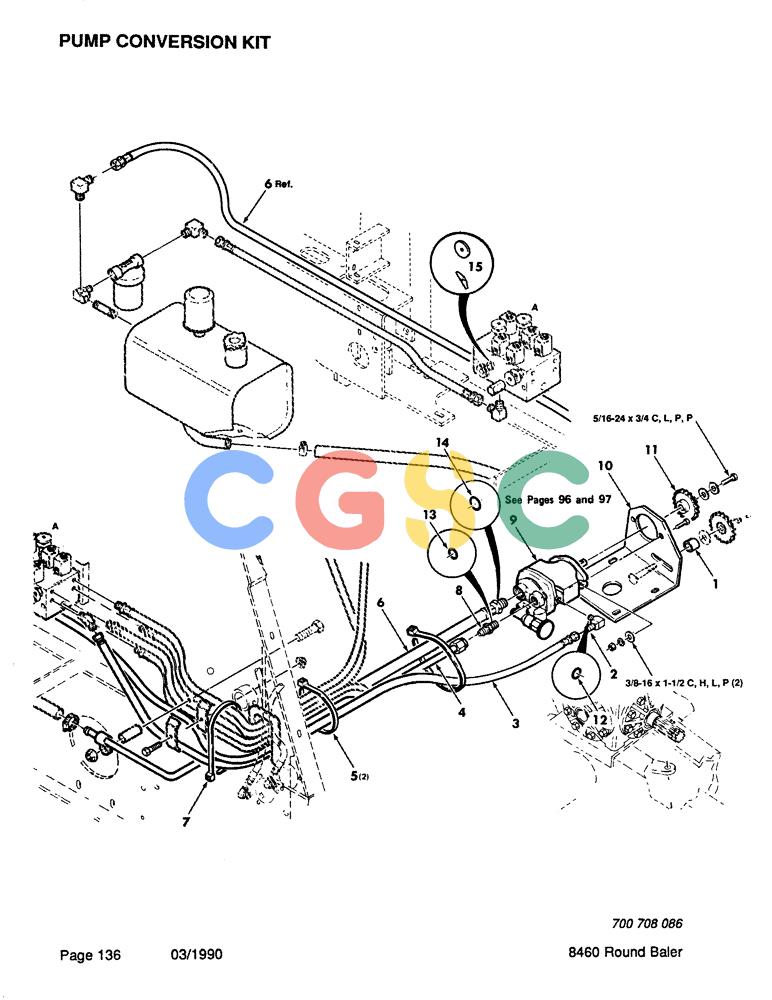

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (136) - PUMP CONVERSION KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700120769
|
[1] |
KIT
|
HFI
PUMP CONVERSION KIT COMPLETE
|
| 1. |
700118822
|
[1] |
SPACER
|
CAS
|
| 2. |
7746555
|
[1] |
ELBOW
|
CAS
90 deg. ELBOW WITH O-RING Superseded by part number: 76344
|
| 3. |
700708996
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 2025.00 mm, SAE 100R1
|
CAS
9.65 mm ID x 2025.00 mm, SAE 100R1 Superseded by part number: 195504C2
|
| 4. |
700708999
|
[1] |
TUBE,25.4 mm OD, 783, 400 mm Length
|
CAS
HOSE HYDRAULIC
|
| 5. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
CABLE - tie
|
| 6. |
700709241
|
[1] |
HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm, SAE 100R1
|
CAS
12.70 mm ID x 1400.00 mm, SAE 100R1
|
| 7. |
722470
|
[1] |
MOUNTING CLIP
|
CAS
CABLE - tie Superseded by part number: 529070
|
| 8. |
700708938
|
[1] |
FITTING
|
CAS
C0NNECTOR WITH O-RING - flared Superseded by part number: 9615397
|
| 9. |
700708580
|
[1] |
PUMP
|
CAS
- hydraulic, piston
|
| 10. |
700119133
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - pump
|
| 11. |
700708998
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - pump, 40-P, 17 tooth
|
| 12. |
738468
|
[1] |
O-RING
|
IH
|
| 13. |
7037799
|
[1] |
O-RING,14-1, 90 Duro, 1.048" ID x .116" Thk
|
CAS
Superseded by part number: 70921886
|
| 14. |
738484
|
[1] |
O-RING
|
IH
Superseded by part number: 167266
|
| 15. |
700709384
|
[1] |
ORIFICE
|
CAS
|
| . . |
7773914
|
[1] |
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
|
CAS
5/16-24 x 3/4 C Superseded by part number: 114-101
|
| . . |
703603
|
[2] |
SCREW
|
CAS
3/8-16 x 1-1/2 C
|
