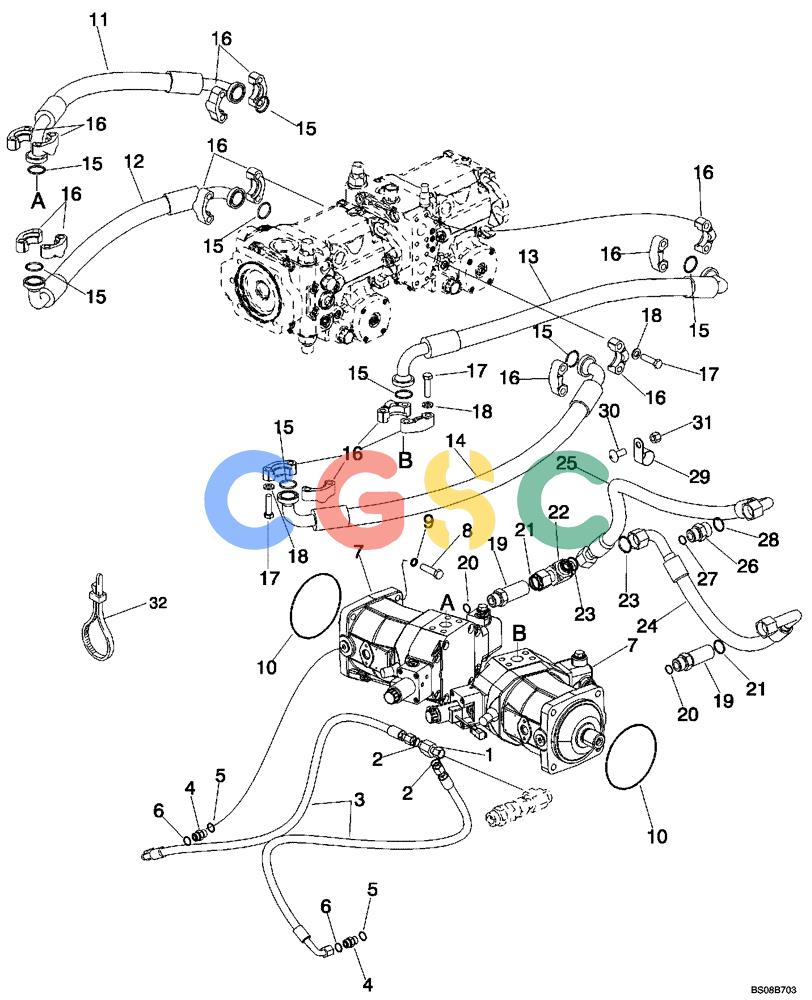

| 1. | 201-416 | [1] | TEE,13/16"-16 ORFS x 13/16"-16 Sw Run | IHIncl. Ref 2 Superseded by part number: 86624132 |
| 2. | 238-6014 | [2] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASFace Seal Superseded by part number: 9992298 |
| 3. | 446077A1 | [2] | HOSE ASSY. | BUR1200 mm (47-1/4 in); Pump Drain To Motor Drain |
| 4. | 201-102 | [2] | HYD CONNECTOR,13/16"-16 ORFS x 3/4"-16 ORB | CASIncludes Ref. 5, 6 Superseded by part number: 9992305 |
| 5. | 237-6008 | [1] | O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro | CASBoss end Superseded by part number: 128825 |
| 7. | 401629A2 | [2] | HYDROSTATIC MOTOR,80CC | BURUse With Loctite 767 On Shafts; See Figures 06-11, 06-12 |
| 7. | 401629A2R | [2] | REMAN-HYDROSTATIC MOTOR | BURRemanufactured |
| 7. | 401629A2C | [2] | CORE-HYDROSTATIC MOTOR | BURReturn Number |
| 8. | 827-12045 | [8] | BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd | CASUse With Loctite 243 Superseded by part number: 86639031 |
| 9. | 892-11012 | [8] | LOCK WASHER,M12 | CAS Superseded by part number: 412123 |
| 10. | 238-5161 | [2] | O-RING,0.094" Thk x 5.438" ID, -161, Cl 5, 75 Duro | CAS |
| 11. | 401652A1 | [1] | HOSE ASSY.,25.4mm ID x 685mm L, SAE 100R15 | BUR685 mm (27 in); Rear Pump To Left-Hand Motor; Upper |
| 12. | 401653A1 | [1] | HOSE ASSY.,25.4mm ID x 675mm L, SAE 100R15 | BUR675 mm (26-5/8 in); Rear Pump To Left-Hand Motor; Lower |
| 13. | 401650A1 | [1] | HOSE ASSY. | BUR940 mm (37 in); Front Pump To Right-Hand Motor; Upper |
| 14. | 401651A1 | [1] | HOSE ASSY.,25.4mm ID x 991mm L, SAE 100R15 | BUR991 mm (39-1/64 in); Front Pump To Right-Hand Motor; Lower |
| 15. | 238-6219 | [8] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | CAS Superseded by part number: 86529541 |
| 16. | 86980732 | [16] | CLAMP | GISplit Flange |
| 17. | 864-12045 | [32] | HEX SOC SCREW,M12 x 45mm, Cl 8.8 | CAS Superseded by part number: 14422321 |
| 18. | 896-11012 | [32] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 19. | 201-176 | [2] | HYD CONNECTOR,1 3/16"-12 x 1 1/16"-12, ORFS Lg | BRRIncl. Ref 20, 21 Superseded by part number: 87393627 |
| 20. | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186120, 167266, 79051113 |
| 21. | 238-6018 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9991976 |
| 22. | 201-417 | [1] | TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS | CASIncl. Ref 23 |
| 24. | 429599A1 | [1] | HOSE ASSY. | BUR595 mm (23-7/16 in); Case Drain Crossover |
| 26. | 201-105 | [1] | HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/16"-12 ORB | IHIncl. Ref. 27, 28 Superseded by part number: 9824055 |
| 27. | 237-6016 | [1] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186238, 167268 |
| 28. | 238-6021 | [1] | O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 87473574 |
| 29. | 515-25317 | [1] | CLAMP,1 1/4", Insul, 1/2" Bolt | CAS |
| 30. | 811-12050 | [1] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8 | CAS Superseded by part number: 334682 |
| 31. | 832-10412 | [1] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 32. | L18331 | [1] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
