日立零件查询（MA200-G）CYL.;BUCKET Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
882 次

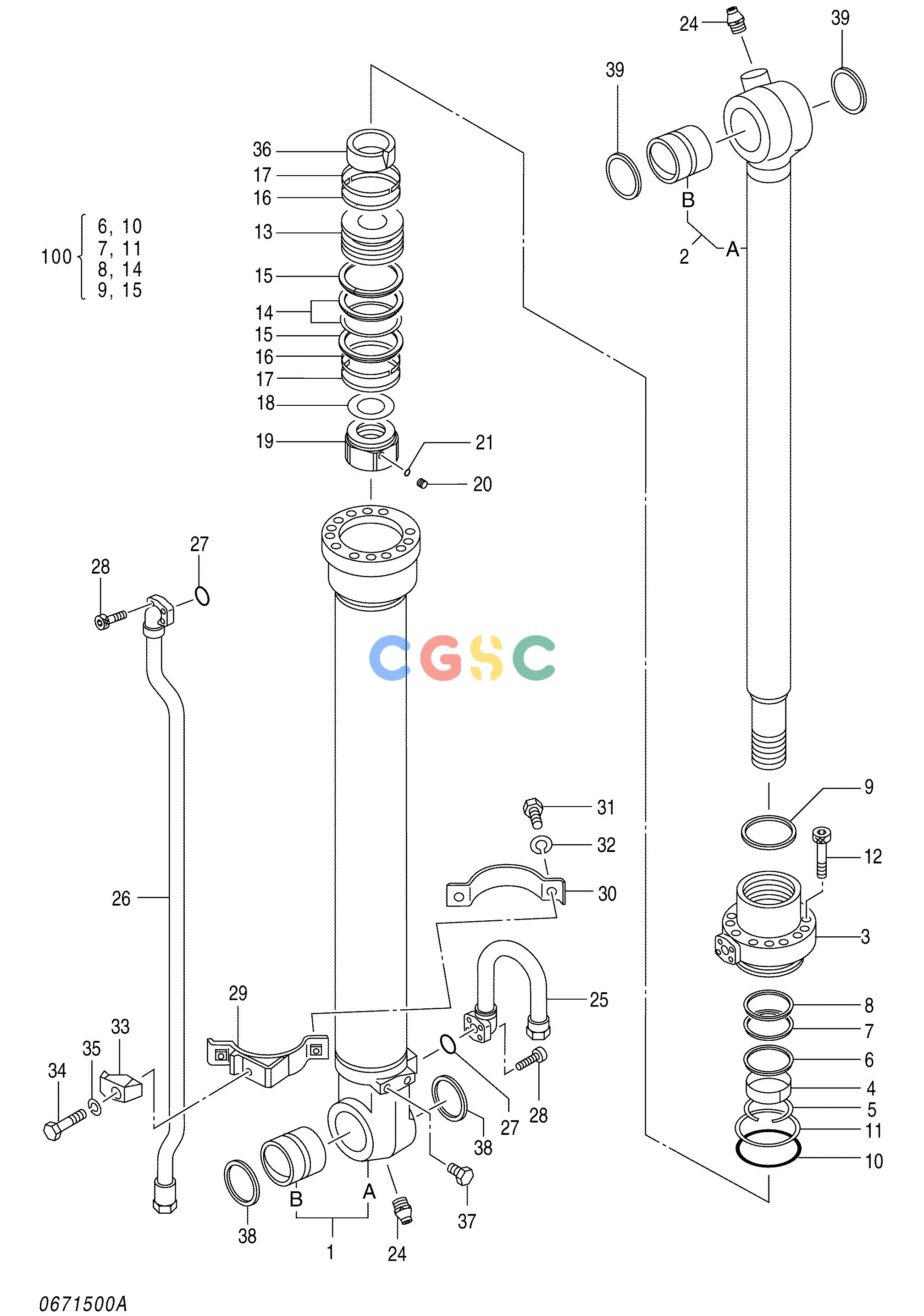

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4371061 | [1] | CYL.;BUCKET | |
| 1. | 0671501 | [1] | TUBE;CYL. ASS'Y | |
| 1A. | +++++++ | [1] | TUBE;CYL. | |
| 1B. | 4365897 | [2] | BUSHING;PIN | |
| 2. | 0671502 | [1] | ROD;PISTON ASS'Y | |
| 2A. | +++++++ | [1] | ROD;PISTON | |
| 2B. | 4365448 | [2] | BUSHING;PIN | |
| 3. | 0409103 | [1] | HEAD;CYL. | |
| 4. | 0310604 | [1] | BUSHING | |
| 5. | 4510494 | [1] | RING;RETAINING | |
| 6. | 0409104 | [1] | RING | |
| 7. | 0225611 | [1] | PACKING;U-RING | |
| 8. | 0225612 | [1] | RING;BACK-UP | |
| 9. | 0667106 | [1] | RING;WIPER | |
| 10. | A811090 | [1] | OｰRING | |
| 11. | 0310606 | [1] | RING;BACK-UP | |
| 12. | 0408805 | [12] | BOLT;SOCKET | |
| 13. | 0409106 | [1] | PISTON | |
| 14. | 0310608 | [1] | RING;SEAL ASSY | |
| 15. | 0409107 | [2] | RING;BUCK-UP | |
| 16. | 0310609 | [2] | RING;SLIDE | |
| 17. | 0310610 | [2] | RING;SLIDE | |
| 18. | 0326007 | [1] | SHIM | |
| 19. | 0409108 | [1] | NUT | |
| 20. | 0310612 | [1] | SCREW;SET | |
| 21. | 0111818 | [1] | BALL;STEEL | |
| 24. | J75481 | [2] | FITTING;GREASE | |
| 25. | 0437003 | [1] | PIPE | |
| 26. | 0437004 | [1] | PIPE | |
| 27. | 4509181 | [2] | OｰRING | |
| 28. | M340825 | [8] | BOLT;SOCKET | |
| 29. | 0409115 | [1] | BAND | |
| 30. | 0409116 | [1] | BAND | |
| 31. | 0408815 | [2] | BOLT | |
| 32. | 0325913 | [2] | WASHER | |
| 33. | 0310616 | [1] | HOLDER | |
| 34. | 0259509 | [1] | BOLT | |
| 35. | 0208516 | [1] | WASHER;SPRING | |
| 36. | 0409109 | [1] | BRG.;CUSHION | |
| 37. | 0409110 | [2] | BOLT | |
| 38. | 4094086 | [2] | RING;WIPER | |
| 39. | 4065687 | [2] | RING;WIPER | |
| 100. | 4364914 | [1] | KIT;SEAL | |
