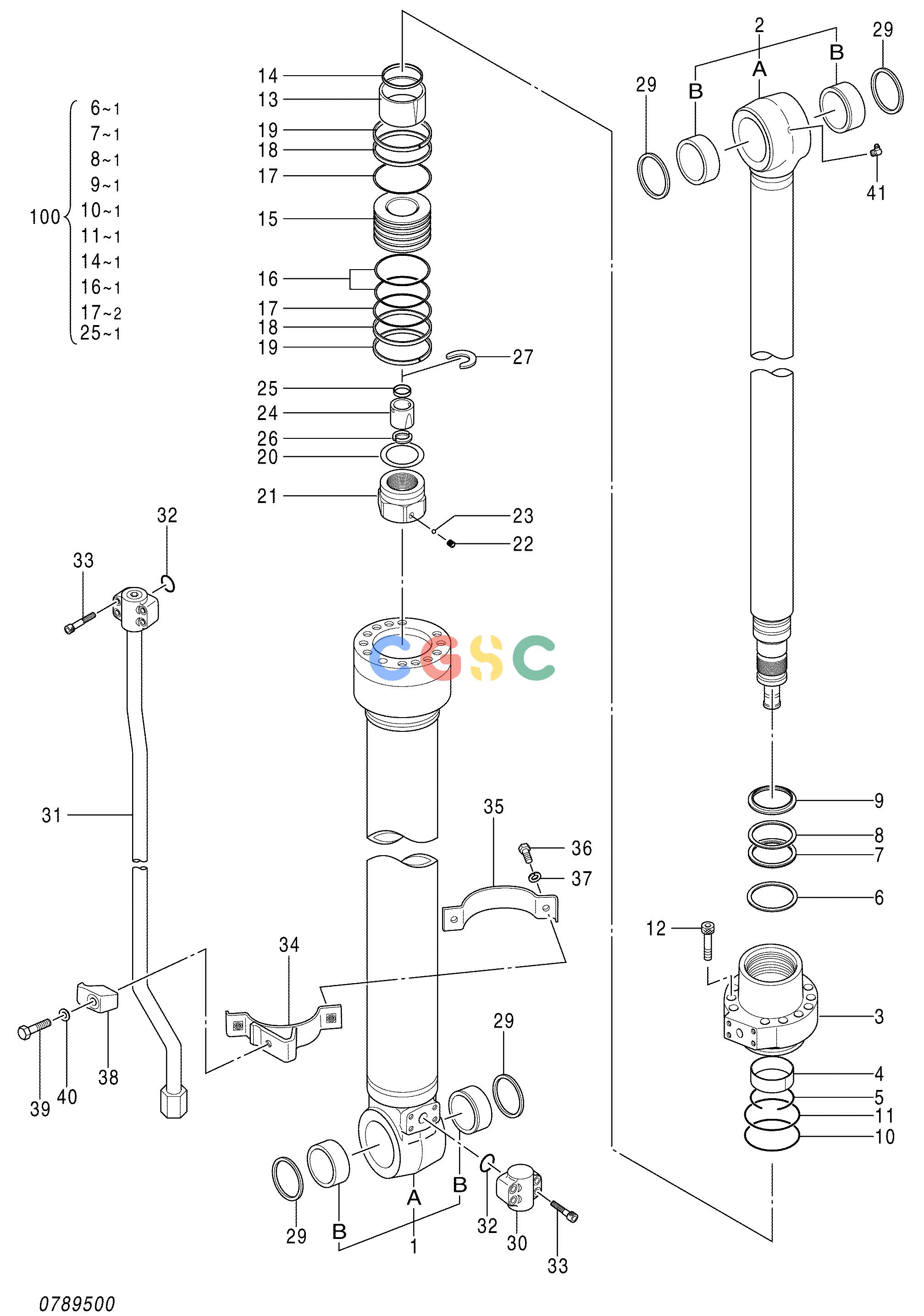

日立零件查询（MA200-G）CYL.;ARM Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
847 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4423852 | [1] | CYL.;ARM | |
| 1. | 0789501 | [1] | TUBE;CYL. ASS'Y | |
| 1A. | 0789502 | [1] | TUBE;CYL. | |
| 1B. | 4352400 | [2] | BUSHING;PIN | |
| 2. | 0789503 | [1] | ROD;PISTON ASS'Y | |
| 2A. | 0789504 | [1] | ROD;PISTON | |
| 2B. | 4352400 | [2] | BUSHING;PIN | |
| 3. | 0789205 | [1] | HEAD;CYL. | |
| 4. | 0309304 | [1] | BUSHING | |
| 5. | 0208604 | [1] | RING;RETAINING | |
| 6. | 0789206 | [1] | RING | |
| 7. | 0208605 | [1] | PACKING;U-RING | |
| 8. | 0208606 | [1] | RING;BACKｰUP | |
| 9. | 0667006 | [1] | RING;WIPER | |
| 10. | A811110 | [1] | O-RING | |
| 11. | 0310904 | [1] | RING;BACK-UP | |
| 12. | 0409705 | [10] | BOLT;SOCKET | |
| 13. | 0409005 | [1] | BRG.;CUSHION | |
| 14. | 0667007 | [1] | SEAL | |
| 15. | 0789505 | [1] | PISTON | |
| 16. | 0225614 | [1] | RING;SEAL | |
| 17. | 0496605 | [2] | RING;BACK-UP | |
| 18. | 0686405 | [2] | RING;SLIDE | |
| 19. | 0310908 | [2] | RING | |
| 20. | 0409010 | [1] | SHIM | |
| 21. | 0789506 | [1] | NUT | |
| 22. | 0309011 | [1] | SCREW;SET | |
| 23. | 0111707 | [1] | BALL;STEEL | |
| 24. | 0409012 | [1] | BRG.;CUSHION | |
| 25. | 0667010 | [1] | SEAL | |
| 26. | 0409014 | [2] | STOPPER | |
| 27. | 0409015 | [1] | RING | |
| 29. | 4084578 | [4] | SEAL;DUST | |
| 30. | 0796601 | [1] | JOINT | |
| 31. | 0789508 | [1] | PIPE | |
| 32. | 4506430 | [2] | O-RING | |
| 33. | 4486953 | [8] | BOLT;SOCKET | |
| 34-40. | 0686410 | [1] | KIT;BAND | |
| 34. | 0686408 | [1] | BAND | |
| 35. | 0686409 | [1] | BAND | |
| 36. | 0408815 | [2] | BOLT | |
| 37. | 0325913 | [2] | WASHER | |
| 38. | 0309021 | [1] | HOLDER | |
| 39. | 0667013 | [1] | BOLT | |
| 40. | 0208516 | [1] | WASHER;SPRING | |
| 41. | 0225709 | [1] | FITTING;GREASE | |
| 100. | 4448396 | [1] | KIT;SEAL | |
