纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (06-05) - MOUNTING - FINAL DRIVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
198 次

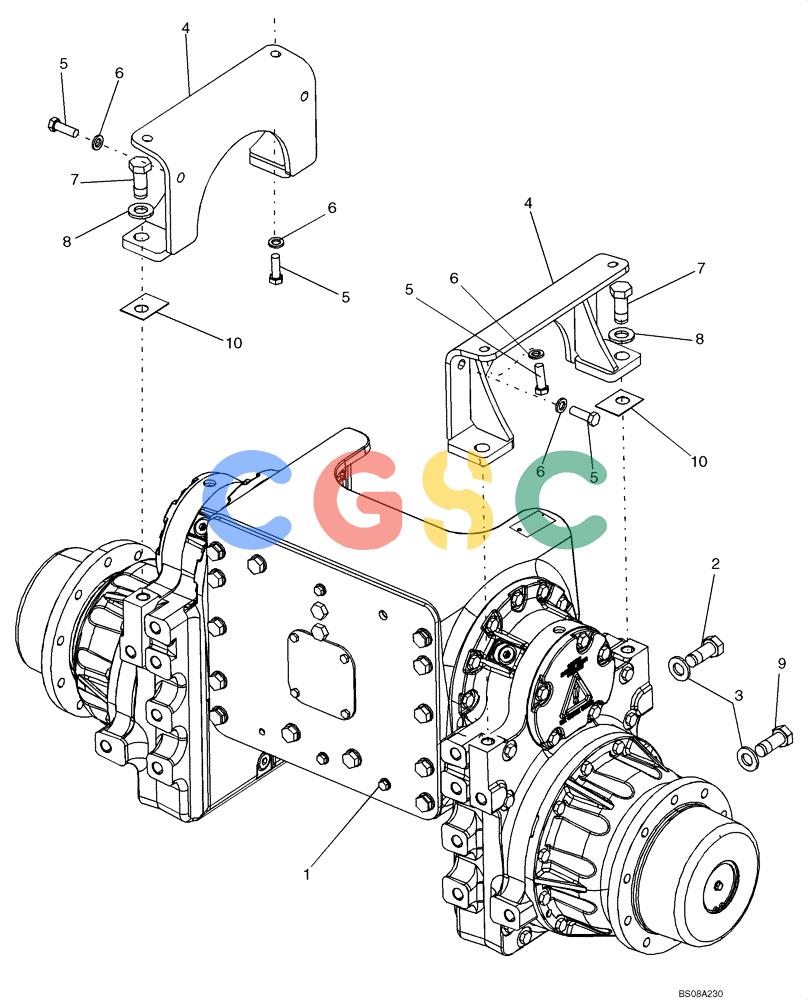

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87728955 | [1] | TRANSMISSION, Long Track Models; Incl. 87724629 Final Drive and Parts on Figure 06-06 | |
| . . | 87728952 | [1] | TRANSMISSION, Wide Track or Low Ground Pressure Models; Incl. 87724630 Final Drive and Parts on Figure 06-06 | |
| 1. | 87724629 | [2] | DRIVE ASSY. | BURFINAL REDUCTION GEARBOX Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; See Figure 06-07, 06-08 |
| . . | 87724629R | [2] | REMAN-AXLE | RACD95B TIER 3 (3/08-) Superseded by part number: 87724629 |
| . . | 87724629C | [1] | CORE-AXLE | RACReturn Number |
| 1. | 87724630 | [2] | DRIVE ASSY. | BURFINAL REDUCTION GEARBOX Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; See Figure 06-07, 06-08 Superseded by part number: 84490715 |
| . . | 87724630R | [2] | REMAN-FINAL DRIVE | RACD95B TIER 3 (3/08-) Superseded by part number: 87724630 |
| . . | 87724630C | [1] | CORE-FINAL DRIVE | RACReturn Number |
| 2. | 410-91640 | [6] | BOLT,Hex, 1" - 8 x 2 1/2", Gr 8 | CAS |
| 3. | 496-31106 | [10] | WASHER,1 1/16" x 2" x .219", HDN | CAS Superseded by part number: 87024780 |
| 4. | 86987006 | [2] | SUPPORT ASSY. | CAS |
| 5. | 627-16050 | [8] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CASUse with Loctite 243 Superseded by part number: 412398 |
| 6. | 896-11016 | [8] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | IH Superseded by part number: 86625266 |
| 10. | 87532203 | [4] | SHIM | BURShim, Tank Frame,60 mm x 80 mm x 1.5 mm |
