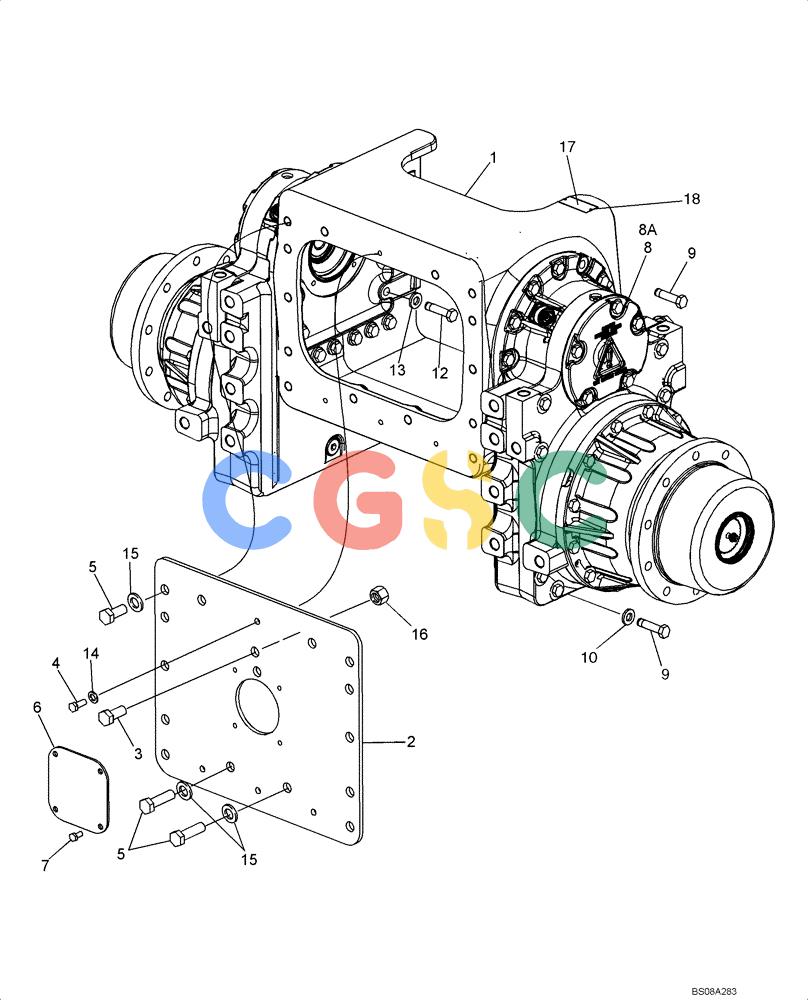

| . . | 87728955 | [1] | TRANSMISSON, Extended Long Track Models; Incl. Ref 1 - 8, 9 - 13 | |
| . . | 87728952 | [1] | TRANSMISSION, Wide Track or Low Ground Pressure Models; Incl. Ref 1 - 7, 8A, 9 - 13 | |
| 1. | 385201A4 | [1] | HOUSING | RACCenter Box |
| 2. | 385224A2 | [1] | COVER PLATE | RACRear |
| 3. | 627-20045 | [2] | BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86500658, 47109988 |
| 4. | 627-12035 | [4] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 6. | 87699923 | [1] | PLATE | BURPLATE, COVER |
| 7. | 627-10020 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 8. | 87724629 | [2] | DRIVE ASSY. | BURFINAL REDUCTION GEARBOX Final Drive Assembly; 1448 mm (57 inch) Gauge Extended Long Track (XLT) Models; See Figure 06-07, 06-08 |
| . . | 87724629R | [2] | REMAN-AXLE | RACD95B TIER 3 (3/08-) Superseded by part number: 87724629 |
| . . | 87724629C | [1] | CORE-AXLE | RACReturn Number |
| 8A. | 87724630 | [2] | DRIVE ASSY. | BURFINAL REDUCTION GEARBOX Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; See Figure 06-07, 06-08 Superseded by part number: 84490715 |
| . . | 87724630R | [2] | REMAN-FINAL DRIVE | RACD95B TIER 3 (3/08-) Superseded by part number: 87724630 |
| . . | 87724630C | [1] | CORE-FINAL DRIVE | RACReturn Number |
| 9. | 608-16065 | [30] | BOLT,M16 x 65mm, Cl 10.9 | BRR |
| 10. | 896-16016 | [16] | WASHER,17.5mm ID x 34mm OD x 5mm Thk | CAS Superseded by part number: 86625258 |
| 14. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 15. | 896-11020 | [14] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS Superseded by part number: 86625260 |
| 16. | 832-10420 | [2] | NUT,M20 x 2.5, Cl 8 | CAS Superseded by part number: 9672396 |
| 17. | 87445787 | [1] | PLATE, PART NUMBER, MADE IN GERMANY | |
| 18. | 301-1434 | [2] | DRIVE SCREW,Drive, #6 x 1/4" | CAS Superseded by part number: 80816 |
