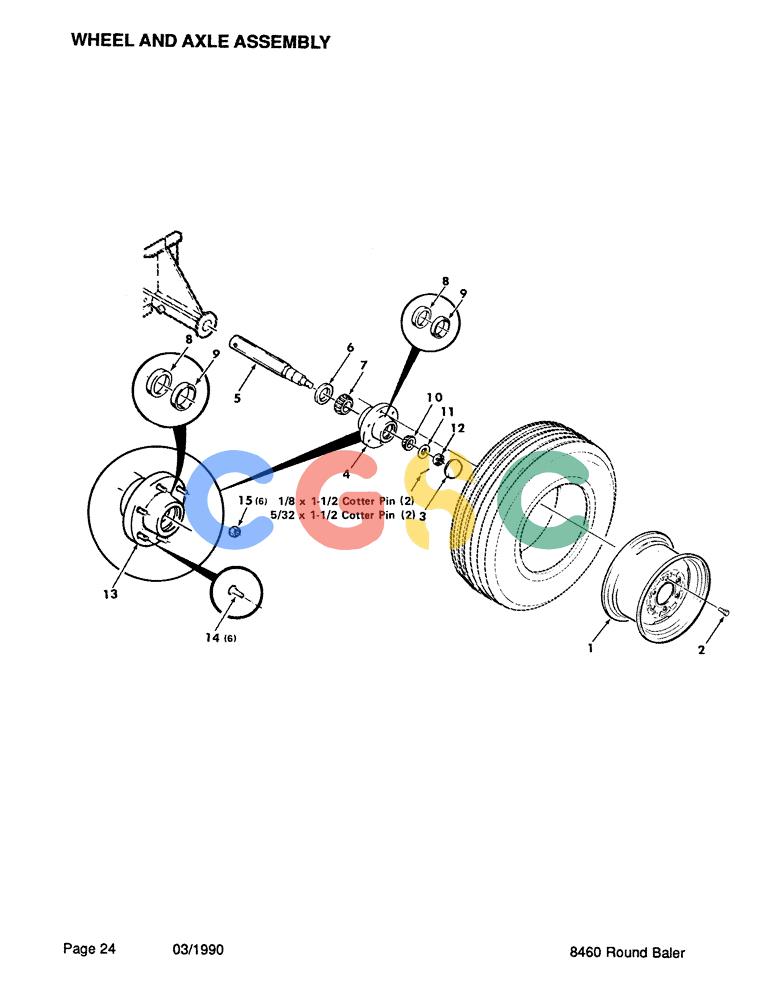

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (024) - WHEEL AND AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707924
|
[1] |
RIM
|
CAS
WHEEL, 15" Superseded by part number: A57879
|
| . . |
700707982
|
[1] |
RIM
|
CAS
(STANDARD) WHEEL, 13.5 (high flotation) Superseded by part number: 10110254
|
| 2. |
T52730
|
[6] |
WHEEL BOLT
|
IH
9/16-18 x 1-1/8 WHEEL BOLT (S.N. CFH0017432) Superseded by part number: 86628557
|
| 3. |
26930
|
[1] |
CAP
|
IH
HUB CAP (see 700709830, item 13) Superseded by part number: 518842R1
|
| 4. |
826255
|
[2] |
HUB
|
CAS
ASSEMBLY (includes cups) see 700709830, item 13 (S.N. CFH0017432)
|
| 5. |
700114346
|
[1] |
SPINDLE
|
IH
- axle
|
| 6. |
844050
|
[1] |
SEAL
|
L
- grease
|
| 7. |
713537
|
[1] |
ROLLER BEARING
|
CAS
BEARING CONE - inner Superseded by part number: 86512015
|
| 8. |
663558R1
|
[1] |
BEARING CUP
|
IH
- inner Superseded by part number: 86512015
|
| 9. |
711242
|
[1] |
BEARING CUP
|
CAS
- outer Superseded by part number: 47923369
|
| 10. |
711507
|
[1] |
ROLLER BEARING,31.77 mm ID x 16.764 mm
|
IH
BEARING CONE - outer Superseded by part number: 84356153
|
| 11. |
26971
|
[1] |
WASHER
|
CAS
|
| 12. |
7704208
|
[1] |
SLOTTED NUT
|
CAS
3/4-16 SLOTTED HEX NUT (S.N. CFH0017433 and on) Superseded by part number: 88886
|
| 13. |
700709830
|
[1] |
HUB
|
IH
ASSEMBLY (hub will retrofit on all) (includes cups and wheel bolts) (S.N. CFH0017433 and on)
|
| 14. |
826370
|
[6] |
BOLT,Ribbed Nk, 9/16" - 18 x 2.12"
|
CAS
9/16-18 RUBBED NECK WHEEL BOLT Superseded by part number: T57455
|
| 15. |
826313
|
[6] |
NUT
|
CAS
9/16-18 WHEEL NUT Superseded by part number: G49041
|
