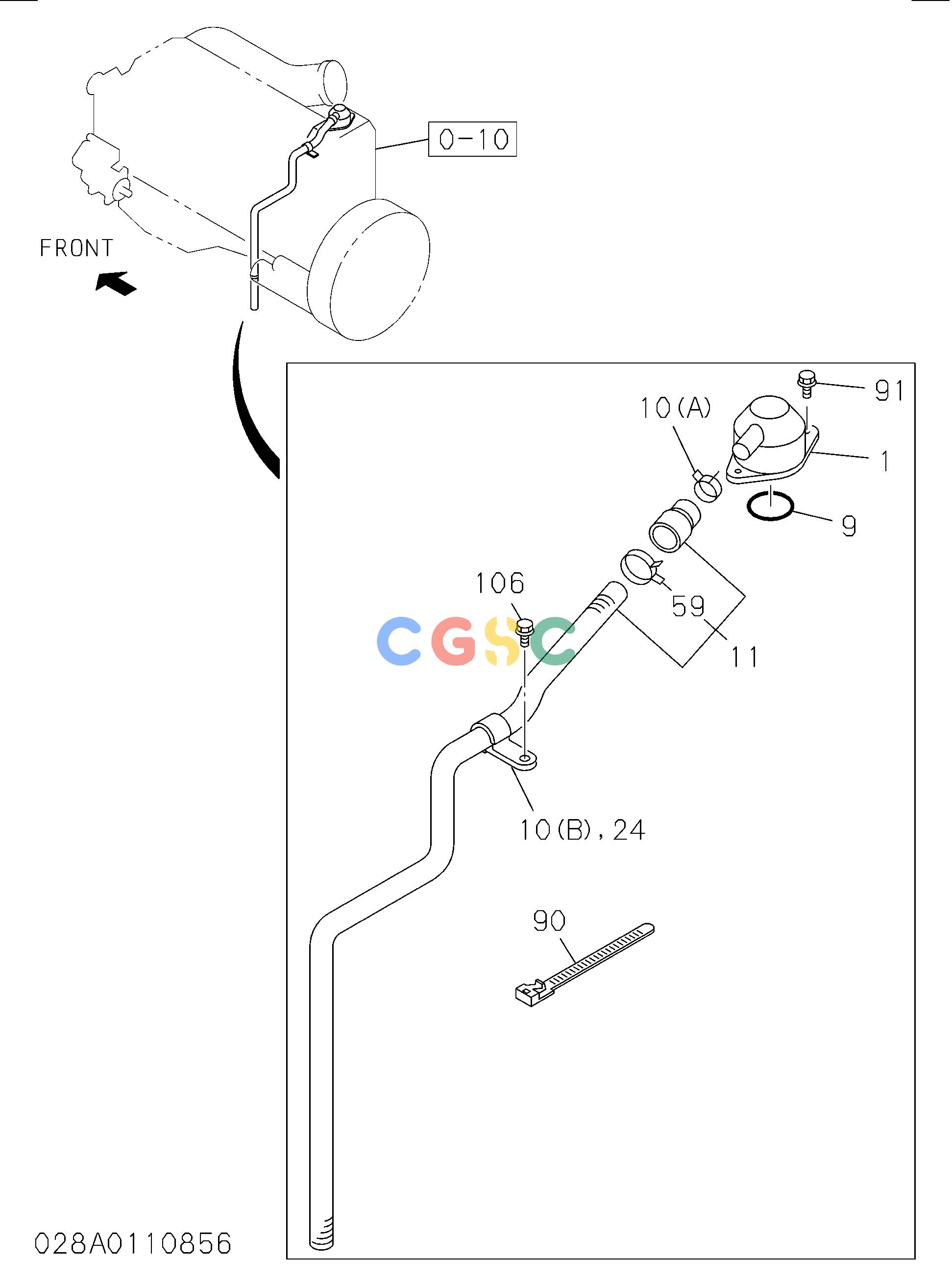

日立零件查询（600C）LC JD 028: VENTILATION SYSTEM Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1117401811 | [1] | BREATHER; AIR | |
| 009. | 1096235650 | [1] | GASKET; AIR BREATHER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 010(A). | 1097071500 | [1] | CLIP; AIR BREATHER | ID=28.5 |
| 010(B). | 1097009690 | [1] | CLIP; AIR BREATHER | ID=31 L=50 |
| 011. | 1117420583 | [1] | HOSE; RUBBER,AIR | |
| 011. | 1117420832 | [1] | HOSE; RUBBER,AIR | |
| 059. | 8943625180 | [1] | CLIP; HOSE | |
| 090. | 5097070301 | [1] | CLIP; RUBBER HOSE | L=250 |
| 091. | 0280810200 | [2] | BOLT; AIR BREATHER | A M10X20 FLANGE |
| 091. | 0281810200 | [2] | BOLT; AIR BREATHER | A M10X20 FLANGE |
| 091. | 0281510200 | [2] | BOLT; AIR BREATHER | M10X20 FLANGE |
| 106. | 0280808120 | [1] | BOLT; DRAIN PIPE | A M8X12 FLANGE |
| 106. | 0280508120 | [1] | BOLT; DRAIN PIPE | M8X12 FLANGE |
