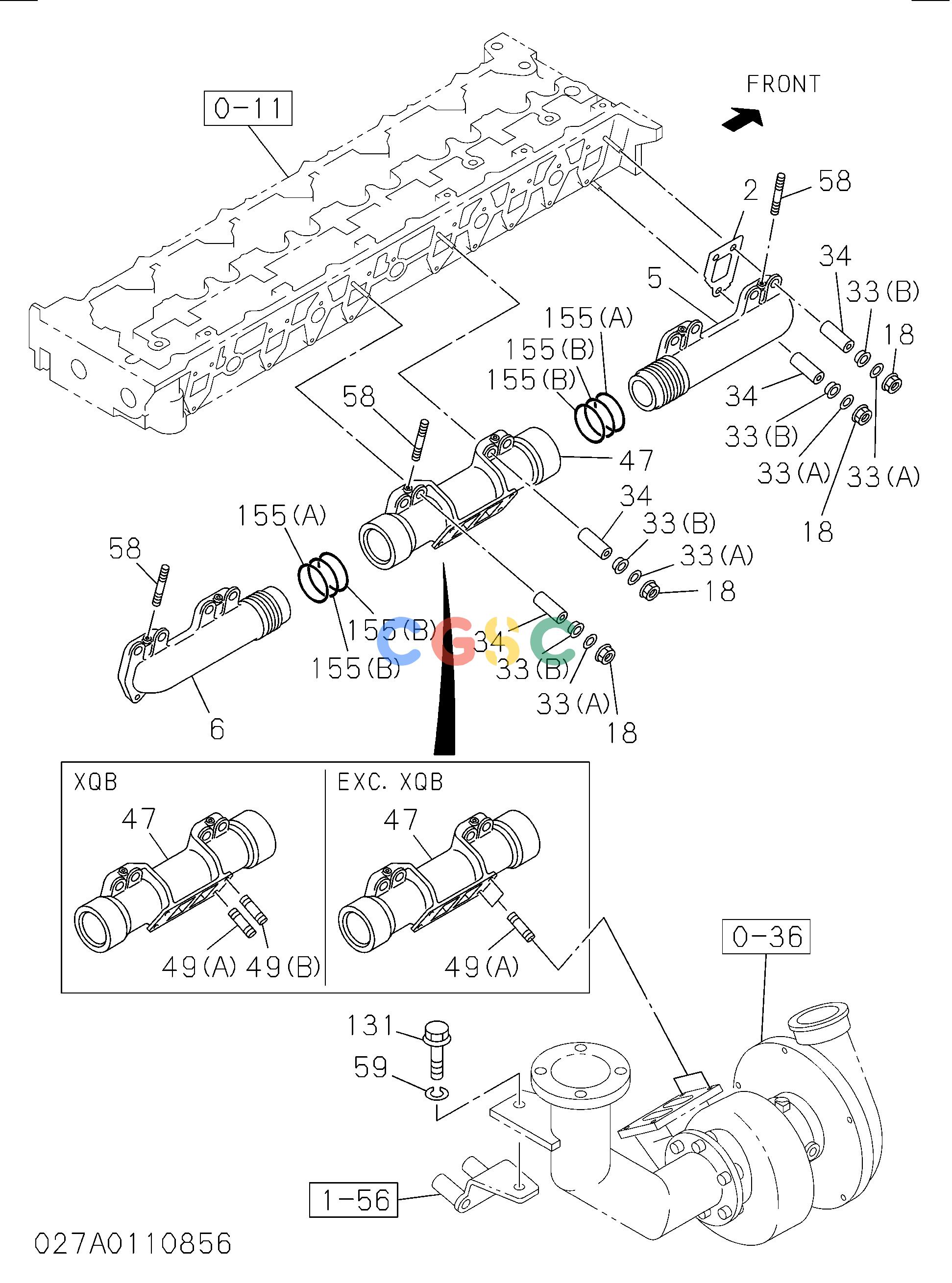

日立零件查询（600C）LC JD 027: EXHAUST MANIFOLD Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
535 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 002. | 1141451823 | [6] | GASKET; EXH MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 005. | 1141419990 | [1] | MANIFOLD; EXH,FRT | |
| 006. | 1141420010 | [1] | MANIFOLD; EXH,RR | |
| 018. | 0911502100 | [18] | NUT; EXH MANIF | A M10 FLANGE |
| 018. | 0911802100 | [18] | NUT; EXH MANIF | M10 FLANGE |
| 033(A). | 1095560150 | [18] | WASHER; EXH MANIF | T=2.2 |
| 033(B). | 1141490420 | [18] | WASHER; EXH MANIF | T=5.5 |
| 034. | 8943964060 | [18] | COLLAR; DIST,EXH MANIF | L=43 |
| 034. | 1141492630 | [18] | COLLAR; DIST,EXH MANIF | L=47 |
| 047. | 1141419380 | [1] | MANIFOLD; EXH,CENTER | |
| 049(A). | 1093021671 | [4] | STUD; CENTER MANIF TO TURBOCHARGER | M10X25 L=47 |
| 049(A). | 8973780710 | [4] | STUD; CENTER MANIF TO TURBOCHARGER | M10X25 L=47 |
| 058. | 9041108200 | [6] | STUD; HEAT PROTECTOR | A M8X20 L=32 |
| 058. | 0410108200 | [6] | STUD; HEAT PROTECTOR | M8X20 L=32 |
| 155(A). | 1141492010 | [2] | RING; SEAL,EXH MANIF | |
| 155(B). | 9141490261 | [4] | RING; SEAL,EXH MANIF | |
